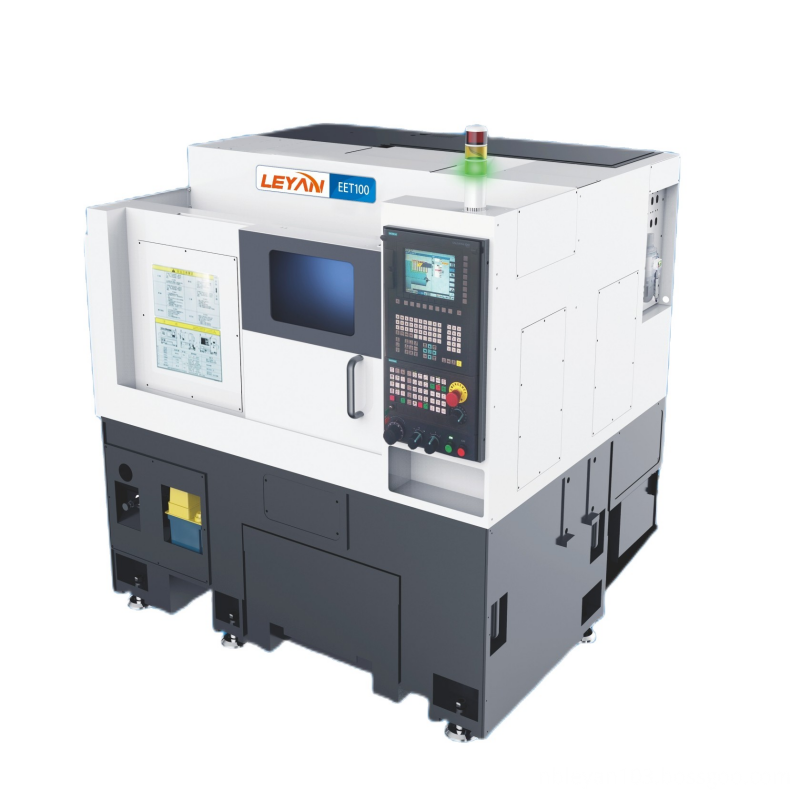

CNC Lathe machine tools, short for computer numerical control machine tools, are Automatic Lathe machines equipped with a program control system. The control system can logically process the program using control codes or other symbolic instructions and decode them into coded numbers through an information carrier to operate the CNC Auto Lathe device.
Specification：
| Project | SPECIFICATIONS | UNIT | EET100-260 |
| Capacity | Max. swing | mm | 450 |
| Max. turning diameter | mm | 190 | |
| The distance between the end face of the spindle turret end faces | mm | 108-338mm | |
| Max. turning length | mm | 220 | |
| Spindle | Spindle motor power | kw | 11 |
| Spindle structure | - | Electric spindle | |
| Type of spindle nose | - | A2-5 | |
| Spindle speed range | rpm | 5500 | |
| Chuck | in | 6 | |
| Through spindle hole diameter | mm | φ56 | |
| Bar capacity | mm | φ45 | |
| C axis(interpolation linkage axis)indexing | ° | - | |
| Feedrate | X axis | mm | 105 |
| Z axis | mm | 230 | |
| X axis rapid traverse | m/min | 30 | |
| Z axis rapid traverse | m/min | 36 | |
| Turret | Dota form | - | Servo Dota |
| Number of tool stations | ea | 8 | |
| Turret indexing time(180 deg)sec | sec/step | 0.2 | |
| Shank height for square tool | mm | 20 | |
| Shank diameter for boring bar | mm | φ32 | |
| Milling shaft power | kw | - | |
| Milling shaft speed | rpm | - | |
| Tailstock | Form | - | - |
| Taper hole form | - | - | |
| Quill stroke | mm | - | |
| Tailstock movement | m/min | - | |
| Coolant system | Tank capacity | L | 200 |
| Pump motor | W | 750 | |
| Pump capacity | m³/h | 1.5～7 | |
| Pump pressure | m | 19～38 | |
| Power supply | Power supply | KVA | 27 |
| Power requirements | V | 3φ380V±10% | |
| Size and weight | Floor area(without chip conyeyor) | mm | 1790(L)×2050(W)×1645(H) |
| Footprint（back-out chip conveyor） | mm | 1790(L)×3890(W)×1645(H) | |
| Floor area(side out chip conveyor) | mm | - | |
| Mass of machine | kg | 2800 | |
| Miscellaneous | Ambient temperature | ℃ | 0～40 |
| Relative humidity | - | ≤85% |
| Product | Specification | Brand | Place of origin |
| System | SYNTEC 22TA | Siemens | Germany |
| Spindle motor | (7/11kw) | Fisch | Italy |
| X-axis motor | 1.5kw | Siemens | Germany |
| Z-axis motor | 1.5kw | Siemens | Germany |
| Turret motor | 1.1kw | Siemens | Germany |
| Spindle Bearing | NN3018 (P4 ) | NSK | Japan |
| Spindle Bearing | N1014 (P4 ) | NSK | Japan |
| Spindle Bearing | 90BAR (P4 ) | NSK | Japan |
| X-Guide way | HGH30HC (P ) | HIWIN | TAI WAN |
| Z-Guide way | HGH30HA (P ) | HIWIN | TAI WAN |
| X-Ball screw | R28-10 (C3 ) | HIWIN | TAI WAN |
| Z-Ball screw | R32-12 (C3 ) | HIWIN | TAI WAN |
| X-Bearing | 20TAC (PN7B ) | NSK | Japan |
| Z-Bearing | 25TAC (PN7B ) | NSK | Japan |
| Hydraulic chuck | HC-06A5 | SAMCHULLY | South Korea |
| Hydraulic cylinder | Y1020R | SAMCHULLY | South Korea |
| Cooling water pump | CDLK4-40/4 | CNP | China |
| Hydraulic system | NSP-20-15 | NACHI | Japan |
| Chip remover | / | XIANG MAO | TAI WAN |
| Electrical component | / | Schneider | FRANCE |
| Nut | KMT | SKF | Sweden |
| Lube oil system | AMO- Ⅱ-150S/03LBⅢPM | LIUBIAN | China |
| Standard configuration | Optional configuration |
| SIEMENS | FANUC CNC Controller； |
| SYNTEC 220TB CNC controller |
If you are interested in the product, contact 2bvideo.com for more information for more information
