General Description

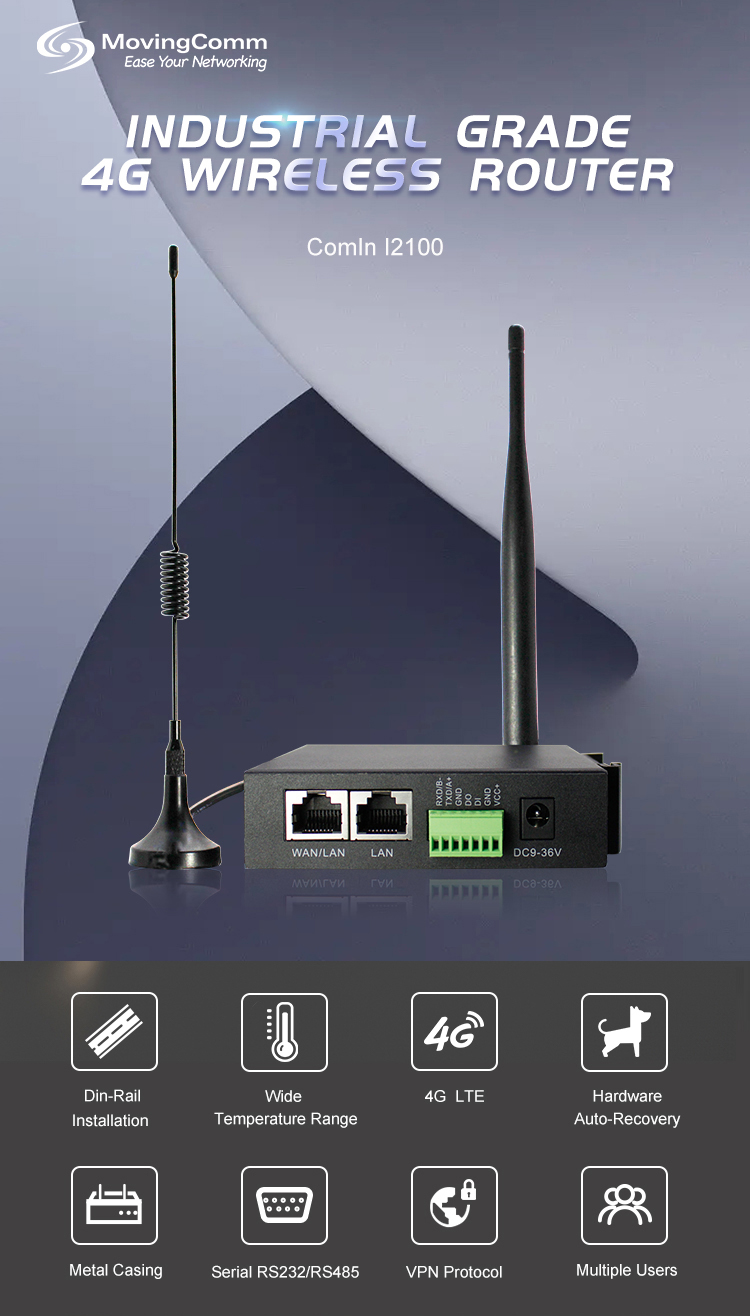

ComIn I2100 Industrial Router is a performance industrial grade 4G wireless router based on a 32bit MIPS network processor with high speed cat4 4G LTE, 2 Ethernet port (1 WAN 1 LAN) and full speed 2.4GHz Wi-Fi that comply with IEEE 802.11n standard. The ComIn I2100 4G Industrial Router is a product protected from a ruggedized metal casing to give an excellent isolation protection from interference in the surrounding environment. It is suitable to utilize in industrial control field applications. Besides it takes standard 12VDC power input, it has more capability and can have wider power input range from 9~36VDC as well as reverse-voltage protection.

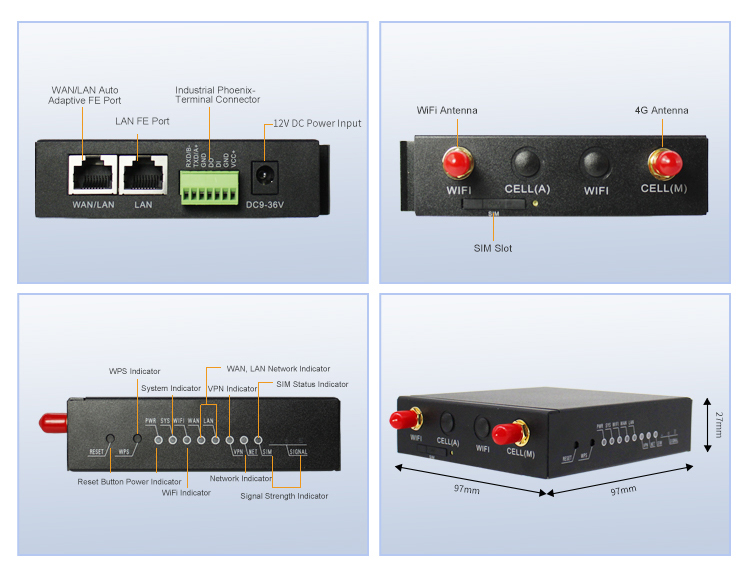

The ComIn I2100 IOT Gateway also provides an Ethernet WAN/LAN multiplexing RJ45 network port, an Ethernet LAN RJ45 network port, a set of industrial Phoenix terminal blocks (serial function and power supply function), a drawer type SIM/UIM card slot, which can have the serial port, Ethernet port, and Wi-Fi connected at the same time for enabling pass-through transmission.

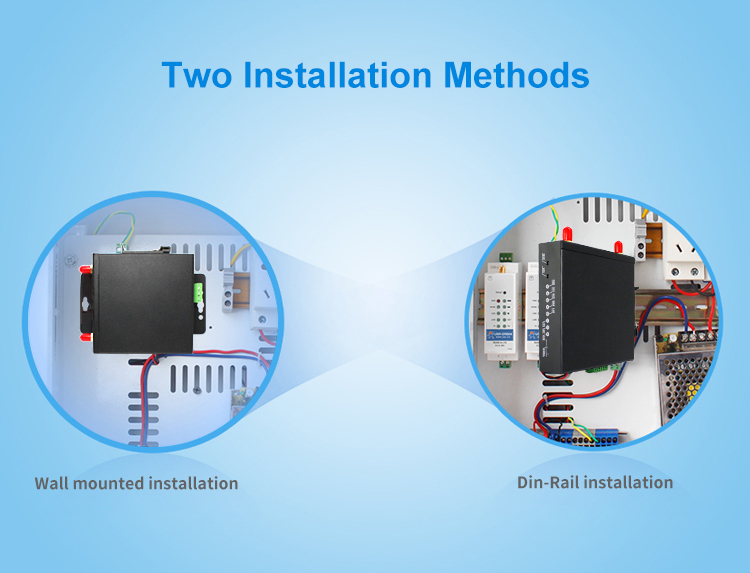

Two installation methods
Din-Rail installation and Wall mounted installation make the device installation easily in industrial application.

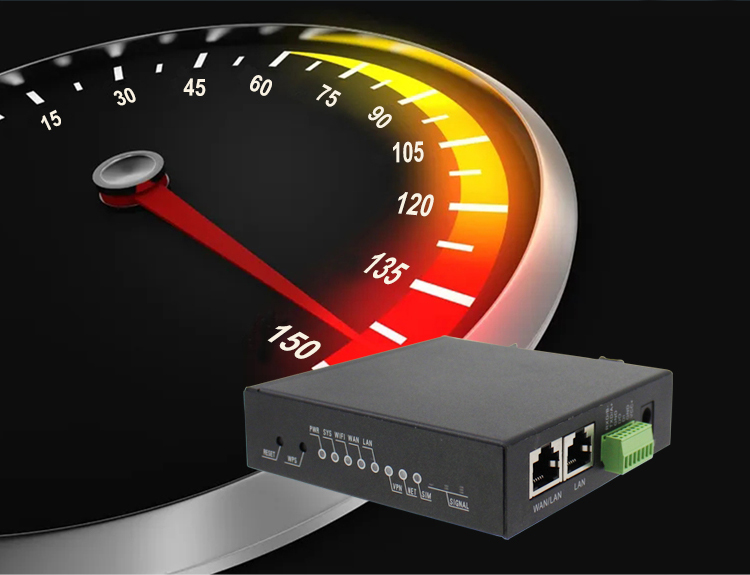

150Mbps WiFi Speed Access
Wi-Fi Data Speed up to 150Mbps, high stability for wireless connection.

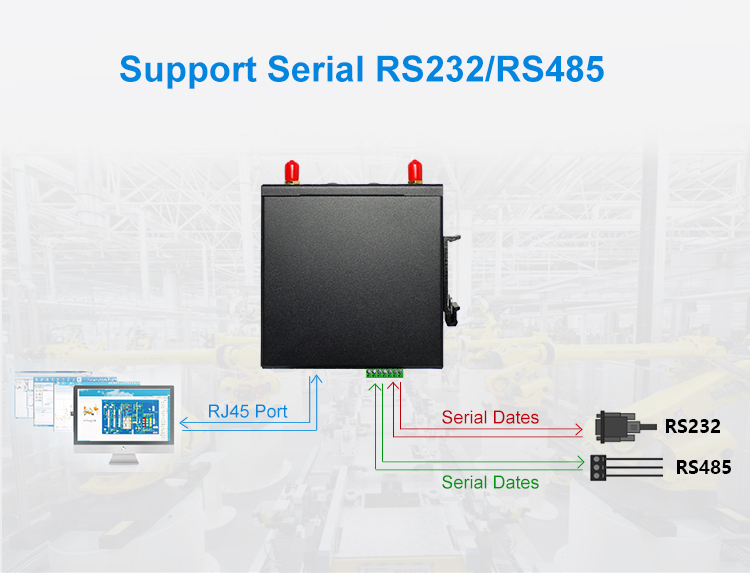

Support Serial RS232/RS485
Connect serial device and network server through 4G DTU, can carry out two-way pass-through transmission of data.
High Performance Chipest
High performance chipset provides greater stability and long term stable and smooth data communication.
Industrial Grade Temperature Design
Against High and Low Temperature，Adapt to harsh industrial environment.

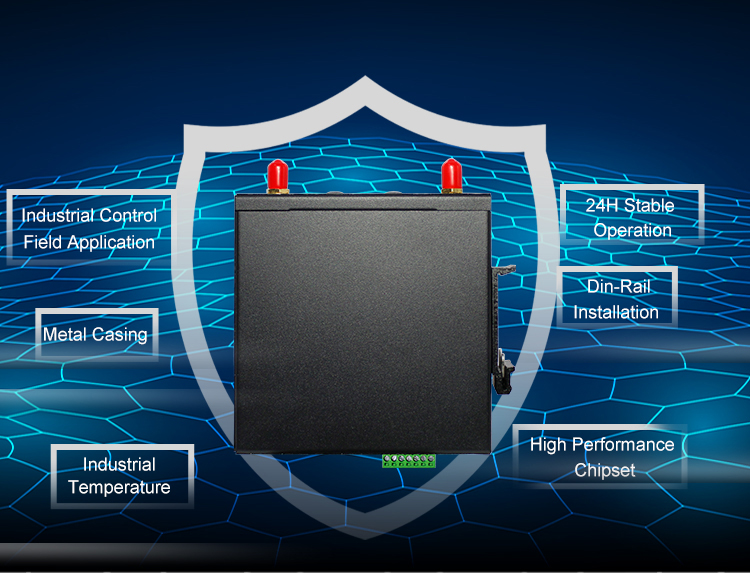

Industrial Grade Design
Multiple network security protection, suitable for a variety of industrial application scenarios, safer to use.

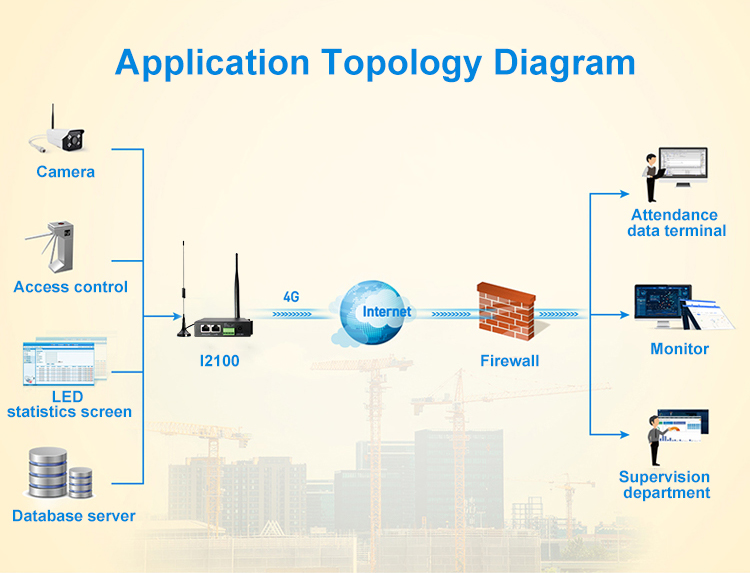

Application topology diagram
Hardware Auto-Recovery
Using watchdog intelligent anti-dropping technology, and automatic restart technology when the network is disconnected, when the system is found to be dead or disconnected, the watchdog will automatically send an instruction to the system to wake up the system, and it will run stably without any downtime for 24 hours.

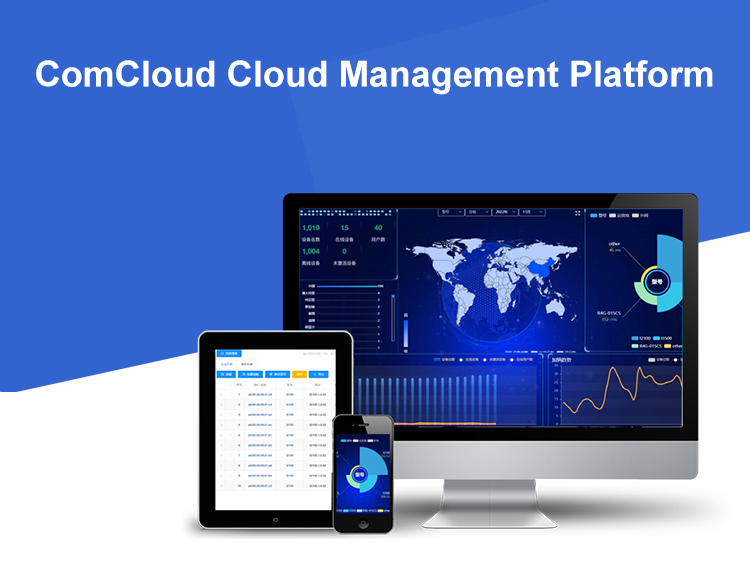

ComCloud Cloud Management Platform
we have launched the ComCloud cloud management platform for wireless devices, which can effectively carry out remote management of multiple devices, grasp the operating status of the devices in time,and know any device faults at the first time.
Suitable For Multiple Application Scenarios
Support remote management and networking applications.
|
CPU |
32-bit MIPS 24KEc Industrial Grade Chipset, Core Frequency 575/580MHz |
|
|
System Memory |
64MB / Optional 128MB DDR2 RAM |
|
|
Flash |
8MB / Optional 16MB SPI Flash |
|
|
Wi-Fi |
Wi-Fi 4 (802.11n) |
|
|
2.4GHz IEEE 802.11n MIMO up to 300Mbps |
||
|
Detachable High Gain WIFI Antennas |
||
|
Interfaces |
WAN |
1 x 10/100Mbps FE RJ45 Port, auto MDI/X, with 1.5KV magnetic isolation protection |
|
LAN |
1 x 10/100Mbps FE RJ45 Port, auto MDI/X, with 1.5KV magnetic isolation protection |
|
|
SERIAL |
2.54 Standard Phoenix Style terminal Block Connector, Support RS232/RS485 Serial Connection. Include DC power Input Pin DI, DO |
|
|
SIM |
1 x Drawer-Type SIM Card Holder, Support Standard 1.8V/3V USIM/SIM Card, 15KV ESD Protection |
|
|
Power |
Standard DC Power Input Jack, reverse-voltage protection and surge protection |
|
|
Reset |
1 x Reset Button |
|
|
WPS |
1 x WPS Button |
|
|
Antenna |
2 x Standard SMA Antenna Connector, 50 ohm (Cellular) |
|
|
|
2 x Standard RP-SMA Antenna Connector, 50 ohm (WiFi) |
|
|
Indicators |
PWR LED Indicator x 1 |
|
|
SYS LED Indicator x 1 |
||
|
WIFI LED Indicator x 1 |
||
|
WAN LED Indicator x 1 |
||
|
LAN LED Indicator x 1 |
||
|
VPN LED Indicator x 1 |
||
|
NET LED Indicator x 1 |
||
|
SIM Card Status LED Indicator x 1 |
||
|
CELLULAR Signal Strength LED Indicator x 3 |
||
|
EMC |
EN61000-4-2, Level4 |
|
|
EN61000-4-3, Level4 |
||
|
EN61000-4-4, Level4 |
||
|
EN61000-4-5, Level3 |
||
|
EN61000-4-6, Level4 |
||
|
EN61000-4-8, Horizontal/Vertical 400A/m (>Level 4) |
||
|
EN61000-4-12, Level4 |
||
|
Power Input |
Power Type |
12VDC/1A |
|
Power Range |
9~36VDC Wide Power Input |
|
|
Power Consumption |
<450mA (12V), Average 170mA@12V |
|
|
Hardware Watchdog |
Support Device Operation Self-Check Technology, Auto Recovery From Device Failure (Optional) |
|
|
Enclosure |
Ruggedized Metal Casing. The Casing and The System Are Safely Isolated, Especially Suitable for Industrial Control Field Applications. |
|
|
Product Dimensions |
97mm x 112mm x 24mm (Excluding Antenna and Mounting Sets) |
|
|
Weight |
Approx. 280g (Excluding Antenna and Mounting Sets) |
|
|
Environment |
Operating Temperature: -35°C to 75°C |
|
|
Storage Temperature: -40°C to 85°C |
||
|
Operating Humidity: 10% to 95% RH Non-condensing |
||
|
Storage Humidity: 5% to 95% RH Non-condensing |
||
|
Firmware |
Linux SDK |
|
