Product Category: Battery Holders丨Battery Mounts丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers丨Battery Clips 丨Battery Snaps丨SMD/SMT Coin Cell Battery Holders 丨Button Battery Holder Case Box Case
Coin Battery Holder・Coin Cell Holder・Button Cell Holder (CR498・ CR503・CR1058・CR1220・CR1225・CR1620・CR1632・CR2016・CR2032・CR2330 ・CR2430・CR2450・CR2477)

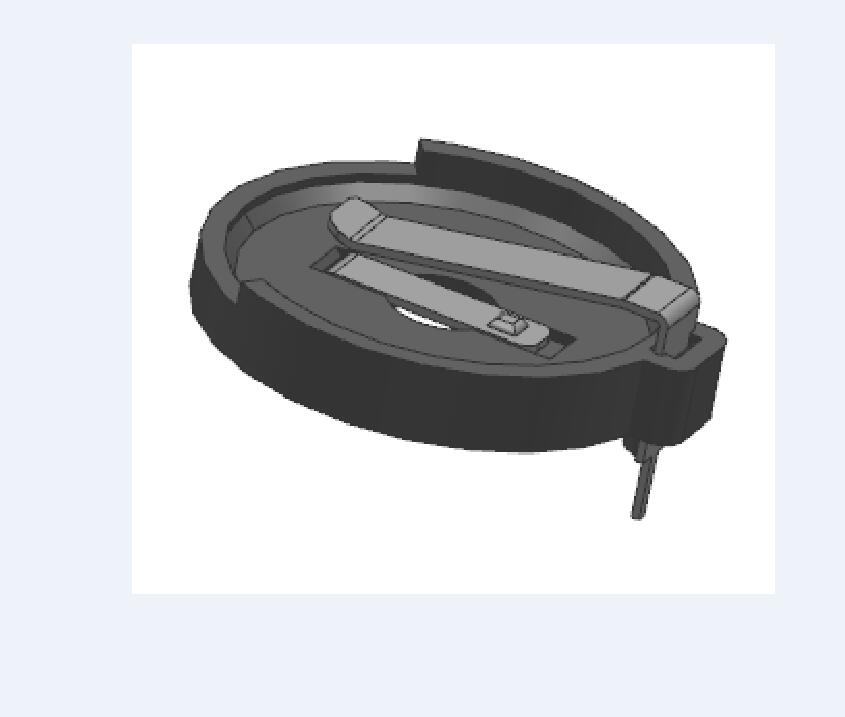

Coin Cell Holders for CR2450D/CR2450 lithium coin cell Holders DIP/Thru Hole Mount (THM) /with PC Pin
Specifications and Features:
No. of Cells: 1 or 2
Battery Reference: CR2450, DL2450
Cell Size: 24mm
Material: PBT, UL 94V-0
Mounting: THM
Type: Holder
Battery Reference: 2450 (3 Volts)
1. Material:
a. Housing: PA BK VO GF30.15
b. Contact: C2680
(Surface Plating: Sn 10u")

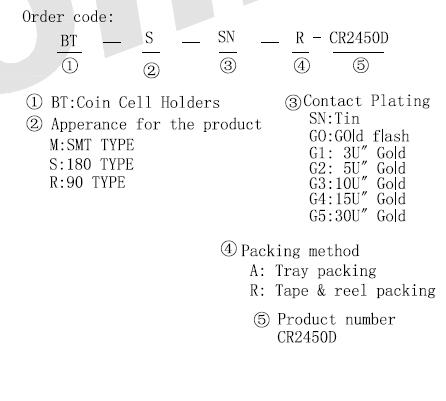

See Ordering Information
2. Electric:
a. Contact Resistiance: 30 Milliohms Max
b. Insulation Resistance: 1000 MEGA OHMS Min
c. Dielectric Voltage: 500V AC One Sea Level
d. Operating Temperature: -55°To 105°

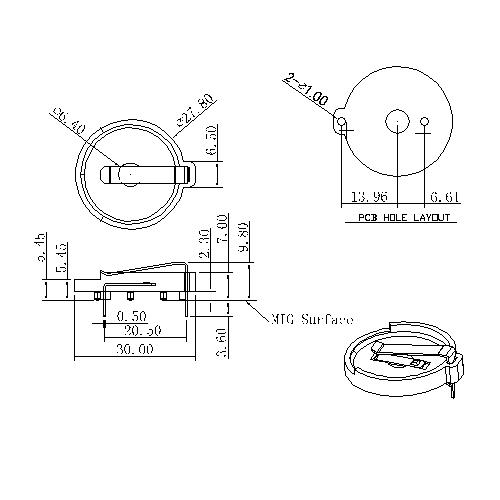

Length: 30.0mm
Width: 27.8mm
Height: 9.8mm
Pin length: 3.6mm
Number 2 apperance for the product: 180° type, we also have SMT and 90° types, when you place order on us, please inform us the exact apperance type you want.
Number 3 contact plating: tin plate, we also have gold flash, when you place order on us, please tell us the exact contact plating way you want.
Number 4 packing method: tape & reel packing, we also have tray packing, when you place order on us, please inform us the exact packing way you want.
Number 5 product number: CR2450D
Types of battery holders
Once the correct size and mount style of battery holder has been chosen for your intended application and device, it’s also important to be aware of the different physical designs available for various battery holder types. In the section below, we’ll outline some of the more common versions.
Clip battery holders
A battery holder clip is a simple, economical choice for mounting batteries securely within a holder. They tend to consist of two metal arms, arranged in a loop with a small gap at the apex, through which the cells are pushed and subsequently held in place. Clip battery holders tend to be most often associated with common cylindrical batteries such as AA and AAA, but are also sold for securing C, D and 9V PP3 cells into position.
