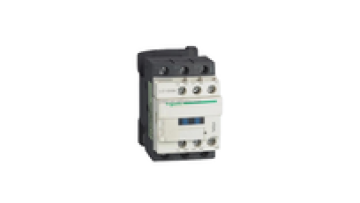

LC1D95 Contactor

4 year ago
99 0
Product details

Contactors up to 150 A for AC-3 (75 kW / 400 V) applications.

TeSys D contactors and reversing contactors are available from 9 A to 150 A (inductive motor), and from 20 A to 200 A (resistive loads) in 3-pole and 4-pole versions.

Model Rated Operational Current [Ie]
Motor Power
kW
Control Circuit Type Conventional Free Air Thermal Current [Ith]  Rated Breaking Capacity
Power Circuit Signalling Circuit
LC1D09M7 9A 2.2/4/5.5 AC at 50/60 Hz 25A 10A 250A
LC1D09BD 9A DC standard 25A 10A 250A
LC1D12M7 12A 3.7/5.5/7.5 AC at 50/60 Hz 25A 10A 250A
LC1D12BD 12A DC standard 25A 10A 250A
LC1D18M7 18A 4/7.5/9/10 AC at 50/60 Hz 32A 10A 300A
LC1D18BD 18A DC standard 32A 10A 300A
LC1D25M7 25A 5.5/11/15 AC at 50/60 Hz 40A 10A 450A
LC1D32BD 32A 7.5/15/18.5 DC standard 50A 10A 550A
LC1D38M7 38A 7.5/9/18.5 AC at 50/60 Hz 50A 10A 550A
LC1D40ABD 40A 9/11/18.5/22 DC standard 60A 10A 800A
LC1D50AM7 50A 11/15/22/30 AC at 50/60 Hz 80A 10A 900A
LC1D65ABD 65A 11/18.5/30/37 DC standard 80A 10A 1000A





















We Provide All Kinds of Tower Crane Spare Parts :

- Tower Crane Electric Parts : RCV/HRCV/OMD Block, Electric Cabinet, Inverter, Converter, etc.

- Tower Crane Steel Structure : Mast Section, Fixing Angle, Anchorage Frame, etc.

- Tower crane hoisting mechanism and spare parts : Hoisting Motor, Hoist Wire Rope, Guide Pulley, etc.

- Tower crane slewing mechanism and spare parts : Slewing Motor, Slewing Ring, Slewing Reducer, etc.

- Tower crane trolleying mechanism and spare parts :Trolleying Motor, Hook Pulley, etc.
