High Speed Roll-up Doors Automatic Door Operator Motor System
TECHNICAL INFORMATION:
|
Model |
Hofic200B |
Hofic500B |
Hofic700B |
||
|
Rated Output Power |
0.75KW |
1.5KW |
2.2KW |
||
|
Supply Voltage |
AC 220 V±10% |
||||
|
Speed Control |
Closed Loop Speed Contrlol |
||||
|
Position Control |
Closed Loop Position Control |
||||
|
Protective Function |
Over-current Protection, Over-voltage Protection, Under-voltage Protection, Overheating Protection and Overloading Protection |
||||
|
Installation Site |
Indoor, away from direct sunlight, dust, corrosive gas, oil and water vapor etc. |
||||
|
Operation Temperature |
-10℃~50℃ |
||||
|
Weight |
5.8Kg |
7.5Kg |
8.7Kg |
||
|
Installation Method |
Wall Mounted |
||||
|
Rated Output Power |
0.75KW |
1.5KW |
2.2KW |
|
Rated Speed |
2,000 rpm |
2,000 rpm |
1,500 rpm |
|
Rated Torque |
3.6Nm |
7.2Nm |
15Nm |
|
Heating |
<30℃ |
<30℃ |
<30℃ |
|
Working Temperature |
-35℃-50℃ |
-35℃-50℃ |
-35℃-50℃ |
|
Torque Management System |
Automatic Torque |
Automatic Torque |
Automatic Torque |
|
Maximum Operating Width |
<16 sq.meter |
<30 sq.meter |
<60 sq.meter |
|
Limit Mode |
Absolute Encoder |
Absolute Encoder |
Absolute Encoder |
|
Self Locking Mode |
Electro Mechanical Brake |
Electro Mechanical Brake |
Electro Mechanical Brake |
|
Manual Release |
Hand Crank |
Hand Crank |
Handle |
|
Weight |
4.9KG |
8.1Kg |
15.6Kg |
Notice:
Ø Before connecting the system to live wire place make sure the power supply is off.
Ø Please make sure the power voltage in the main circuit is the some as controller’s rated voltage. Also please make sure the ground terminal is properly and reliably connect to the ground wire.
Ø DO NOT touch output terminal directly. DO NOT shot circuit the output terminal and out shell.
Ø After the power supply is cut, and before the LCD is off, there still high voltage electricity in the circuit, so DO NOT touch the internal wiring and electronic components.
Ø Internal wiring and electronic components are very sensitivity to static electricity, so DO NOT let any object contact the internal wiring and electronic components of motor driver and the main circuit of the touch control panel.

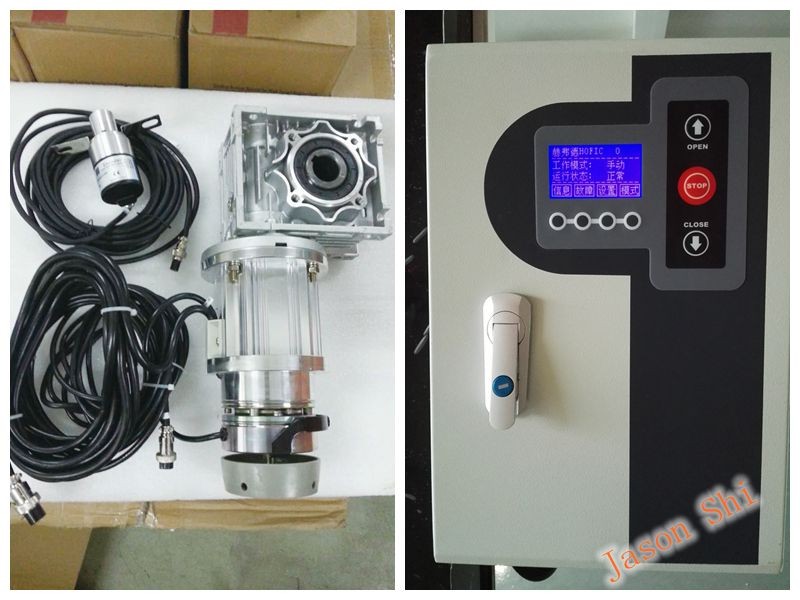

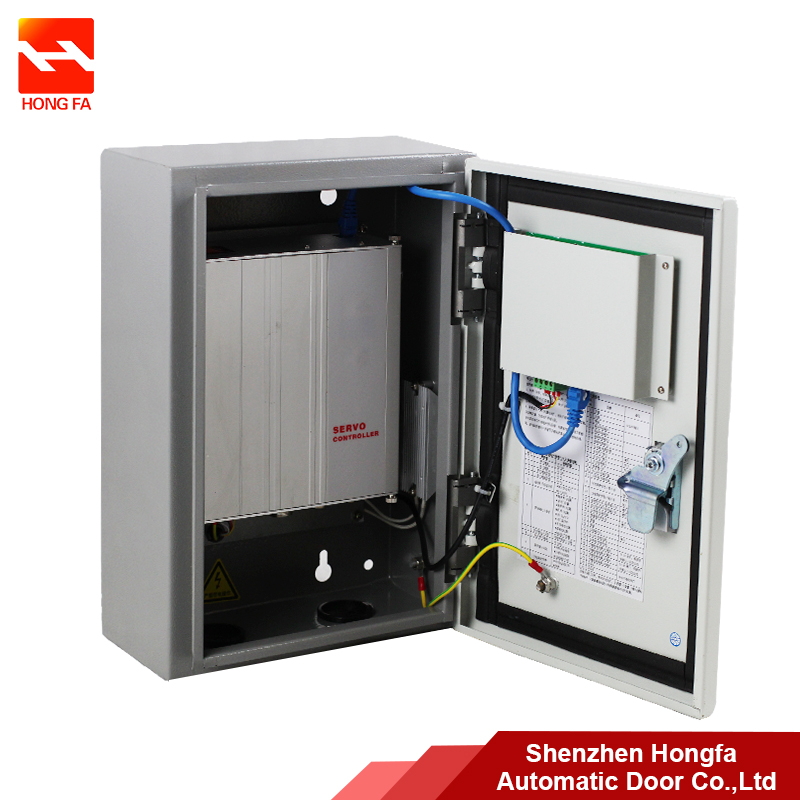

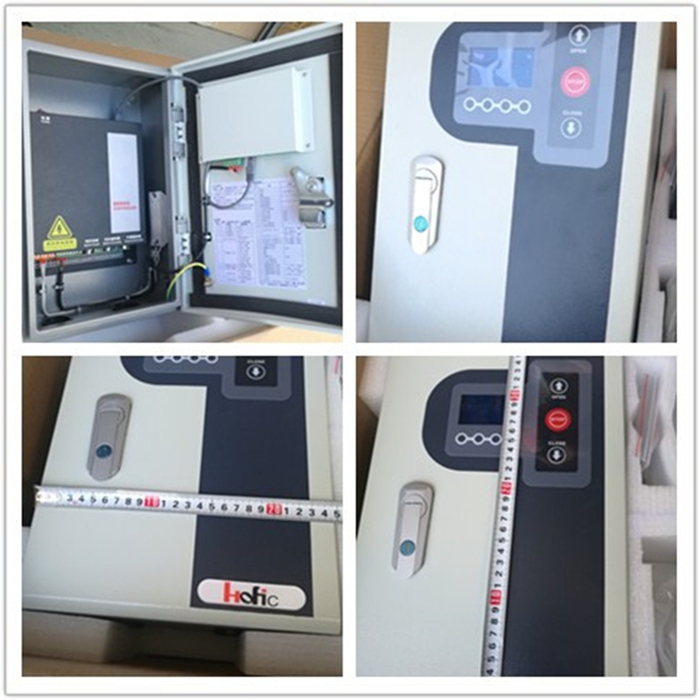

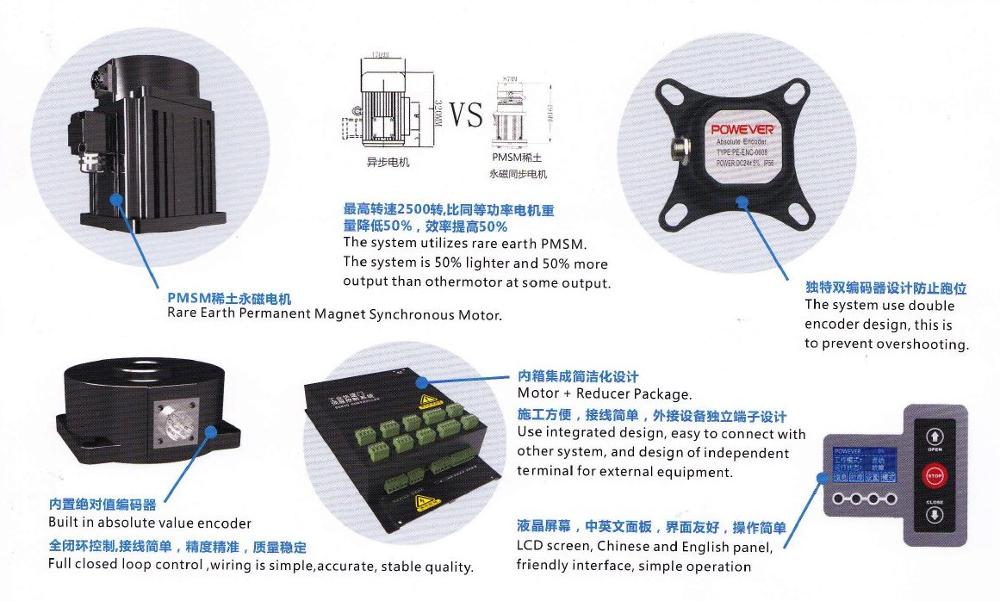

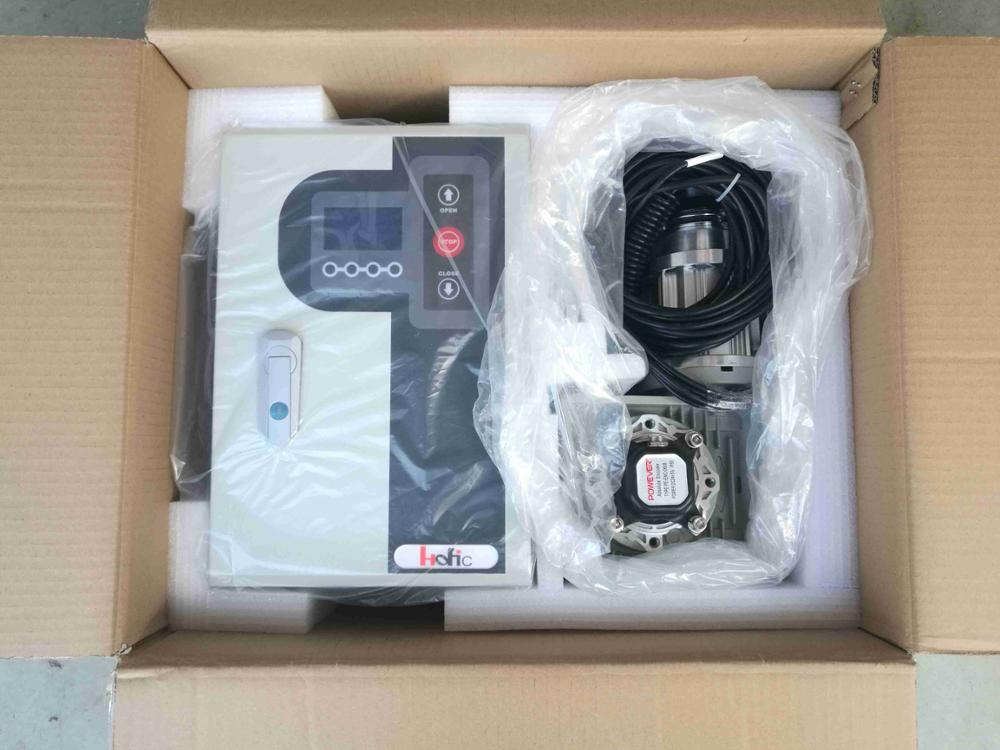

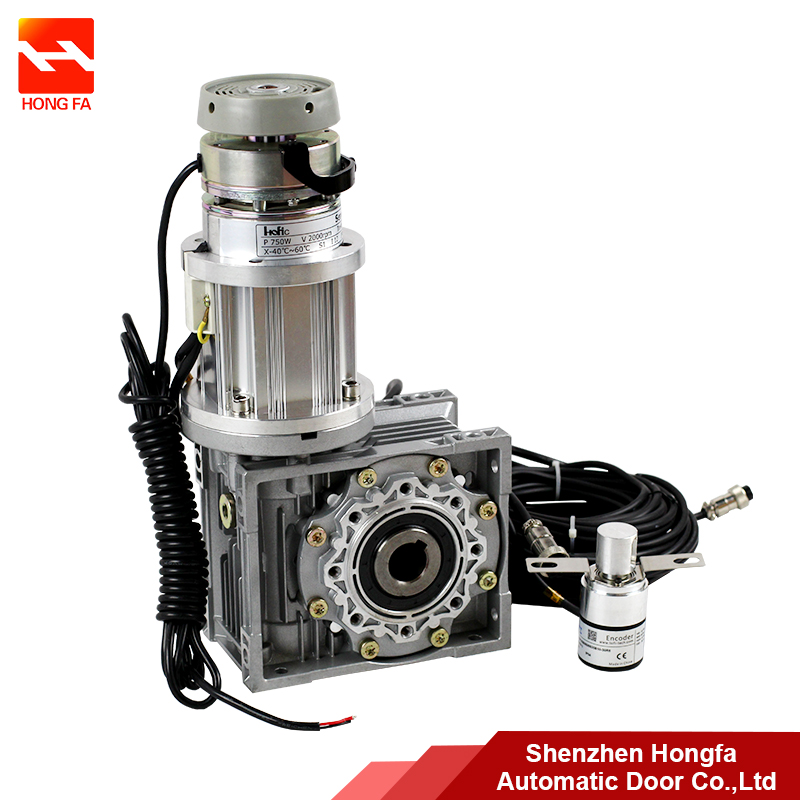

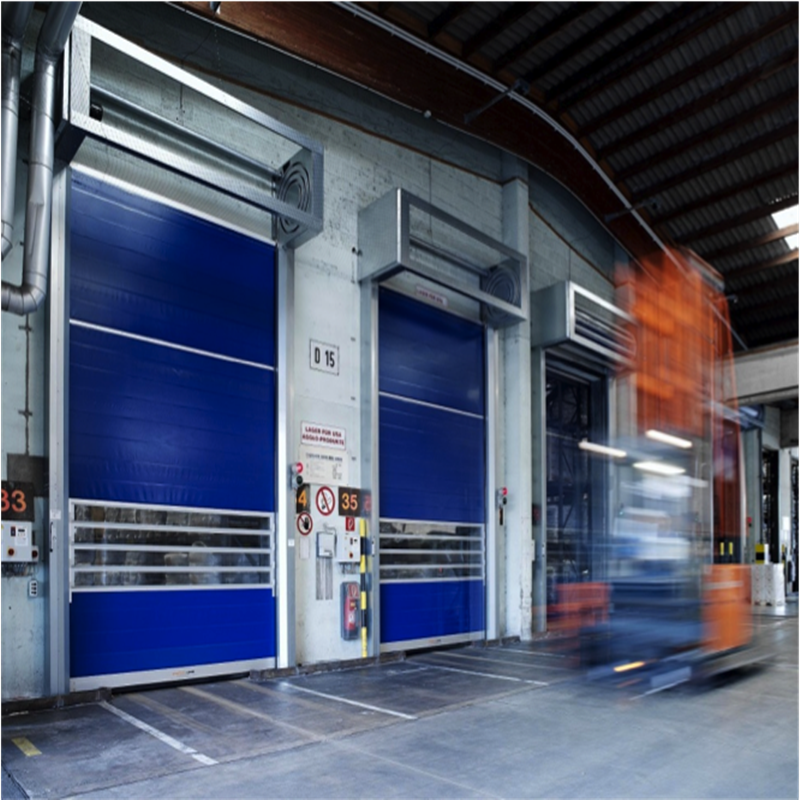

Products Pictures:
