GR2 is known as the "workhorse" of the commercial pure titanium industry due to its versatility and availability. It has many of the same qualities as GR1, but with higher strength. Both are equally resistant to spoilage. GR2 has good weldability, strength, ductility and formability, which makes GR2 titanium rods and sheets the first choice for many application areas: building Generation Medical industry Carbon gas processing Marine industry Exhaust pipe cover Body skin Desalination Chemical processing Amino acid manufacturing.

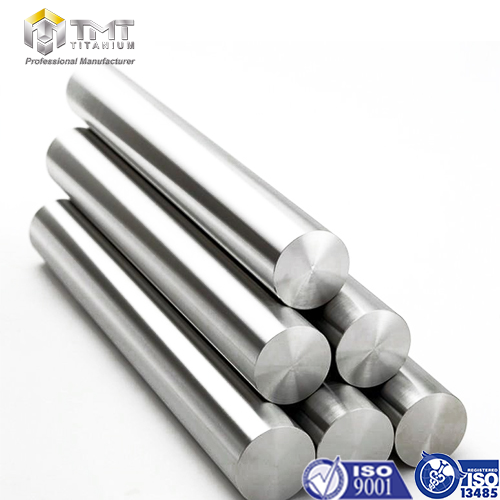

Our Gr2 titanium bars is one of ouradvantageous products,which moderate strength unalloyed Ti with exCellent weldability,coid fomability,and fabricability.It can be applied to medical materials.
Standard
Composition
(ASTM Grade)
[Common Name]
Chemical Composition
Physical Properties:
ISO5832-2
ASTM F67
Gr.1,
UNS R50250,
3.7025
Pure Titanium (≥99.0% Ti)
Density: 4.51 g/cm³
Tensile strength: 240 MPa
Yield strength: 170 MPa
Elongation: 24%
Gr.2,
UNS R50400,
3.7035
Pure Titanium (≥99.0% Ti)
Density: 4.51 g/cm³
Tensile strength: 345 MPa
Yield strength: 275 MPa
Elongation: 20%
Gr.3,
UNS R50550,
3.7055
Pure Titanium (≥99.0% Ti)
Density: 4.51 g/cm³
Tensile strength: 450 MPa
Yield strength: 380 MPa
Elongation: 18%
Gr.4,
UNS R50700,
3.7065
Pure Titanium (≥99.0% Ti)
Density: 4.51 g/cm³
Tensile strength: 550 MPa
Yield strength: 483 MPa
Elongation: 15%
ASTM F67 Grade 1-4:
· Biocompatibility: All grades of ASTM F67 titanium are biocompatible and widely used in medical implants, such as dental implants and orthopedic implants.
· Corrosion resistance: All grades of ASTM F67 titanium have good corrosion resistance, which is important for applications.
· Low modulus: ASTM F67 titanium has a lower modulus of elasticity compared to other medical implant materials, which can help reduce stress shielding and improve long-term implant performance.
· Cost: ASTM F67 titanium is generally more cost-effective than other medical implant materials, such as cobalt-chromium alloys and ceramic materials.
In terms of strength, the order of increasing strength for the ASTM F67 Grade 1-4 titanium alloys is as follows:
ASTM F67 Grade 1 < Grade 2 < Grade 3 < Grade 4
So, ASTM F67 Grade 4 is the strongest among the four grades, followed by Grade 3, Grade 2, and Grade 1, respectively.
However, it's important to note that the differences in strength between these grades are relatively small and may not be significant for certain applications.
It's also worth noting that Ti-6Al-4V Eli, which is a different titanium alloy, has significantly higher strength than any of the ASTM F67 grades. So, if you require high strength in your application, Ti-6Al-4V Eli might be a better choice.
