Summary

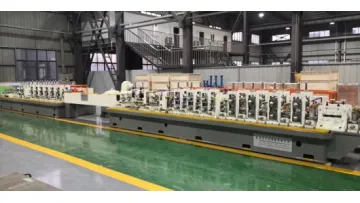

16B portal precision high-frequency straight seam steel strip welded pipe making machine unit, is specialized equipment to produce small pore diameter high frequency straight seam welded pipe for refrigeration industry withΦ7.5-Φ25mm and wall thickness of δ0.3-1.0mm. Through design optimization, best materials choice, and accurately fabrication, the whole set of machine unit can reach same precision level as the foreign advanced ones. This machine unit configuration starts from decoiler and ends by winding up. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted accordingly

Applicable material:

1 )Hot rolling or cold rolling strip steel
2) 0.002∽0.08% SPCE, SPCD, St14,08AL etc

Material: Low carbon content steel strip and low alloy steel strip with brand-name of SPCE, SPCD, St14, 08AL and so on of 0.002~0.08% carbon content.

4) The thickness of steel strip: 0.3-1.0mm
5) The width of steel strip: 23-78mm
6) I.D. of steel coil: Φ350-Φ450mm
7) O.D. of steel coil: Φ1400mm

2: Our pipe production line installed in the world
My company have successfully supplied world-class products and service to over 30 countries and areas around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, the Philippines, Pakistan, kazakhstan, Ethiopia, etc.
Flow Chart
Standard flow chart of 2018 new Welding Plant Stainless Steel Easy Operate Pipe Making Machine :

Step 1: Un-coiler

Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.

There are 3 types: pneumatic, hydraulic and manual.

Step 2: Shear & butt-welding

Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.

2 Types: Automatic & manual

Step 3: Vertical Accumulator

Function: storage strip to keep continue production for the machine to make metel tube.

Type: Vertical

Advantage: easy to operation, low investment. special for small size and light wall pipe

Disadvantage: less storage capacity, crease.

Step 4: Horizontal Accumulator

Function: storage strip to keep continue production for the Round Square Pipe Making Machine Production Line.
Type: Horizontal
Advantage: Large capacity.
Disadvantage: more expensive than vertical type

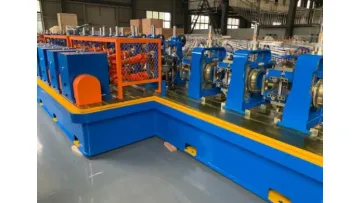

Step 5: Forming section

Function: forming the tube from strip

Advantage:

>Advanced forming technical

>One-stage molding platform

>Reliable quality gear box

>Siemens Beide motor

Step 6: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder

Our advantage: We choose the China best welder: Sanyi brand.
