The Introduction of Precision Fully Automatic Screw Fastening Machine Robot
Fully Automatic Locking Screw Machine, also known as Automatic Screw Locking Machine, automatic tightening screw machine, Automatic Screw Driving Machine, Auto Screwdriver Machine, etc.
According to the coordinate axis, the machine can be divided into Three Axis Automatic Feeding And Tightening Screw Machine, 4 Axis Automatic Screw Locking Machine Robot, 6-axis Automatic Locking Screw Machines, and multi-axis automatic screw feeding and tightening machine.
According to the structure, it is know as Robot Automatic Screw Locking Machine, Cantilever Fully Automatic Screw Locking Machine, Servo Automatic Screwdriver Feeder Screw Locking Machine, Gantry Robot Auto Screw Locking Machine.

All of the above machines are customized designed and produced by the tighten request.

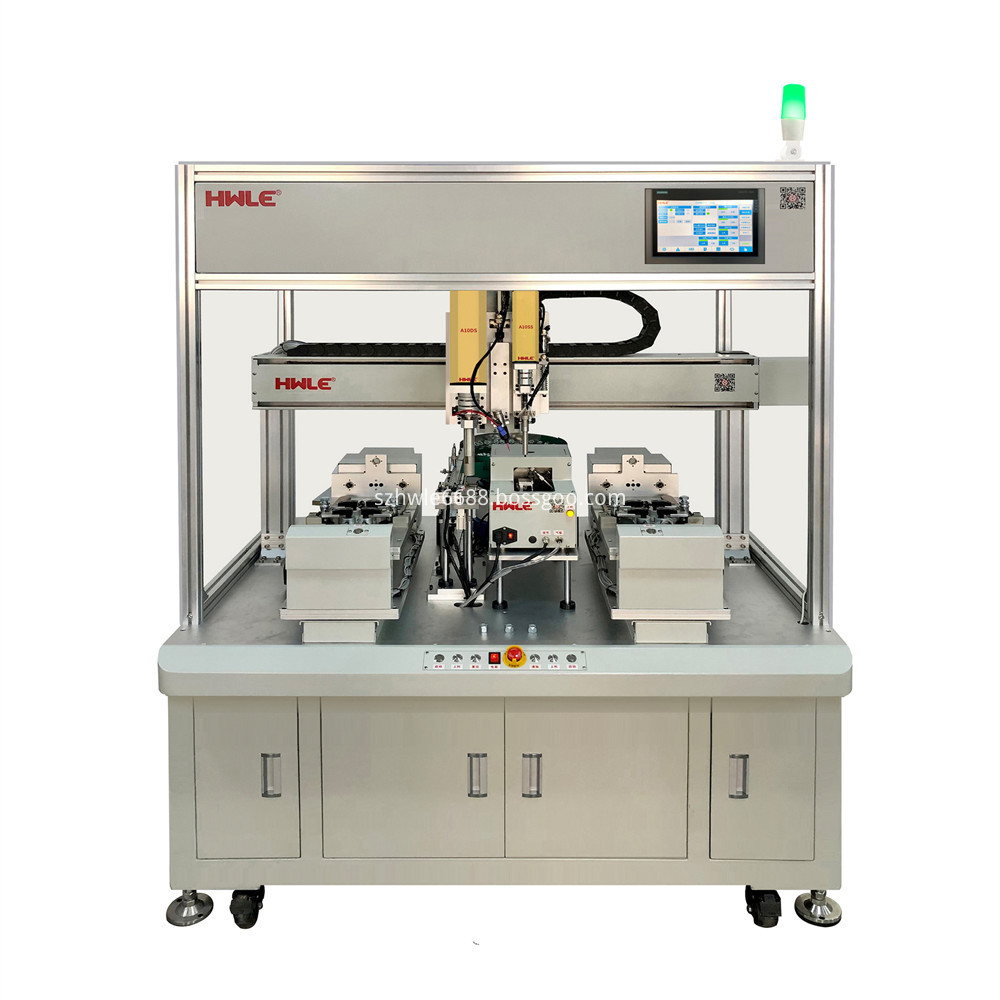

4 Axis Automatic Screw Locking Machine With Feeder Jpg

The Parameters Of Servo Automatic Locking Screw Machine
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gaskets, washers
Working pressure: 5.5±0.5kgf/cm2
Torque upper limit: 500kgf.cm (50N.m)
Running accuracy: 1000mm/sec ±0.02mm/axis
Control method: PLC+HMI Industrial computer +Display
Motion module: Servo motor +screw slide; linear motor+linear slide
Programming: Independent development of English operating software
Feeding method: Pneumatic blowing, pneumatic suction, blowing and suction
Stuck rate: ≤0.1%
Tightening speed: 1.5-2.5/screw
Screwdriver: Servo screwdriver, electric screwdriver
Effective stroke: According to product customization
Integrated function: Torque detection + depth control + MES function Sliding teeth + floating lock + leak lock alarm and prompt.

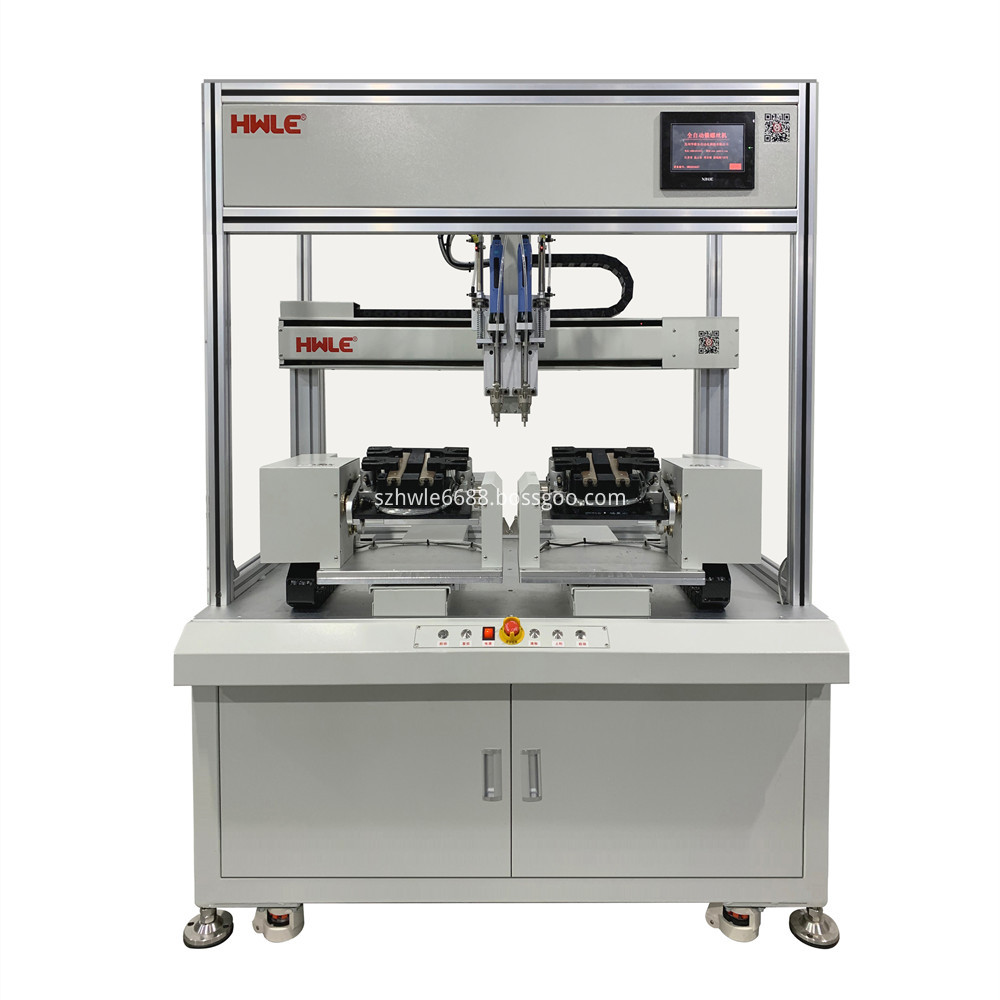

4 Axis Dual Screwdrivers Automatic Locking Screw Machine Jpg
