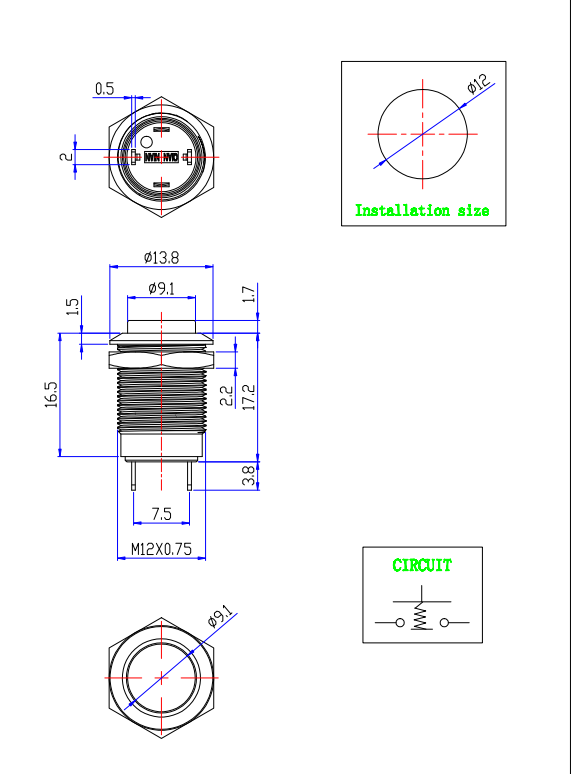

12mm IP65 Metal Push Button Switches
YC-12B3 Series Metal pushbutton Switches feature a long life expectancy, the Push Button Switch could reach 500,000 cycles. We have multiple actuator options could be choose and the actuator is normally made of stainless steel, nickel plated. The contact rating of our 12MM Metal Switches is 2A 36VDC, which could support bigger equipment.
SPECIFICATIONS:
RATING: 2A/36VDC
SWITCH COMBINATION: 1NO
OPERATION TYPE: Momentary/Self-locking
MECHANICAL LIFE: Momentary 500,000 cycles
Self-lock 500,000cycles
ELECTRICAL LIFE: 50,000 make-and-break cycles at full load
PANEL THICKNESS: 1-6mm
INGRESS PROTECTION: IP65,IK08/(Stainless)
Our Advantages
From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
