High Current Anti-Vandal Pushbutton Switches

3 year ago

62 0

YESWITCH ELECTRONICS CO., LTD.

 7 year year

Product details

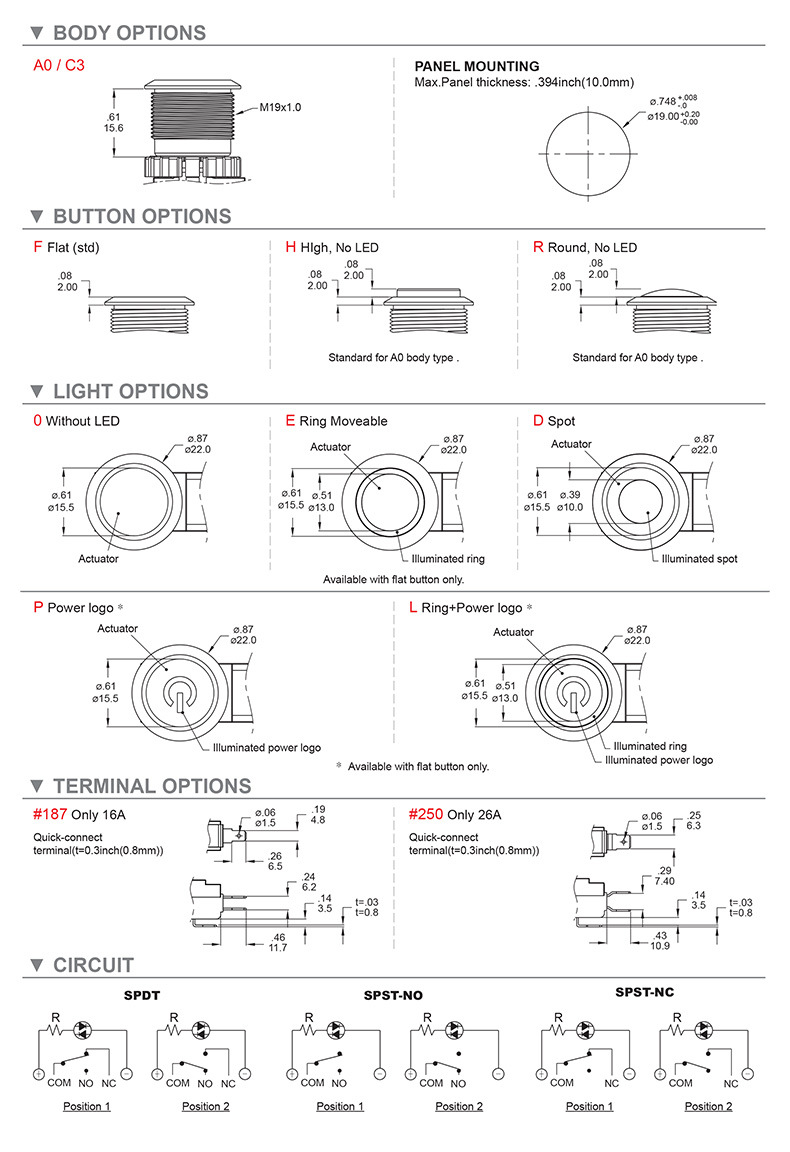

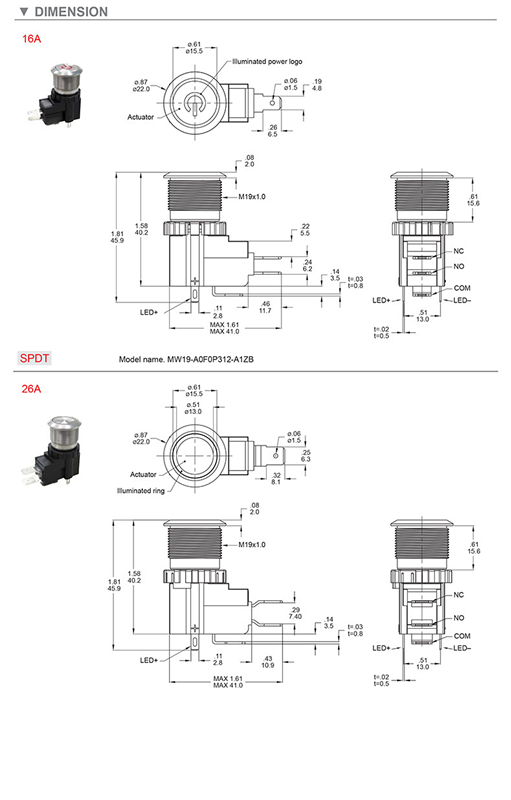

19MM 22MM 25MM IP67 Hight Current Metal Push Button Switches

Specification

RATING : 16A, 26A 250 / 125VAC.
CONTACT RESISTANCE : 50mΩ max.@1A, 12VDC (initial value)
INSULATION RESISTANCE : 100mΩ min. at 500VDC.
DIELECTRIC STRENGTH : 1, 500V RMS @ sea level.
OPERATION TEMPERATURE : -25°C to 85°C.
MECHANICAL LIFE : Momentary 1, 000, 000 cycles ; Latching 500, 000 cycles.
ELECTRICAL LIFE : 16A /125&250VAC 50, 000 CYCLES ; 26A /125&250VAC 10, 000 CYCLES.
OPERATION PRESSURE : 3.5± 1.5N.
TRAVEL : About 3.2mm.
INGRESS PROTECTION : IP67, IK08(Stainless).
TORQUE : 1~3Nm.

Materials

BUSHING : Stainless Steel / Aluminum alloy.
BASE : PBT(UL 94-V0), PC(UL 94-V2).
ACTUATOR : PC ; Stainless Steel / Aluminum alloy.
INNER ASSEMBLY : POM / PA66.
SPRING : Steel.
SEALING : Sillicone.
O-Ring : Sillicone.
TERMINAL: Brass ,Silver plated.
HEX NUT : Nickel plated brass.

Applications

Industrial control instruments, Medical equipment, Security monitoring equipment, Vehicle peripherals, Audio-visual equipment and Energy storage equipment.
