Conveyor System solution for pallet handling

2 year ago
40 0
Product details

Flat Belt Conveyor Design:

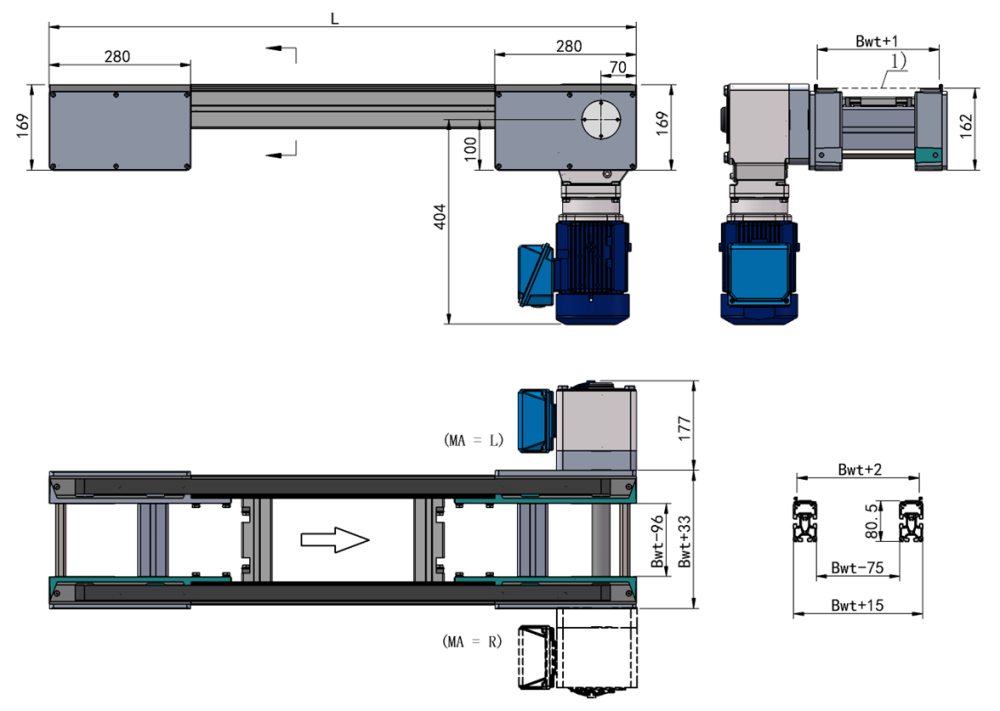

Flat Belt Conveyor Specification



Flat Belt Conveyor Specification:

Transfer Medium


Flat Belt

Pallet Width in transport direction /mm

Bwt

160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤1200)

Conveyor Length /mm

L

3000≤L≤25000

Nominal Speed /(m/min)

V

6, 9, 12, 15, 18

Max.Load /kg


250

Drive Method


3 phase motor

Motor Mounting Method

MA

L, R, M

Motor Mounting Direction


0°, 90°, 180°, 270°

Voltage

U

220/380/415 VAC

Frequency /Hz

f 50

Motor Connection

AT

Terminal Box



What is the feature of pallet type Flat Belt Conveyor?

Flat Belt Conveyor is a kind of pallet conveyor. Its tranfer medium is flat belt. The maximum allowed payload of Flat Belt Conveyor is 1kg/cm, and maximum allowed total loading for each single conveyor is 250kg. Flat Belt Conveyor maximum total length can up to 18 meters and drived by one motor. This can effectively reduce the unit cost. Besides, Vitrans Flat Belt Conveyor is ESD standard.

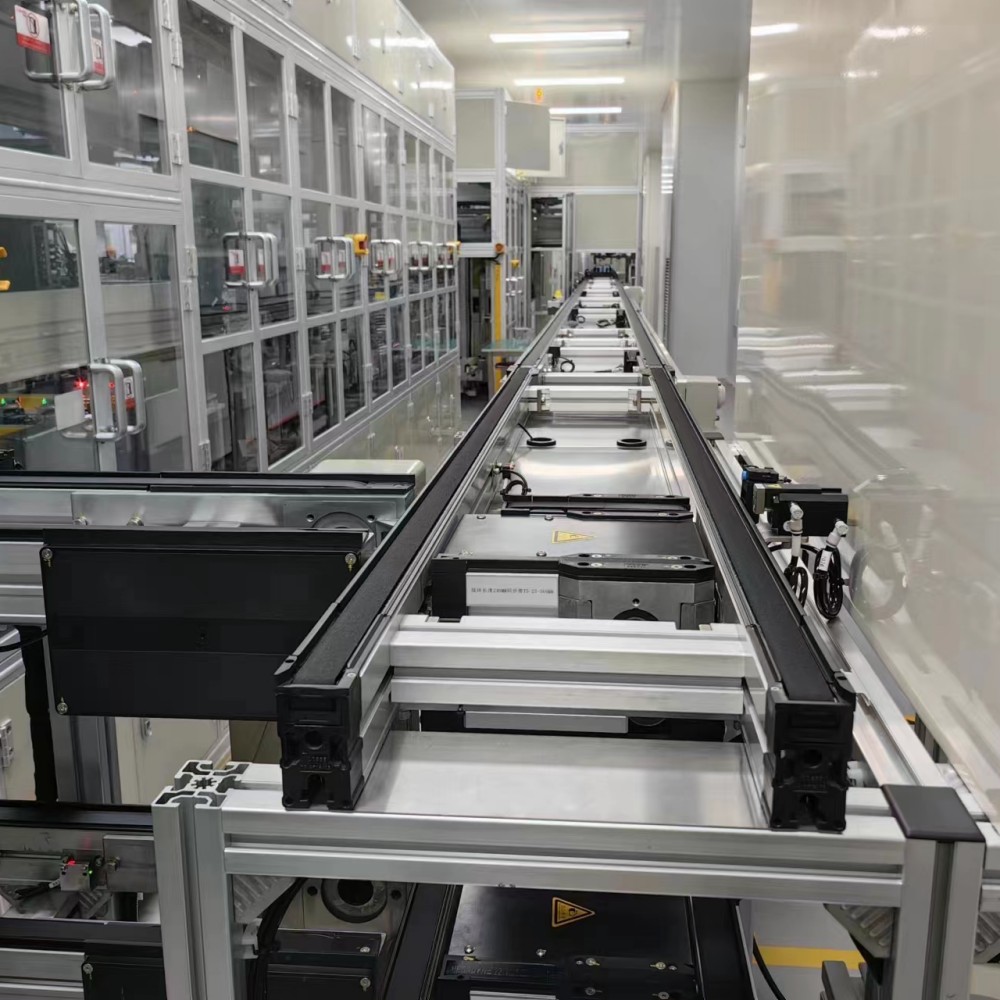

Belt Conveyor System In Automated Production Line



Flat Belt Conveyor is widely used in production line automation across various industries, such as motor manufacturing and assembly, new energy battery production and assembly, household appliance assembly, 3C electronics assembly and automotive components production. When it Compared to chain conveyors, Flat Belt Conveyor does not generate oil stains and operates with lower noise levels.

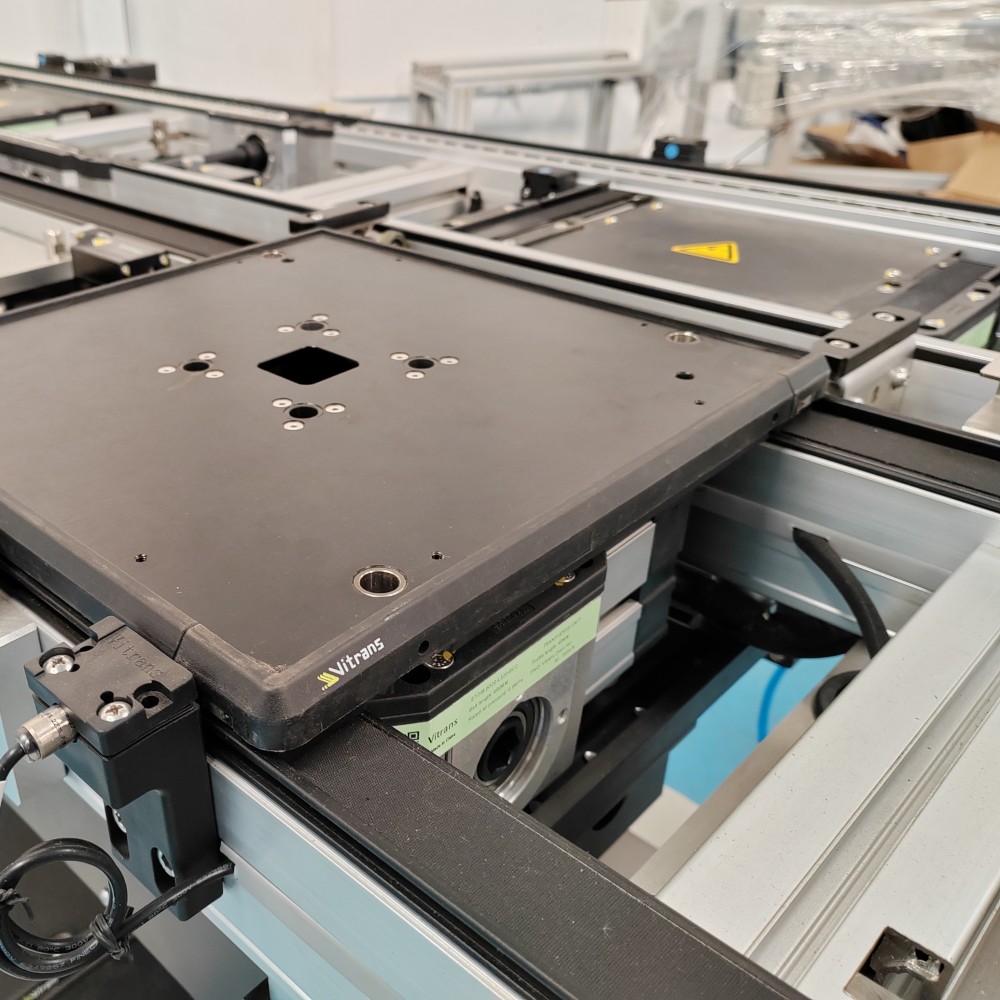

Belt Conveyor For Pallet Transfer Jpg
