P2.6 Indoor Rental LED Screen Facotry Effect

2 year ago
66 0
Product details



Product Introduction

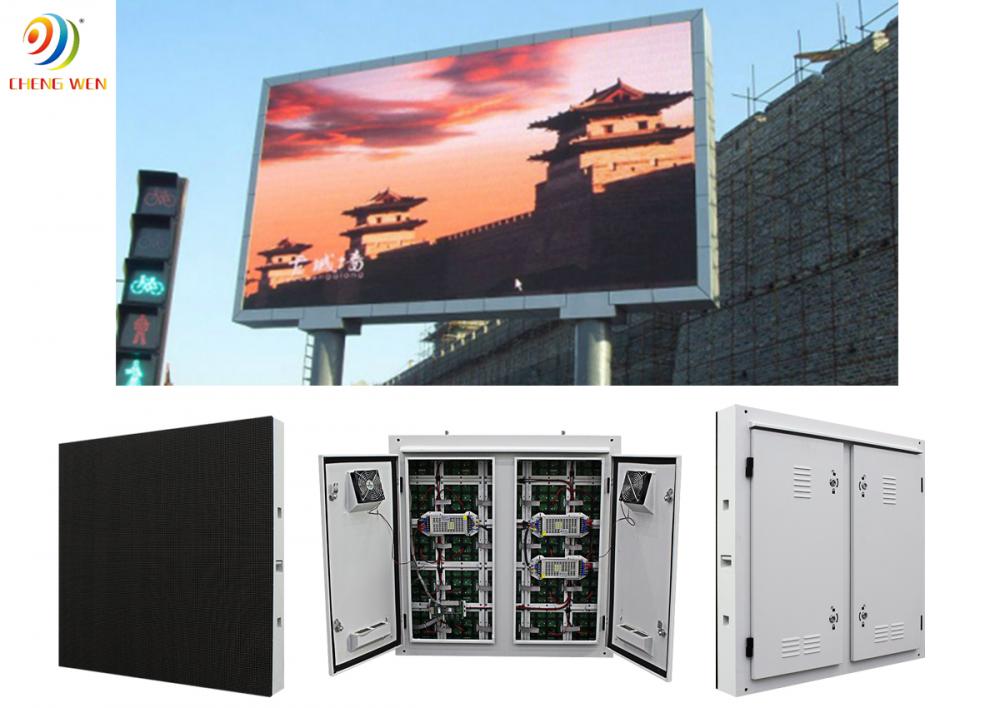

Outdoor Fixed Advertising Video Wall Fixed install outdoor advertising LED video walls are large electronic displays that are permanently installed in outdoor locations such as building facades, stadiums, and public squares. These LED video walls are designed to provide high-resolution, vibrant, and dynamic content to captivate viewers and promote advertising messages.


Outdoor Display Advertising The LED video walls are made up of modular panels that are connected together to form a larger display. These panels are made up of small LED lights that emit bright and vibrant colors. The panels are also weather-resistant and can withstand extreme temperatures, rain, and wind.

The content displayed on the LED video walls can be customized to suit the advertiser's needs. The screens can display static images, videos, and even live feeds. The content can be updated remotely, allowing advertisers to change their message as often as they need to.

In conclusion, fixed install outdoor advertising LED video walls are a powerful tool for businesses and advertisers to promote their messages to a large audience. They are durable, weather-resistant, and customizable, making them an effective and efficient way to capture the attention of potential customers.

Outdoor Iron White







Application

Fixed install outdoor advertising LED video walls are an effective way to capture the attention of a large audience. They are commonly used in outdoor events, concerts, and sporting events to display live feeds and advertisements. They are also used by businesses to promote their products and services to a wide audience.

Outdoor Fixed



Packing Solution

Packing way: Wooden box

Wooden Box Packing



Data Sheet

MAIN TECHNICAL PARAMETERS FOR OUTDOOR LED DISPLAY(PITCH3.076)

※ Module

(Technical parameters)

UNIT

( parameters values )

(Pixel pitch)

MM

3.076

(Panel size)

MM

L320*H160*T15

(Physical density)

/M2

105625

(Pixel configuration)

R/G/B

1,1,1

(Driving method)



Constant current 1/13scan

(LED Encapsulation)

SMD

1415

(Display resolution)

DOTS

104X52=5408

(Module weight)

KG

0.35

(Module port)



HUB-HD75E (2)

(Module working voltage)

VDC

5

(Module consumption )

W

26

※Panel

(Viewing angle)

Deg.

140 °

(Option distance)

M

3-30

(Driving device)



IC:2037S/2153

(Every square metre module)

PCS

19.53

(Maximum power)

W/ M2

510

(Frame Frequency)

HZ/S

≥60

(Refresh frequency)

HZ/S

≥1920/3840

(Equilibrium brightness)

CD/ M2

≥5500-6500mcd

(Working environment temperature)

0C

-20~60

(Working environment humidity)

RH

10%~70%

(Display working voltage)

VAC

AC47~63HZ,220V±15%/110V±15%

(Colour temperature)



6500K-11500K

(Gray scale/color)



≥16.7M color

(Input signal)



RF\ S-Video\ RGB etc

(Control system)



NovaStar  Linsn  Coloright

(Mean free error time)

HOURS

>5000

(Life)

HOURS

100000

(Lamp failure frequency)



<0.0001

(Antijam)



IEC801

(Safety)



GB4793

(Resist the electricity)



1500V last 1min No breakdown

(IP rating)



The back IP40,The front IP50

(Cabinet size)

mm

L640Xh640/960x960
