Product details

Product Introduction

The API 5L Line Pipes are used in various pipeline transportations systems such as in petroleum and natural gas industries. We offer these products in customized shapes and sizes to our clients. We cover both (American Petroleum Institute)API 5L Seamless and welded pipe. They are also quite appropriate for oil and gas, conveying water. API 5L Seamless Line Pipe standardizes transportation systems in the offshore structures, materials and equipment for petrochemical, natural gas and petroleum industries. API 5L schedule 40 Pipe is being made up from High Quality of Standard Raw Materials.

There are two basic PSL(Product Specifications Levels) of the technical requirements of these pipes which is known as API 5L PSL 1 and PSL 2 Pipe. We are Largest Trusted Line Pipe Suppliers in China. PSL 1 is a standard quality for line pipe, whereas API 5L psl2 Pipe holds additional mechanical and chemical properties, along with testing requirements. Grades covered up by this specifications are A25, A, B (and the subsequent "X" Grades), X42, X46, X52, X56, X60, X65, X70, X80. The two digit numbers that is followed by the letter "X", shows the Minimum Yield Strength of the pipe. We are leading API 5L Pipe Suppliers in China. We have comprehensive inventory of API 5L Seamless Line Pipe Suppliers in China in various sizes and Schedules.

Product Specification

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM, API 5L, API 5CT Japanese JIS,German DIN,Chinese GB,BS standard
Steel Grade	ASTM A53, A106, A210, A252, A333 etc; PSL1: A, B, x42, x46, x52, x56, x60, x65, x70 PSL2: B, x42, x46, x52, x56, x60, x65, x70, x80 JIS STPG42, G3454, G3456 etc; DIN St37, St42, St45, St52, DIN1626, DIN17175; GB 20#, Q345, 16Mn etc.
Special specifications	Available according to customer’s requirements and quantity.
End Shape	Beveled end , plain end, varnished, or adding plastic caps to protect the two ends as per customer’s requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	1.Widely used in the mechanical treatment field, petrochemical industry, transport and construction field 2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; 3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc 4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

API 5L line pipe (Seamless and welded pipe) of all grades have PSL1 and PSL2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.

PSL is the short name of product standard level. The product standard level of line pipe have PSL1 and PSL2, also we could say the quality standard divided in PSL1 and PSL2. PSL2 is higher than PSL1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or PSL2.

PSL2 is more strictly than PSL1 on the chemical properties, tensile strength, non-destructive test, and impact test.

API 5L PSL1 steel line pipe not required to do the impact test.

For API 5L PSL2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0℃. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.

For API 5L Grade X80 PSL2 line pipe, at 0℃ for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.

For API 5L PSL2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For PSL1 not required Non-destructive test, for PSL2 shall do the Non-destructive test for each single pipe.

Chemical composition and mechanical strength is also different between API 5L PSL1 line pipe and API 5L PSL2 line pipe. For the detailed specification as below. API 5L PSL2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in PSL2 tensile strength have maximum limits.

API 5L PSL 1 Chemical Composition and Mechanical Properties:

Standard	Steel grade		Chemical Compositions(%)				Mechanical Properties
			C(Max)	Mn(Max)	P(Max)	S(Max)	Tensile strength(Min)		Yield strength(Min)
			C(Max)	Mn(Max)	P(Max)	S(Max)	Psi X 1000	Mpa	Psi X 1000	Mpa
API 5L PIPE PSL 1	A25	CL I	0.21	0.60	0.030	0.030	45	310	25	172
	A25	CL II	0.21	0.60	0.030	0.030	45	310	25	172
	A		0.22	0.90	0.030	0.030	48	331	30	207
	B		0.26	1.20	0.030	0.030	60	414	35	241
	X42		0.26	1.30	0.030	0.030	60	414	42	290
	X46		0.26	1.40	0.030	0.030	63	434	46	317
	X52		0.26	1.40	0.030	0.030	66	455	52	359
	X56		0.26	1.40	0.030	0.030	71	490	56	386
	X60		0.26	1.40	0.030	0.030	75	517	60	414
	X65		0.26	1.45	0.030	0.030	77	531	65	448
	X70		0.26	1.65	0.030	0.030	82	565	70	483

API 5L PSL 2 Chemical Composition and Mechanical Properties:

Standard	Steel grade	Chemical Composition(%)				Mechanical Properties
		C	Mn	P	S	Tensile strength		Yield strength
		(Max)	(Max)	(Max)	(Max)	Psi X 1000	Mpa	Psi X 1000	Mpa
API 5L PIPE PSL 2	B	0.22	1.20	0.025	0.015	60-110	414-758	35-65	241-448
	X42	0.22	1.30	0.025	0.015	60-110	414-758	42-72	290-496
	X46	0.22	1.40	0.025	0.015	63-110	434-758	46-76	317-524
	X52	0.22	1.40	0.025	0.015	66-110	455-758	52-77	359-531
	X56	0.22	1.40	0.025	0.015	71-110	490-758	56-79	386-544
	X60	0.22	1.40	0.025	0.015	75-110	517-758	60-82	414-565
	X65	0.22	1.45	0.025	0.015	77-110	531-758	65-82	448-565
	X70	0.22	1.65	0.025	0.015	82-110	565-758	70-82	483-565
	X80	0.22	1.90	0.025	0.015	90-110	621-827	80-102	552-705

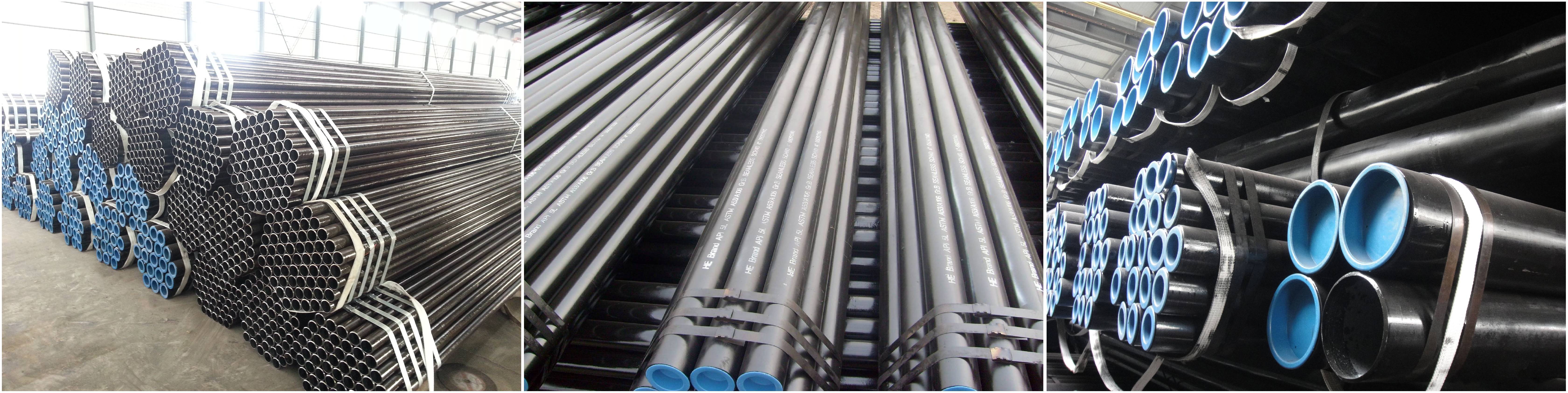

Product Display

Seamless Steel Pipe (3)

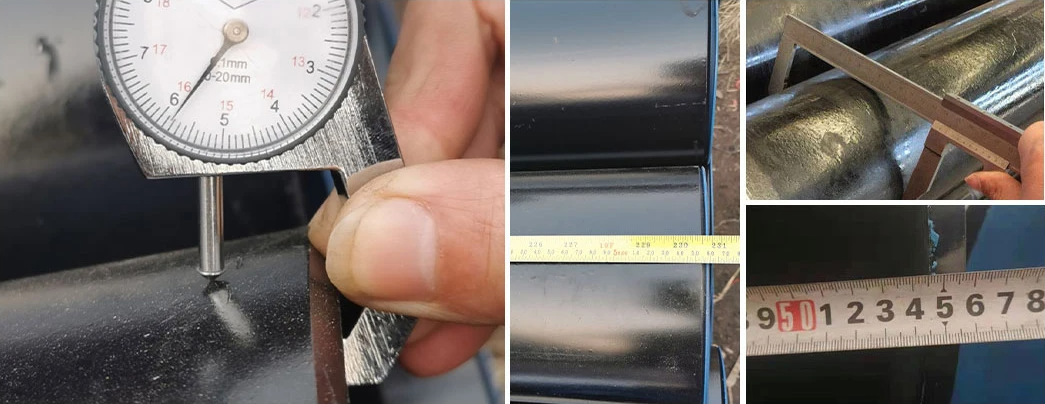

Quality inspection

API 5L

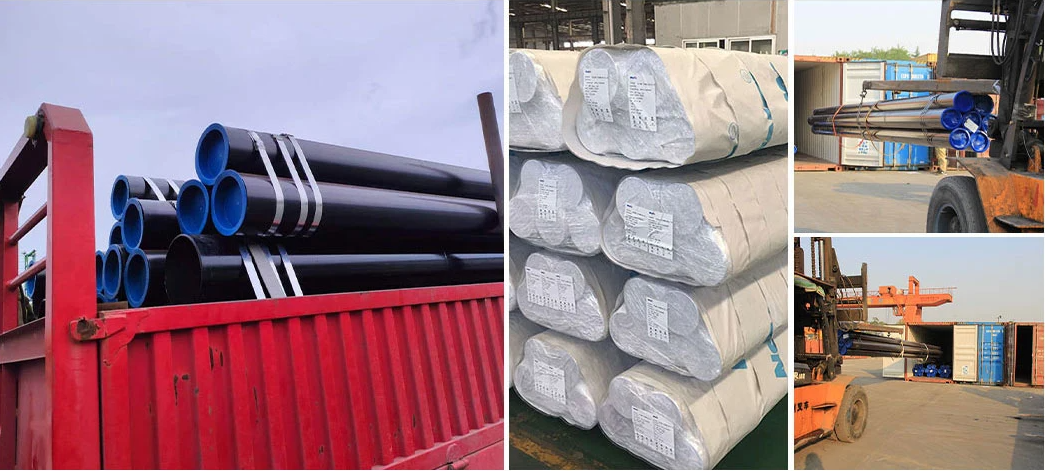

Packaging And Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
API 5L Pipe

FAQ

Q1:Can you send samples?

A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2:What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3:It's my first time to import steel products, can you help me with it?

A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4:What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

Q5:What about product prices information?

A:Prices various according to periodic price changes of raw materials.

Q6:What is your terms of payment ?

A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.

Q7:Do you provide custom made Products service?

A: Yes,if you have your own design , we can produce according to your specification and drawing.

Q8:What are the certifications for your products?

A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.

Q9:How long does your delivery time take?

A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.

Q10: How many countries you already exported to?

A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.

Q11:Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory.

Q12:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.

Q13:How to pack the products?

A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
