What are Stainless Steel Angles?

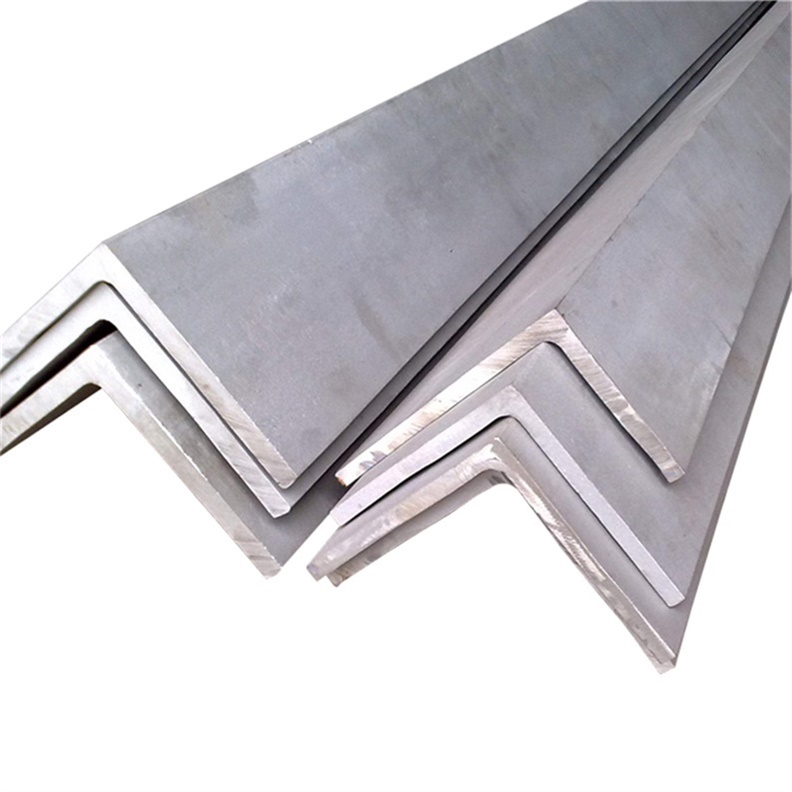

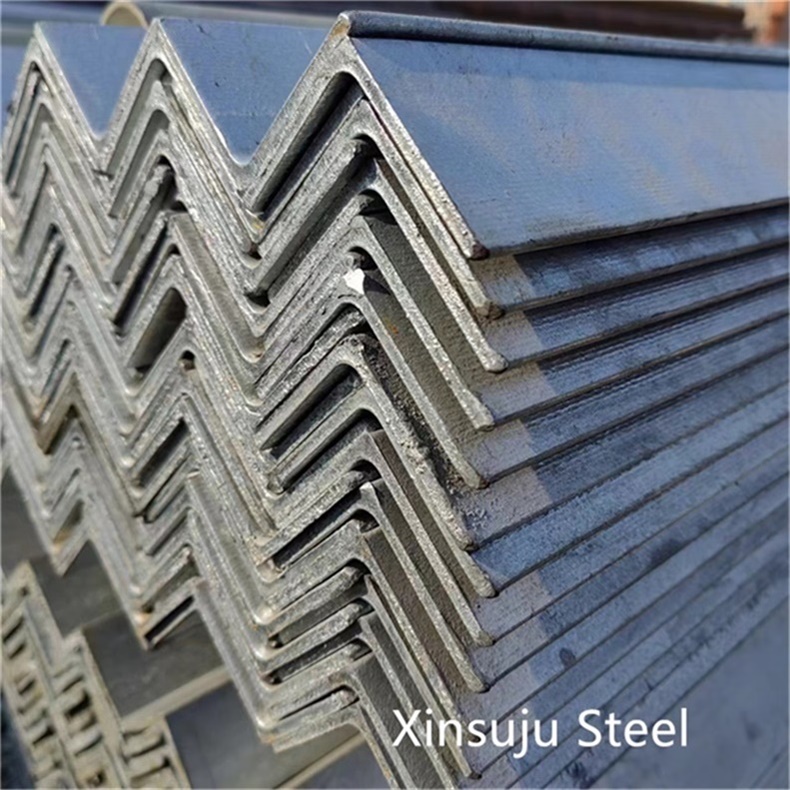

In the steel industry, hot-rolled and laser-fused stainless steel angles are common structural shapes with various uses. There are various types of SS angles. The angles are L-shaped and most of them are 90 degrees. Stainless Steel Angles are commonly used in building, bridges, machinery, framing, shelving, furniture, and other applications. These SS are incredibly strong and won't rust even after years of use. SS angles last a very long time without requiring replacement., unlike wooden angles.Stainless Steel, Stainless Steel Pipe, Stainless Steel Round Pipe,
These Stainless Steel Angles have good notch impact toughness down to temperatures below - 40 Degrees F. Rare earth metals in SS Angles improve adhesion and elasticity of the oxide scale, even under cyclic conditions. The design strength of Stainless Steel 304 Angles is significantly higher, often permitting lighter wall construction. These Stainless Steel 310S Angles provide superior strength and chloride stress corrosion cracking resistance for these stainless steels. The use of manganese ensures proper ferrite-austenite phase balance in Stainless Steel 316 Angles while allowing a reduction in nickel content.
With the addition of rare earth elements, Stainless Steel 316H Angles still performs well at temperatures up to 2000 Degree F (1093 Degree C), similar to other alloys. These Stainless Steel 316Ti Angles are a lean austenitic heat-resistant alloy with high strength and outstanding oxidation resistance.
Stainless Steel 316L Angle is a more common option in outdoor, marine, and industrial applications due to its corrosion resistance, whereas Stainless Steel 304L Angle is often used in indoor applications where the material will not be exposed to an excessive degree of corrosion. Stainless Steel Angles are available in different sizes and shapes as per the client's requirements.
What is the composition of Stainless Steel Angle?
Stainless Steel Angle is composed of a combination of iron and at least 10.5% chromium, which gives it the properties of stainless steel such as corrosion resistance and durability.
What are the common applications of Stainless Steel Angle?
SS Angle is commonly used in the construction industry, as well as in the manufacture of products such as brackets, bracing, and frames. Its corrosion resistance makes it ideal for use in marine and food processing environments.
What is the temperature range of stainless steel angles?
Stainless Steel Angles can withstand temperatures up to 1500F (816C) in intermittent service and 1650F (899C) in continuous service.
Mechanical Properties of Stainless Steel Angle
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi - 75000 , MPa - 515 | Psi - 30000 , MPa - 205 | 35 % |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 - 20 | - | 8 - 11 |
| Stainless 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 - 20 | - | 8 - 13 |
| Stainless 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 |
| Stainless 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 - 18.00 | 16.00 - 18.00 | 10.00 - 14.00 |
Size Chart of Stainless Steel Angle
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20' Bar |
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
| Product | Angle Bar |
| Grade | A36,S235jr,S275jr,S355jr,St37-2,SS400,Q235,Q345, etc… |
| Standard | ASTM, AISI, EN, DIN, JIS, GB |
| Size | 1.25#-25# |
| Thickness | 1-35mm |
| Length | 3-9m, 4-12m, 4-19m, 6-19, 6-15m or as customer's requirement |
| Technique | Welded, Hot rolled, galvnized |
| Place of origin | Liaocheng China (Mainland) |
| Brand name | Xisuju |
| Application |
Construction and machine structure pipe, building material tube, agriculture equipment, water and gas pipe, etc. |
| Delivery terms | FOB, CIF, CFR, EXW |
| Payment terms |
30% deposit by T/T and 70% balance against copy of B/L by T/T, irrevocable 100% L/C at sight. |
| Packing | detail as per standard seaworthy package or as customer's requirement |
| Delivery period | 15-30 days after receiving your deposit |
| MOQ | 10 MT, lower price if big quantity |
| Product Advantages | 1. Competitive price in high quality in terms of over 10 years of professional manufacture experience |
| 2. BV and ISO certificate could be provided to assure the quality | |
| 3. Fastest response for enquiry and free samples for evalucation |
