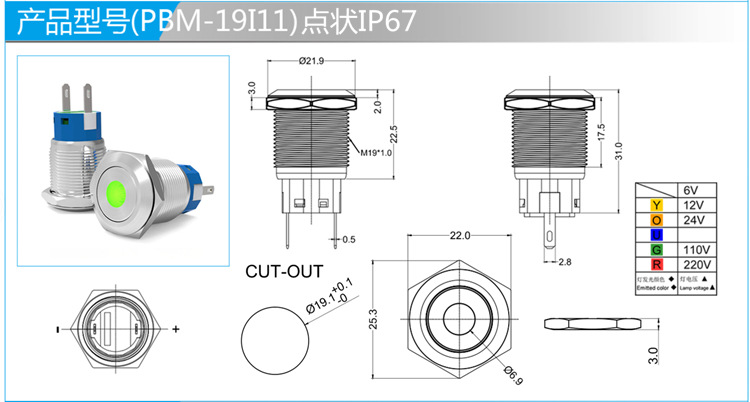

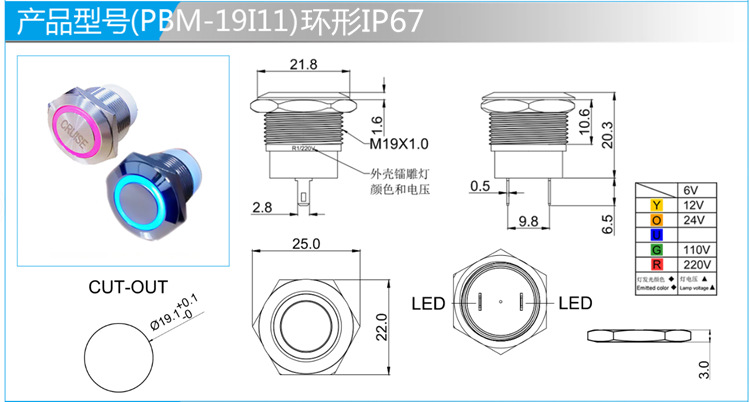

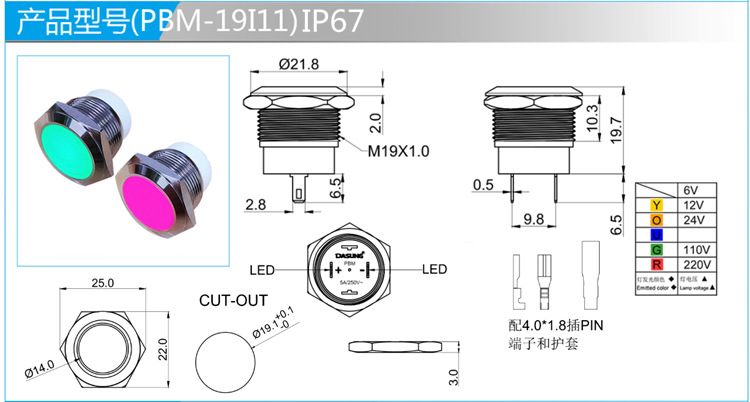

ANTI-VANDAL AND WATERPROOF
SIGNAL LAMP
SPECIFICATIONS
Mounting hole： Φ19mm
Lamo color：R / G / Y / O / B / W
Lamp voltage：1.8V,3V,6V,12V,24V,110V,220V
Lamp type：LED
Rated Current：2mA～20mA
Torque： About1.2Nm
Panel Thickness：1~8mm
Operating Temperature：-20℃~+85℃
Solder Heat Resistance： 320℃(or 30W soldering iron) no more than 2 seconds)
Crust material：Nickel-plated brass/Black-plated brass/stainless steel
Lamp cover material：Eposy（Anti-UV can be made to order）
Base material： PA66
IP degree：IP67
ILLUMINATION BASE RATlNG：
Red， Yellow and Orange：20mA 1.8V;
Blue, Green and White：20mA 2.8V
RoHS
