We are very famous at home and abroad by our product brand "Bealead", is a renowned name the automatic down filling machine sector of China for its unparalleled quality. Quality is our first and last and we never compromise with that.
Magic X down filling machine is now our newest product, customer can choose 3 scales or 4 scales themselves. Our down jacket filling machine is very popular among customers all over the world.
Down stuffing machine has dust removal under desk, down returning function, electrostatic elliminating system, dust removal on weighing box, iron-removal device. Also we develop new functions, like independent weighing system and apportion big grams for this new type of down garment filling machine.
Brand: Bealead
Model: DF-2603X
Composed by: 1 feeding unit and 2 weighing units/ filling station
Filling Pipes: 2
Scales by filling pipe: 6
Fillings by hour: 1200-1600 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Weight: 920kg
Filling Storage: 12kg
Weighing Range: 0.2g- 20g
Accuracy: 0.01g
Feeding Unit Size: 2.1* 0.8* 2.1m
Weighing Unit Size: 1.8* 0.6* 0.95m
Min. Site Area: 5m* 6m
Voltage |
220V |
Air Tank |
≥1m³ |
Air Pressure |
0.6- 0.8MPa |
Air Compressor Power |
7.5KW |
Min. Air Pressure |
0.5MPa |
Air Compressor Exhaust |
≥1m³/min |
Max. Power |
2.5KW |
Air Monitoring System |
√ |
PPR Pipe |
1 inch |
Down Returning System |
√ |
Pipe Distance |
≤20m |
Humidity Control System | √ |
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
Our Factory
Exhibitions

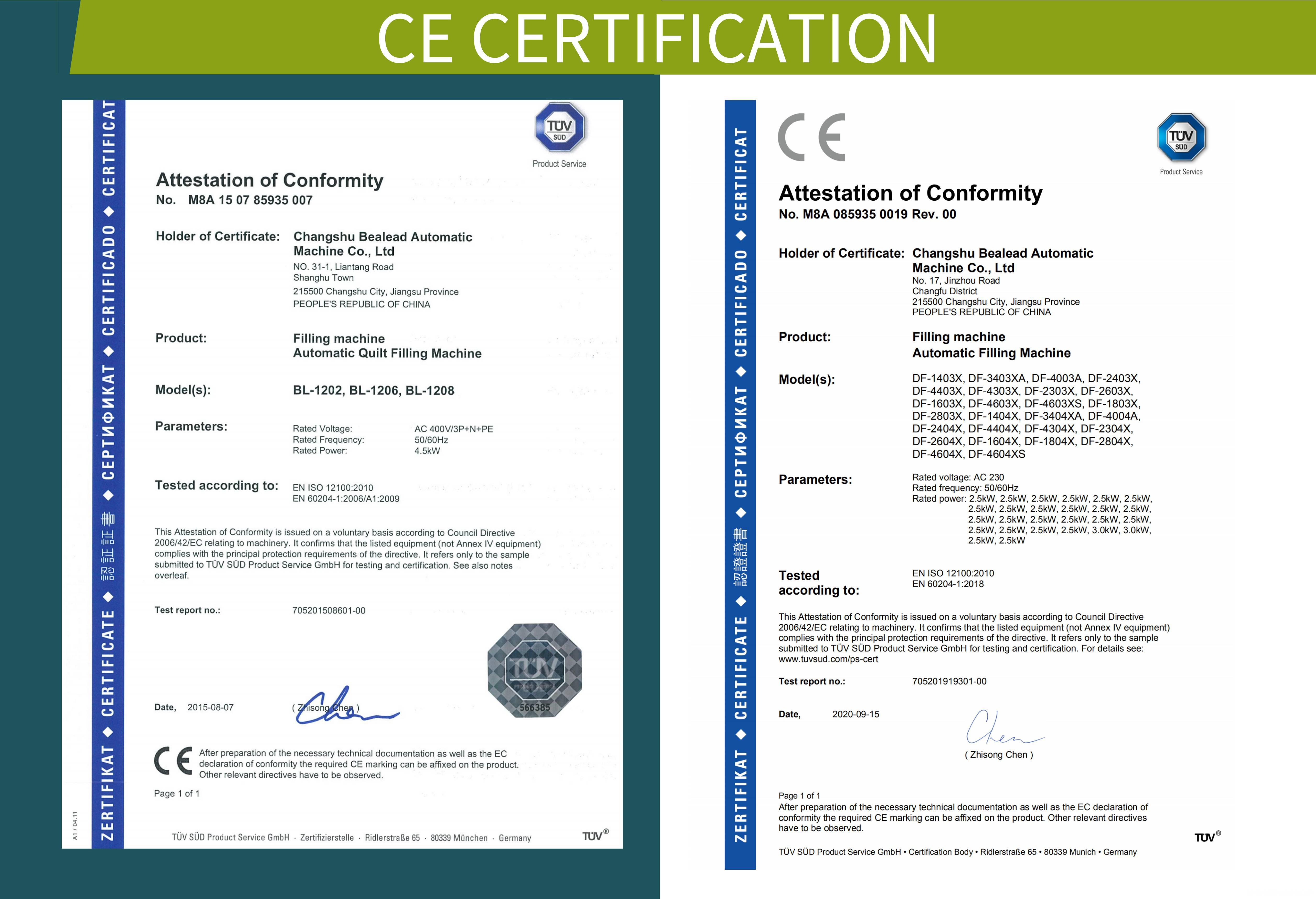

Certificate
