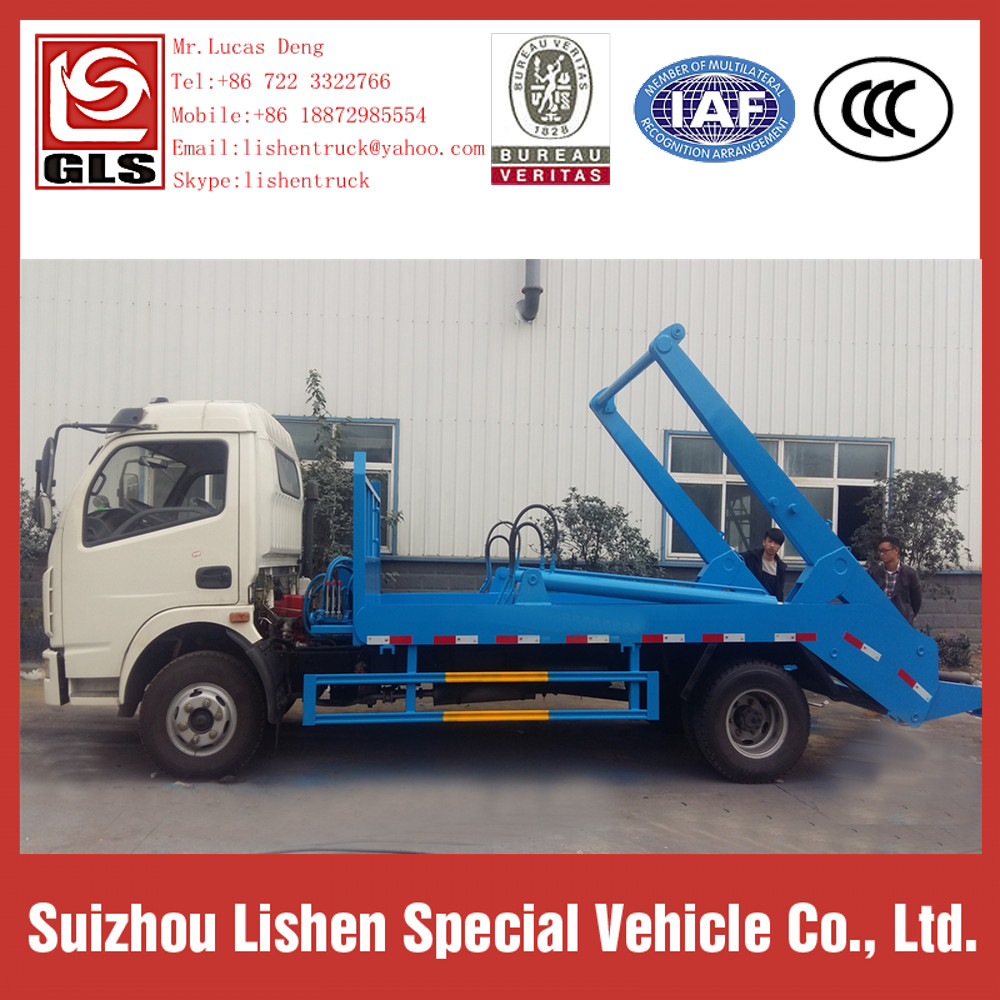

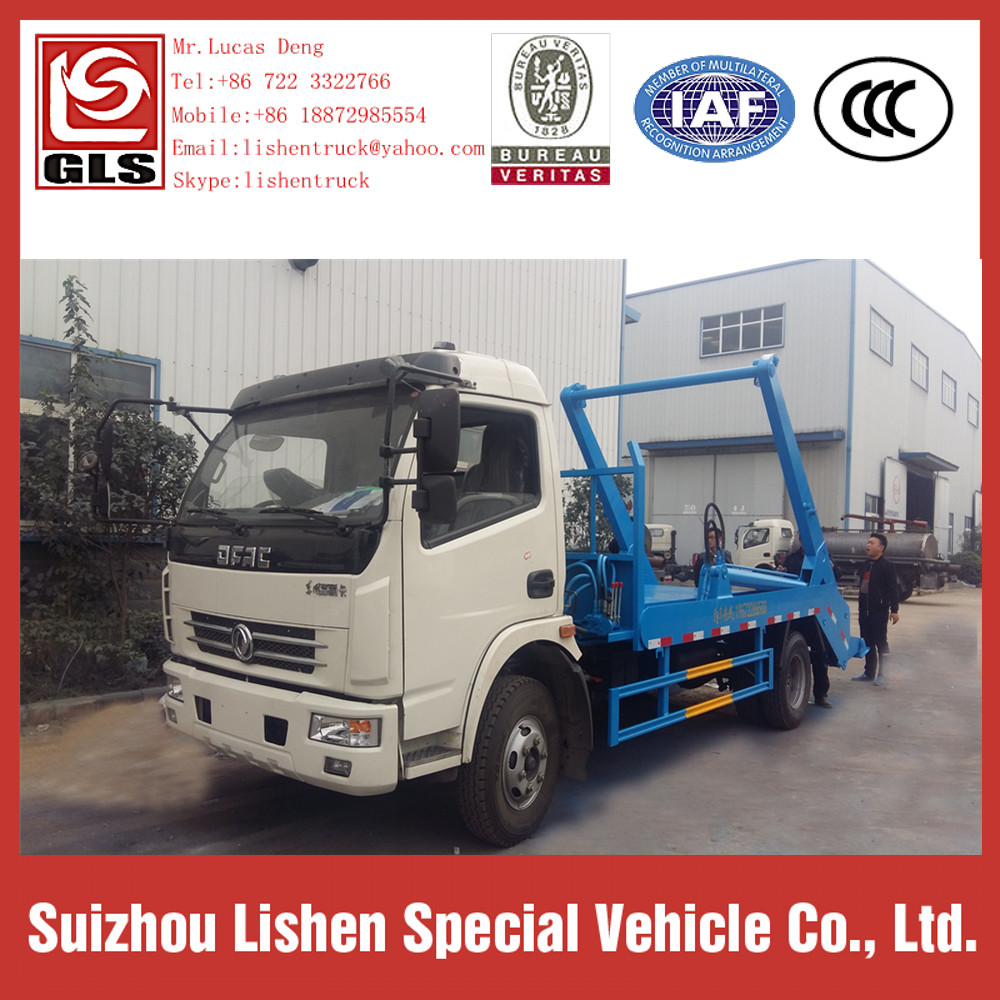

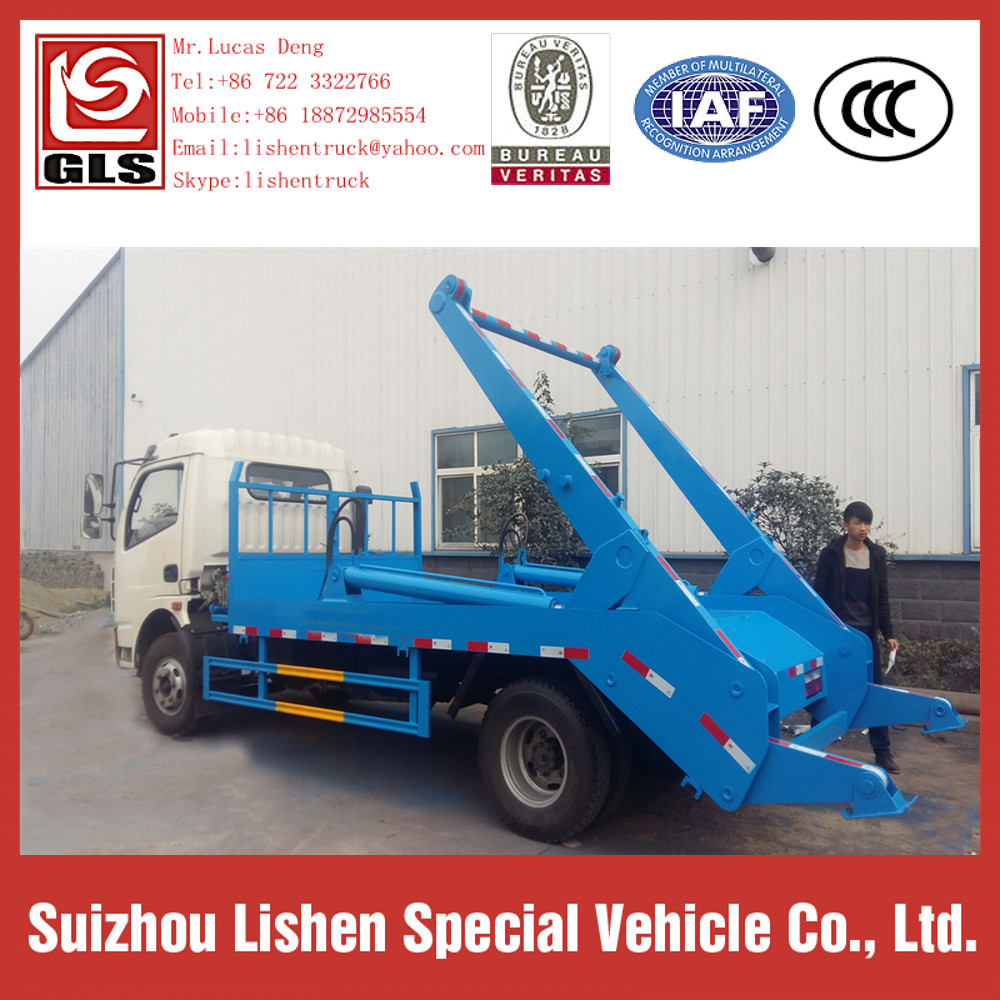

Swing Arm garbage truck applicable national general garbage bucket with dump function, hydraulically operated, self-garbage bucket hanging on the vehicle and hanging down the ground,Swing arm working cycle time: 60S. The vehicle features a garbage bucket and truck can separately, to achieve a truck with multiple garbage bucket joint operations, cycle transport, to fully enhance the transport capacity of the vehicle, especially for short-distance transport, such as the sanitation department useing waste cleanup and transportation.
Garbage bucket can put on the ground and under ground. so the bucket can divide On Ground bucket & Under ground bucket.
PRODUCT SPECIFICATION:
|
Model |
SLS5070ZBSD4C Swing Arm Garbage Truck |
|
Chassis |
DFA1070SJ35D6 |
|
Engine |
D28D10-4DA ,75 KW |
|
Steering |
Hydraulic Steering With Power Assistance |
|
No. of Axle |
2 |
|
Axle Load |
2920/4380 |
|
Allowable Passangers |
3,2 |
|
Dimension |
5995x2000x2900 mm |
|
Wheel base |
3300 mm |
|
F/R Suspension |
1032/1663 |
|
F/R Tread |
1500/1466 |
|
Approach angle(°) |
19 |
|
Departure angle(°) |
13 |
|
No.of Tires and Specification |
4,7.00-16 14PR,7.00R16 14PR |
|
G.V.W |
7300kg |
|
Rated Loading Capacity |
3070kg |
|
Mass In Working Order |
4100kg |
|
Max Speed |
95 km/h |
|
No.of Leaf Spring Pieces |
8/9+5 |
|
Tractions |
4*2 |
|
Breaking System |
Air Braking |
| Electric System | 24 V |
| Fuel Type | Diesel |
| Hourse Power | 102 hp |
| Tank Capacity | 4 M³ |
| Tank Material | Optional,Carbon Steel, Stainless Steel |
|
Application |
mainly used for the sanitation department of municipal and large-scale factories and mines carry a variety of waste with simple and convenient collection method. |
| Basic Compostion |
chassis,container,push plate,scraper blade,sliding plate,padding machine,tipping bucket, hydraulic electric system and ect. |
You may ask thesse questions and here are the answers:
Q.How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.
Q. How about your payment? A:TT OR L/C
Q. How about your MOQ? A: 1 SET
Q. How about your company's service, especially after-sale service?
A: We has been in this field for more than 10 years and has strong production and distribution capability.We always do our best to solve all the problems and put our customer's interests in the first place.
Please feel free to contact with us if you need more details
