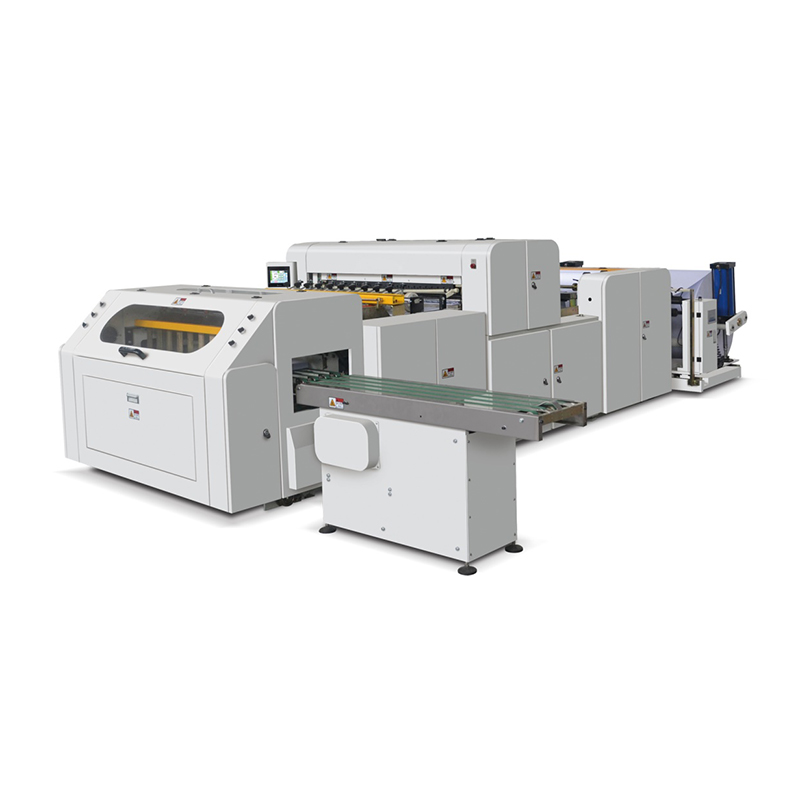

A4-1100 Paper Cutter (Single Roll)
Device Configuration
|
Model |
A4-1100 |
|
Maximum cutting frequency |
30-150 knives/min |
|
Production efficiency |
1.5 packs/min (500 sheets/pack) |
|
Cutting accuracy |
±0.2mm |
|
Paper cutting mode |
upper knife back cut, lower knife fixed |
|
Cutting length range |
297mm (A4 length) |
|
Paper range |
70-300gsm |
|
Maximum roll paper diameter |
1400mm (single feed) |
|
Maximum roll paper width |
1100mm |
|
Air pressure source requirement |
0.8Mpa |
|
Total power |
8kw |
|
Design power supply |
AC380v/50hz |
|
Dimensions |
8600mm*1860 (1800mm for side conveyor belt)*2000mm |
|
Total weight of machine |
4000kg |
The actual output is determined based on the paper material, paper weight, cut length, number of rolls, operator technology, and operating conditions
Standard configuration
|
No. |
Configuration |
Brand |
Origin |
|
1 |
Servo motor |
Yaskawa |
Japan |
|
2 |
Main motor |
spans |
Shanghai |
|
3 |
Traction motor |
Dedong |
Shanghai |
|
4 |
PLC |
Panasonic |
Japan |
|
5 |
Display |
Willon |
Taiwan |
|
6 |
Magnetic powder |
Yan Xin |
Guangdong |
|
7 |
Inverter |
Sinee |
Guangdong |
|
8 |
Deviation Correction System |
KBA Customized |
Zhejiang |
|
9 |
Electrical components |
Delixi |
Zhejiang |
|
10 |
Diameter Rail |
Hiwin |
Taiwan |
|
11 |
Cross-cutting knife |
Longshen customized type |
Shanghai |
|
12 |
Inductive switch |
Omron |
Japan |
|
13 |
Unwinding and expanding shaft |
Dongtai |
Ningbo |
|
14 |
Slitting round knife |
KBA customized SKD material |
Zhejiang |
|
15 |
Waste exhaust fan |
Zifeng |
Zhejiang |
If you are interested in the product, contact 2bvideo.com for more information for more information
