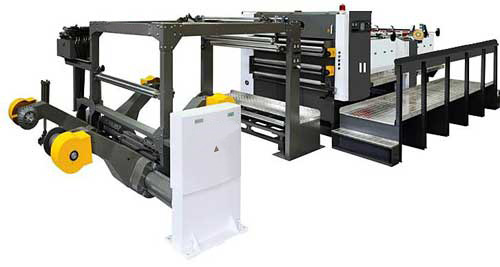

ZXC Servo Precision High Speed Paper Cutting machine

ZXC-Servo-Precision-High-Speed-Paper-Cutting-machine

Features:

1. ZXC Servo Precision High Speed Paper Cutting machine adopts advanced technique of Taiwan and Britain.

2. The machine is transmitted by assisting motor.

3. The main electric control system adopts center computer control (PLC), person-machine interface operation, dynamic display.

4. Cutting knife adopts that made in German and its service life is longer.

5. Paper flatted adopts reasonable structure for reversing bend so as to ensure the flat degree of paper.

6. Feeding adopts step less adjusting and ensures single sheet feeding and overlapping feeding paper smoothly.

7. Collecting adopts automatic sort out material and automatic counting and inserting label so as to ensure heaping in order and counting exactly.

8. It is paper machinery equipment with high efficiency and high benefit.

Parameters:

Model	ZXC1400	ZXC1700
Cutting accuracy	+-0.5 mm/m	+-0.5 mm/m
Max. cutting speed	300sheet/min	300sheet/min
Max. cutting meter speed	300m/min	300m/min
Cutting length range	450~1450mm	450~1450mm
Max. scroll diameter	1800mm(71)	1800mm(71)
Gross weight	1300kgs	1500kgs

ZXC high-speed web cutting machine, mainly for the production of hundreds of tons of cut in the monthly paper manufacturers are particularly useful in the development of a high-speed machines.

This machine using the most advanced German technology, steel welding rotary cutter body, the reasonable cutting point of view, high-power AC servo motor, the whole closed-loop synchronization control, cutting speed and stability; German precision bearings and cutting knives, cutting and high precision ; touch-screen computer interface for control, easy to operate; A reasonable anti-music institutions, to ensure the paper into the paper core is also flat; non-axis hydraulic paper planes, paper core chuck mechanical, protecting paper core is not bad; hydraulic closed paper body, smooth and effective; automatic counting marking; specially designed needle Tissue Paper Holder and received briefing paper system, in the true sense, able to do the thickness of paper can be cut; pneumatic tension control system in order to solve the problem harder to control the tension when cutting tissue; it is a Taiwan web's most advanced fully automated cutting machine.

Mechanical Specifications:

1. Cutting Type: the up knife cut reciprocally and the down knife is fixed.

2. Model of cutting paper: 60-550 GSM

3. Max. Diameter of paper: 1650mm (65 ")

4. Max. Pieces of paper: 1400mm (55 ")

5. Cutting length: 450-1450 mm

6. Profile control the number of pieces of paper: 2

7. Maximum load: 600GSM

8. Cutting precision: the Cutting length is below 1000mm;± 0.5mm

9. The Max. Cutting speed: 300cuts/min

10. The Max. Speed: 300m/min

11. Air source requirements: 0.8Mpa (about 7 cubic meters per hour, using different, Gas Consumption is also different.)

12. Design Power: AC380V/220Vx50Hz

13. Total power machine: 33kw. (Normally in use around the 8KW to 10KW.)

14. Cutter maximum load: Sheet Card Paper to 550GSM (to take into account the density and quality)

15. Roll of paper length accuracy: Based on the roll of paper quality and material properties, 1000mm following is ± 0.5mm; 1000mm above is ± 0.1%, acceleration or deceleration of ± 0.1%, the above data are based roll-paper

Standard content:

1. High-precision single-pole cutter ----------------------- 1 SET
2. Paper edges adjusts systems ----------------------------- 1 SET

3. Static elimination equipment ---------------------------- 1 SET
4. Automatic counting tags inserted in the device ---------- 1 SET

5. Paper Conveying Equipment ------------------------------- 1 SET
6. Automatic taking Paper Equipment -------------------------1 SET
7. Electrical control system ------------------------------- 1 SET
8. Drive Motor System -------------------------------------- 1 SET

9. Random accessories -------------------------------------- 1 SET
10. Arms hydraulic base paper without frame axis ----------- 1 SET

11. Cleaning equipment system ------------------------------ 1 SET
12. Suction Paper Equipment Systems ------------------------ 1 SET
13. Operating system: LCD screen --------------------------- 1 SET
14. Main drive: AC servo motor ----------------------------- 1 SET

Specification Details:

A-1. Type: HSC1400 high-speed web cutting machine

1) the up knife: The German cutter approach, the reasonable cutting point of view, in order to effectively reduce the load during cutting and noise, extending the life of cutter’s Body by a steel roller blade made after welding precision machining, and by the dynamic balance adjustment, effective when the high-speed operation to reduce the vibration and noise.

2) The down knife: knife block with cast iron body shape, and then by precision machining, stability, good.

3) Rolling: roll surface lines have expanded the design, and to control the roller body of the pressurized air bag jammed.

4) Cutting knives: a special alloy steel precision knife processed into life specialty.
5) Safety cover: safety cover opened automatically power-off, safety is guaranteed.
6) Transmission: Key bearings using the German FAG, high precision, driving stability.

A-2. Paper angular adjust system

1) Type: adopt a fixed way with the German knife block is fixed, saving time and improving efficiency.
2) Control method: in accordance with the Gauge on the Windows control panel to make the paper edges and corners of the adjustment.

A-3. Static elimination equipment (MADE IN Hong Kong)

1) Type: Static elimination bar with the ion generator, in order to eliminate the static on paper.
2) Host: high-performance ion generator

3) The static elimination bar: the effective discharge range of 1400mm.

A-4. Automatic counting tags inserted in the device

1) Type: precise count of horizontal plug-in
2) Function: a) will want to insert the label of the number of sheets to enter the man-machine interface; you can insert a label in accordance with set values.

b) Non-performing product feature added paper

A-5. Paper Conveying Equipment (Switzerland)

1) Type: horizontal multi-stage differential speed conveyor to produce the separate counts and paper stacking effect.
2) The first transport section: rapid separation of the paper cut off.
3) The second conveyor section: You can control the single-action, or linked, you can fold like paper sent in watts, but also leaflets output.

4) Transport section: fine paper pressure roller can be adjusted with the pieces of paper. Pressurized feeding wheel can increase the stability of the paper to avoid offset paper, and paper, without indentation.

A-6. Automatic taking paper Equipment Set

1) Type: Hydraulic lifting platform stack collection of paper, paper, stacked to a considerable height, that is automatically dropped.

2) Paper and effective stack height of up to 1300mm (51 ").
3) Paper size: W: 1400mm (55 "), L = 1450mm (57").
4) Taking Paper Equipment: Electric Paper-positive
Pneumatic bodies on both sides of paper

Adjustable tailgate body

A-7. Electrical control system (Schneider)

1) The electrical control system, easy to Operate.
   2) Cut length, number and the total number of finished products and so on, can be directly input.
   3) The actual cutting length and cutting the number of available real-time display.
   4) Shows the causes of the machine to facilitate the solution

A-8. Drive Motor System

1) Back to the Cutter AC Servo System (Germany)
   2) Feeder AC Motor (Taiwan Tomita)
   3) The second paragraph of the conveyor belt motor inverter
   4) The collection of paper sets Lifting AC motors
   5) Taking Paper AC motor
   6) Suction Paper AC motor
   7) Base frame AC motors

A-9. Random accessories
    1) special alloy steel upper and down cutting knives
    2) Label Paper
    3) toolbox

A-10. Arms, hydraulic axis base paper without frame
1) Max. Diameter: 1800mm (71 ")
2) Max. Paper width: 1400mm (55 ")

3) Min. Width: 500mm (20 ")
    4) Paper Tube barrel diameter: 3 "-12" are applicable to
    5) The hydraulic drive unit: 2.2kw
    6) The jammed arm to open and close, and before and after the move to hydraulic cylinder drive.
    7) Jammed arm movements to hydraulic cylinder drive.
    8) Air Brake (Taiwan Tong-ying)

A-11. Tension Control System (Taiwan)
    1) Tension control system: a pneumatic tension control, brake type, in order to achieve the size to adjust the brakes.
A-12. Cleaning equipment system
    1) the principal aspiration after cutting a piece of paper and paper wool, paper dust.
    2) To enable the paper in the printing process to reduce pollutants.
