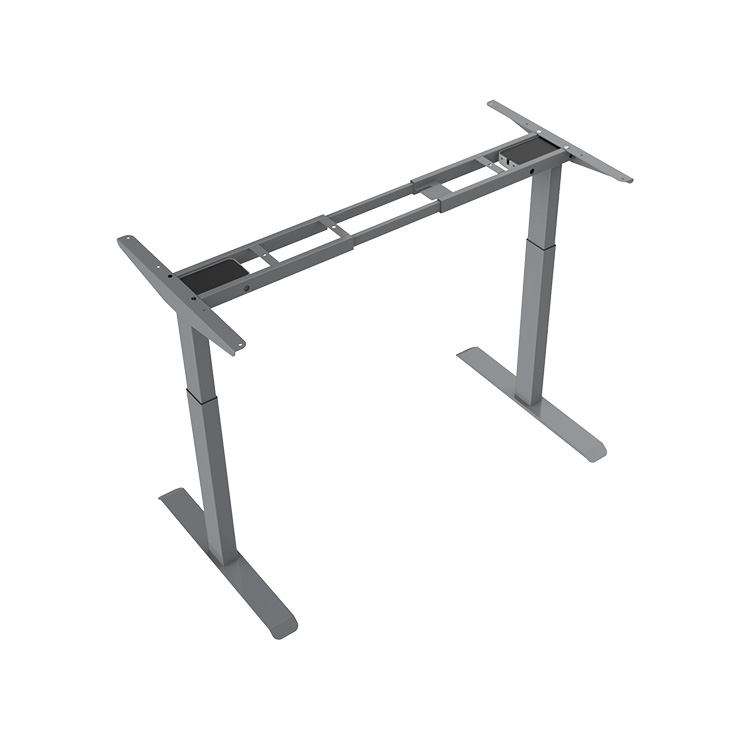

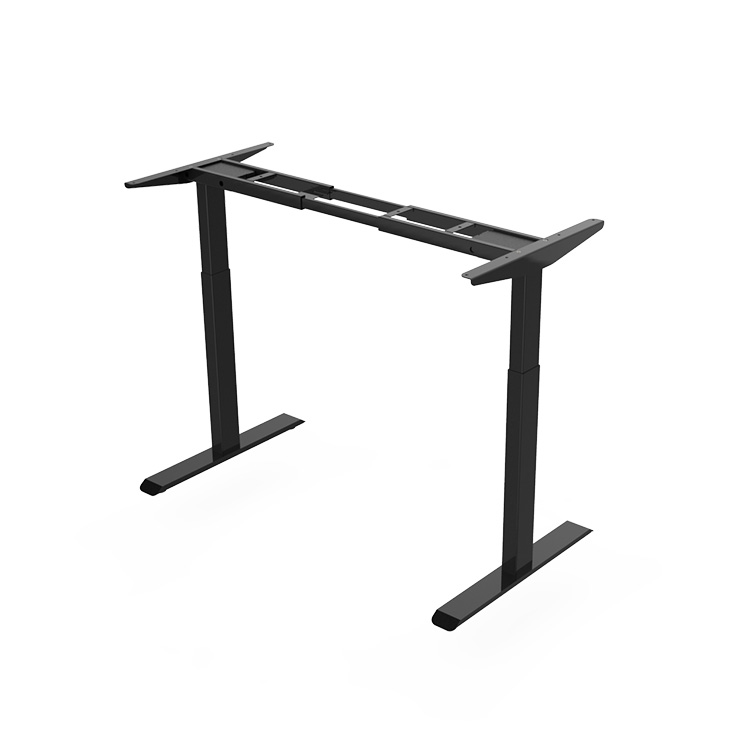

This standing desk is designed to be retractable in width and can be adapted to a 1m to 2m desktop board. We are a professional manufacturer of lifting table frames, and panel is a cooperative supplier, you can buy panels from us, and you can also go to other places to buy them. Two slots are designed on the crossbeam of the electric standing desk frame to prevent the controller, which makes the whole desk look more tidy. Up1b is a dual motor design, the lifting speed is 35mm / s, and in less than 20 seconds, it can be switched from sitting to standing. Height adjustable desk, of course, the most important is the height range, the range of lifting between 700-1200mm, which can be step-less lifting. Even if you are a child or 190cm height can be used perfectly.
A good electric lift desk is not only important for these functions, but also for the material and process of the table frame. It is made of high carbon steel, thickened and smooth surface. If you buy a standing desk frame, you certainly hope it can be used for many years.
| Number of motors | Dual motor |
|

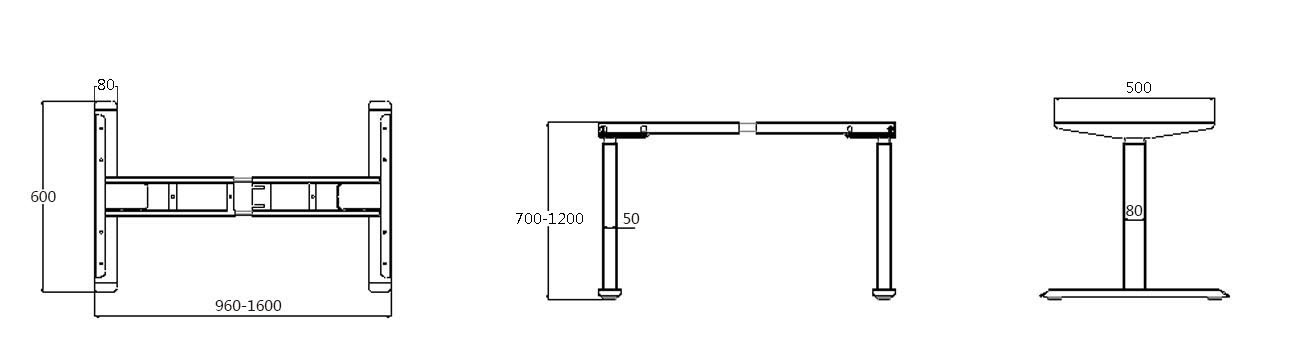

Height range |
700-1200mm |
| Base width | 964-1600mm |
| Max load capacity | 120kg/265IBS |
| Speed | 30mm/s |
| Noise | ≤ 50db |
| Frame color | Black White Grey |
| Brand | UPLIFTEC |
| Frame material | Q235 |
| Input Voltage | AC 110V-220V |
| Motor warranty | 5 years |
| GW/NW | 25.3/23kg |
| Package size | 1080(L)*270(W)*235(H)mm |
The lifting column of the electric standing table adopts 24 V DC as the power supply
The 24 V permanent magnet DC motor is used as the driving power source
After 24 V DC power is supplied to the motor, the motor rotates and decelerates through the worm and turbine of the motor
A nut is fixed on the inner tube. After the screw rod rotates, the nut moves forward and backward on the screw rod, so that the inner tube moves forward and backward
By switching the positive and negative poles of 24 V DC, the motor will rotate forward or reverse, so that the inner tube is forward or backward
By changing the thread pitch of screw rod and nut, the maximum thrust and speed of push rod can be changed
1. Lift freely, can stand can sit alternate office, stand to sit alternate does not hinder busy business at hand.
2. It's easy to operate, just press the button to achieve the purpose of alternate standing and sitting.
Outer packing
The outer layer is shockproof / moisture imitation paper layer packaging, thickened five layers of corrugated paper, etc. to protect your furniture in the whole process and ensure the safety of products in transportation
Inner packing
The inner layer is anticollision, thickening, laminating, foam package, strong and wear-resistant, not easy to deform, to ensure the safety of goods in transit.
