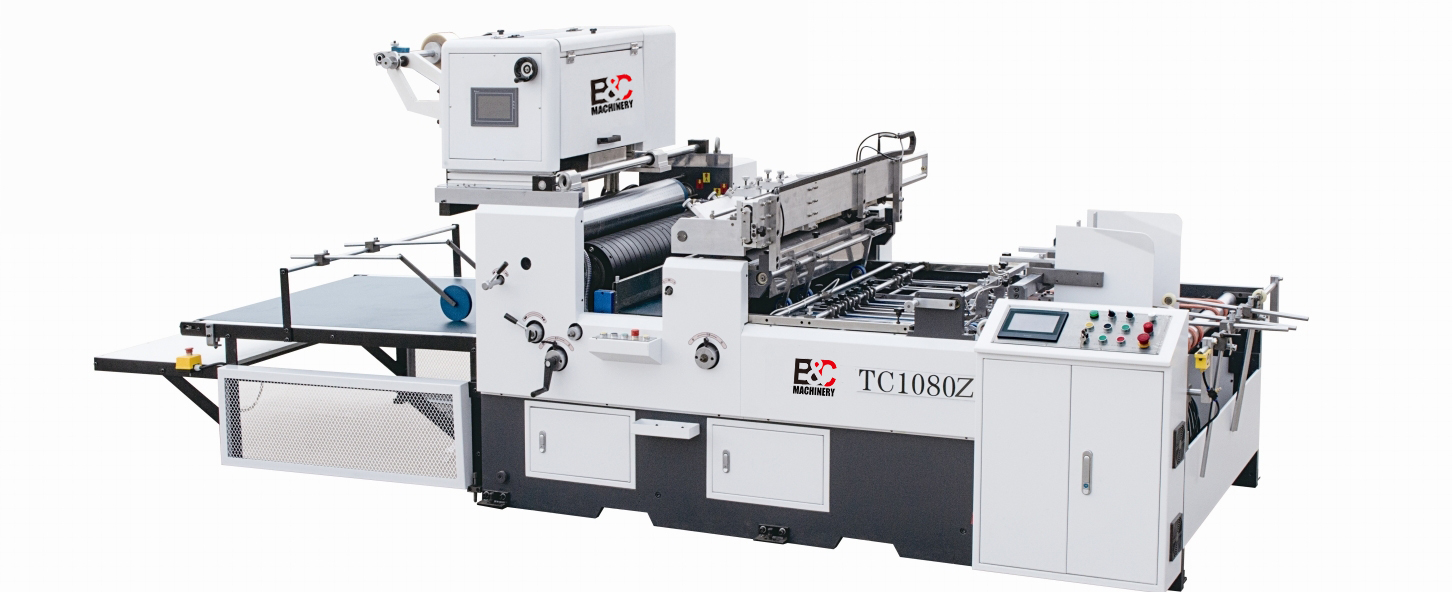

TC-1080Z Automatic window patching machine.
Product features:
TC-1080Z Automatic window patching machines are special equipment for carton box, color box window lamination; They are advanced models in domestic market. Perfect design ensure the machines have the feature of high efficiency, high-precision, high stability and easy operation.
These machines are available for both cardboard and corrugated paper.Like tissue boxes, gift boxes, toy boxes, shirt boxes, milk cartons and so on.

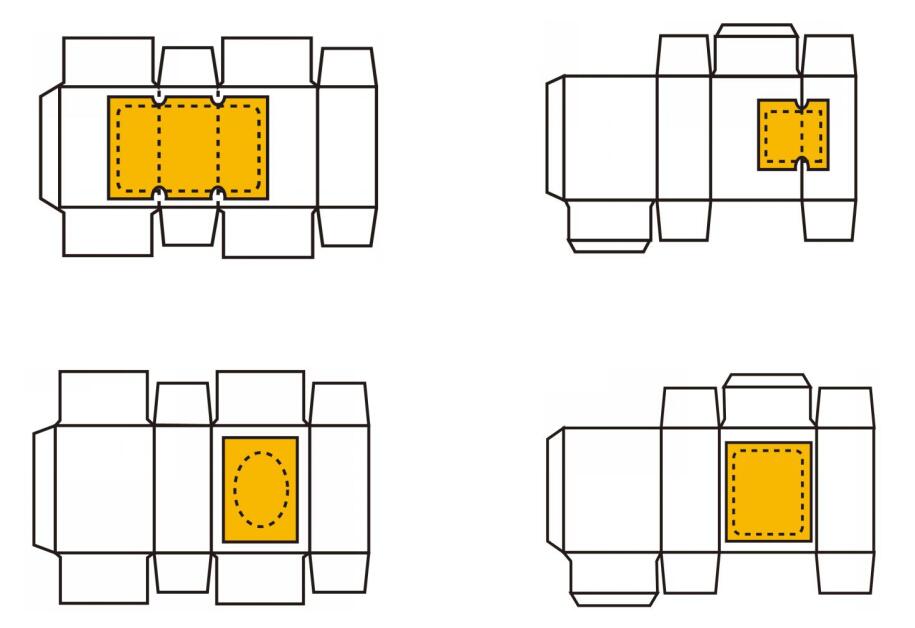

Product types:
Technical specification:
|
Model |
TC-1080Z |
|
Max paper size(mm) |
1080*650 |
|
Min paper size(mm) |
100*100 |
|
Max window size(mm) |
580*450 |
|
Min window size(mm) |
40*40 |
|
Cardboard (g/㎡) |
200-1000 |
|
Corrugated paper(mm) |
≤4.0 |
|
Precision(mm) |
± 1.5 |
|
Film thickness |
0.05-0.25mm |
|
Max working speed(s/h) |
5000-7000 |
|
Total power (kw) |
10 |
|
Total weight (T) |
3.3 |
|
External dimension(mm) |
4958*1960*1850 |
Part Introduction:
1.Special design for die-cutting angles&Creasing:
◆ Creasing section is equipped with independent heating wheels for creasing.
◆ There is an independent cylinder heated by oil to flatten the curved plastic film.
◆ Equipped with corner cutting system controlled by servo to make the plastic film smooth.
◆ Equipped with micro-adjusment system, easy to operate.

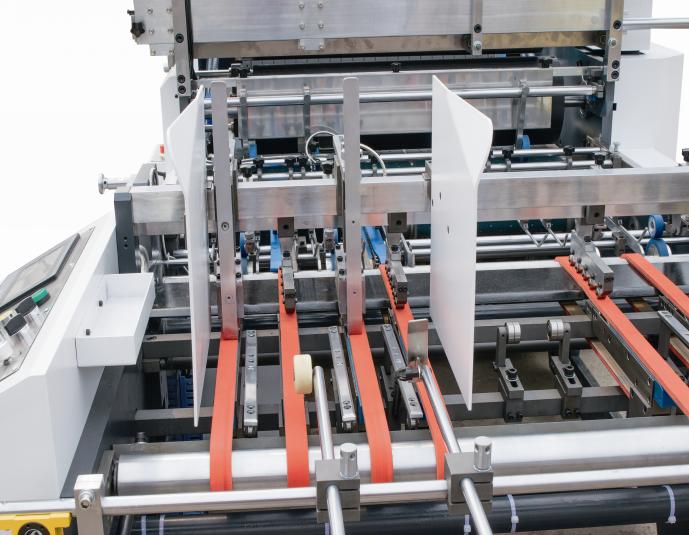

2.Feeder:
◆ The unique supporting plate and wheel feeding type replaces the servo intermittent feeding type.
◆ Ensure that the paper is smooth
◆ Deliver the paper with high speed,stable and reliable.
◆ Our company has won the national patent for this part.
3.Rotation rubber roller(can pull-out):
◆ Single rubber roller cooperate with baffle to gluing.
◆ Avoid the waste of glue,reduce the volatilization.
◆ When the machine stopped,the rubber roller can rotation driving by the motor. Avoid the glue solidify on the face of rubber roller.
◆ When cleaning the rubber roller, this part can pull-out entirely,reduce cleaning time.
4.Gluing:
◆ Use automatic gluing instead of hand movement.
◆This part can adjust the glue roller right or left、up or down.
◆ When the photoelectric sensor reacted the paper. If there are papers pass,the machine will use the air cylinder to control platform to uplift.
◆ If there are no papers pass,the platform will decline.
◆Avoid the glue smear on the belt.

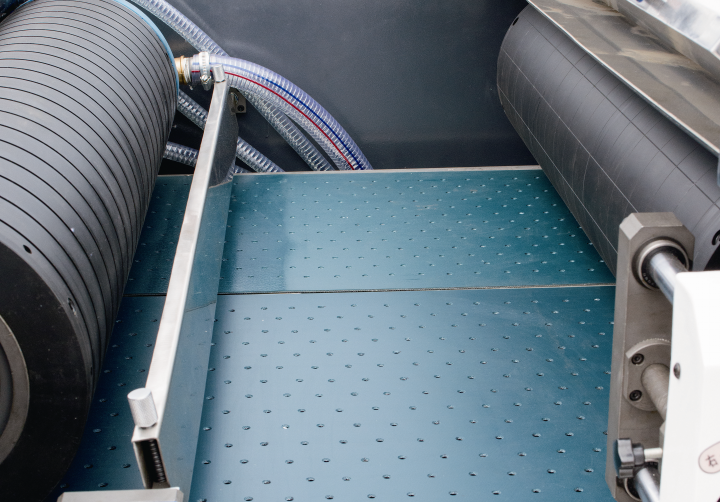

5.Suction belt:
◆ The two suction belts are wide and thick,increase service life.
◆ With the device of adjust the wind power.
◆ Can adjust wind power according to the sizes of papers.
◆ Ensure that no position offset.

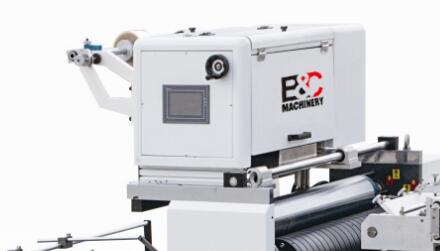

6.Film transport:
◆ Film Transport is controlled by the servo motor.
◆ With high precision,make the error of cutting the film is less than 0.5mm.
◆ Adopt the touch screen to adjust the length of the film.
◆ Make the adjustment more convenient and efficient.
7.Roller knife:
◆ Quality alloy steel was adopted special heat treatment process to ensure long working hours.
◆ Use the touch screen to set the film length.
◆ So that the machine can runs more accurate, stable and reliable.

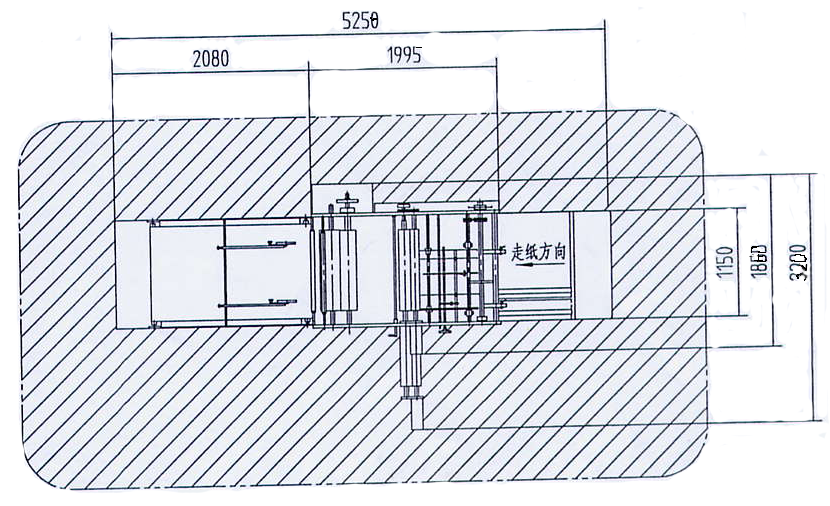

Working area:
 |
Operating conditions:
◆ Working temperature is 5ºC to 40ºC.
◆ Transportation and storage temperature is-25ºC to 55ºC.
◆ The relative temperature is not greater than 60% (20%c), and the altitude is not
more than 1000 m.
Power supply specification:
◆ Total power: 3 phase 4 wire,380V 50HZ
◆Control power: single phase,220V AC 24V DC
◆Deviation: ±10%V ±1HZ
◆Total power:10KW
Note：Due to the diversity of products, the applicability of the machine will be affected.
So the above data is not applicable to every product.
