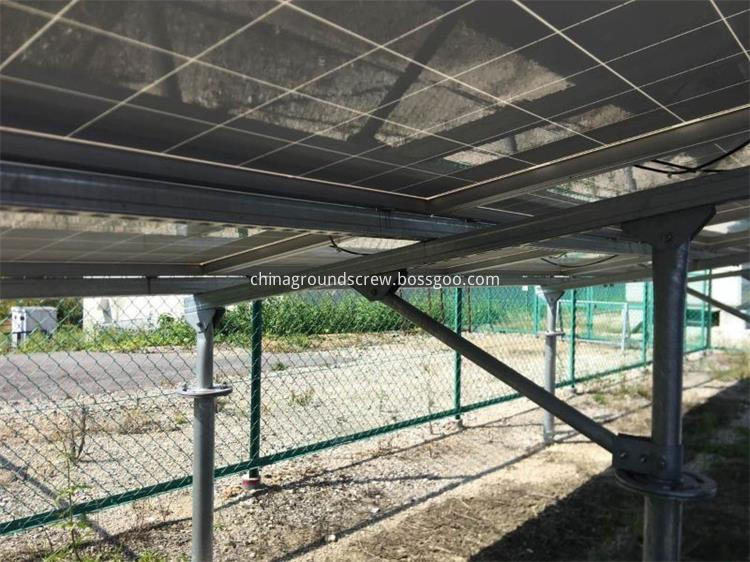

The Flange Ground Screw with flange, flange size is 8*200 mm or 6*160 mm or according to clients' request.The flange is fixed to the structure to provide a stable and corrosion-resistant floor support.Ground Screw Pile mainly used on photovoltaic solar energy mounting,garden fence,agricultural fence,grape garden,container house, temporary building.
The surface of the Ground Pile is generally hot dip galvanized according to DIN EN ISO 1461-1999.After this process,the Ground Screw Pile can be well resistant to environmental corrosion and prolong its service life.
Advantage of S 235 carbon steel Galvanized Ground Screw are as below:
1.No digging, or concrete
2.Installs within minutes
3.Instantly loadable with no waiting time
4.Stable, durable, storm proof, water proof
5.Environmentally friendly
6.Fast and inexpensive to dismantle and relocate
7.Not dependent on weather conditions
Range of application: Solar energy system, garden or farm fencing, timber construction, simple house construction, advertising board and banner, traffic signature, lighting pole, flag pole, event structure, sheds and containers &.
Size of Flange Screw Pile foundation are like the below :
76*3*1000*200*8
76*3*1200*200*8
76*3*1500*200*8
76*3*1800*200*8
76*3*2000*200*8
76*3*2500*200*8
89*3.75*1200*200*8
89*3.75*1800*200*8
89*3.75*2000*200*8
114*4*1500*200*8
114*4*1800*200*8
114*4*2000*200*8
114*4*3000*200*8
