H-Beam Flange Straightening Machine

2 year ago

60 0

Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd.

 3 year year

Product details

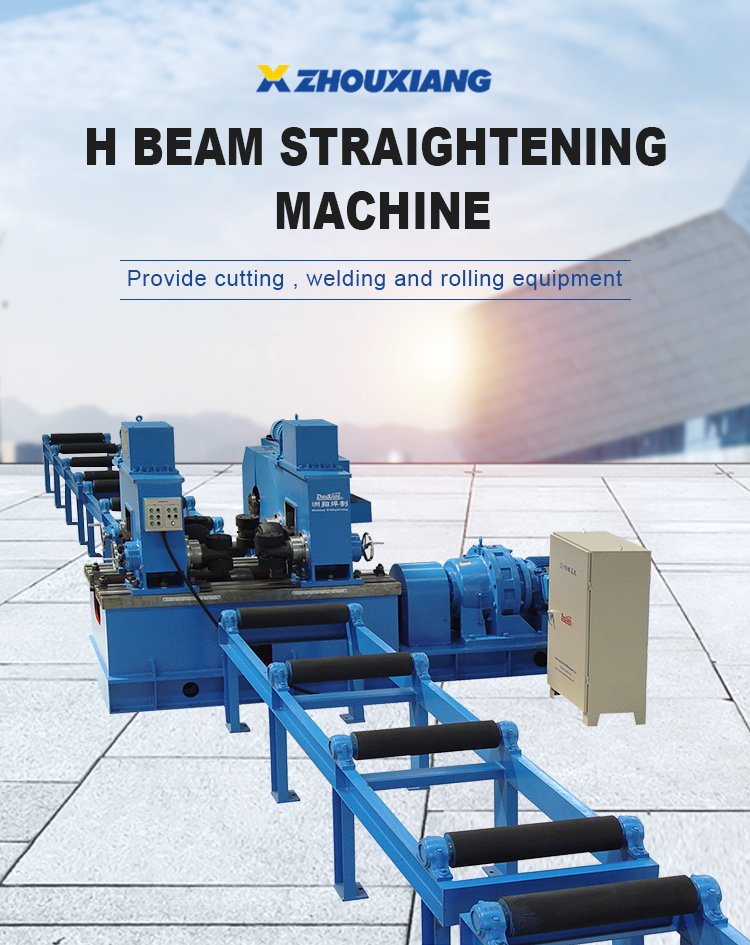

H Beam Straightening Machine

Model	JZJ-600	JZJ-800
Flange width	150~600mm	200~800mm
Flange thickness	≤20mm	≤40mm
Minimum web height	160mm	350mm
Material of plate	Q235-A	Q235-A
Straightening speed	8.5m/min	18m/min
Power of overall machine	6.6kW	24.2kW
Above are our standard model, it can be designed and manufactured according to customer’s request.

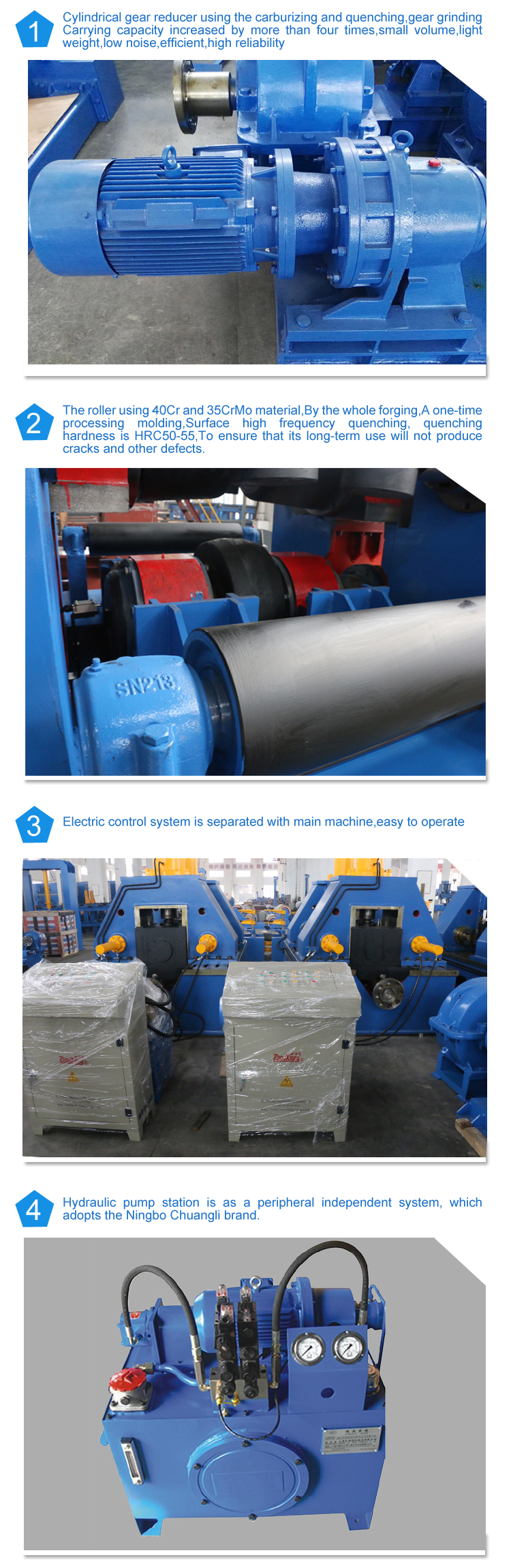

1.The mainframe of H beam flange straightening machine is integral frame structure with stress relief, it is processed and shaped in one step by CNC floor type boring and milling machine, with the advantages of compact structure, strong strength and enough rigidity.

2.The main cylinder adopts high quality sealing ring with good sealing performance, which can ensure long service time. There’s fine filter equipped on the pump station which can ensure electromagnetic valve is more reliable for long-term use.

3.There’s dial for all the adjusting motion which can ensure convenience and accuracy.

4.The straightening roller adopts shaft box structure, so it have big loading capacity. There have hydraulic cylinder in shaft box, it can adjust the distance of two upper straightening rollers, which is stable and reliable.

H Beam Straightening Machine

About Us

Wuxi Zhouxiang complete set of welding equipment plant is a famous China manufacturer of H beam Welding equipment. Our factory is located in Wuxi city, China---was established in 1991. The company has fixed assets of more than 20 million US dollars, a factory area of 100,000 square meters, and annual sales of more than 40 million US dollars.We have full control of production from steel plate delivery, through to site installation and commissioning,design and manufacture highly sophisticated heavy engineering machinery, our research and development weld centre also more than 100 engineering. Zhouxiang Complete Set of Welding Equipment Co., Ltd is a national high-tech enterprise, with China's national CCC certification, CE, TüV, GS certification, ISO9001 international quality system certification, etc. Main products of Zhouxiang plant: 1)H beam productions line: CNC control Flame/ plasma cutting machine .H beam assembly machine.H Beam Welding Machine.H beam flange plate straightening machine. H beam shot blasting machine.H beam End Face Milling Machine.H beam assembly-welding-straightening machine.Horizontal H beam productions line etc. 2)BOX column production line: Steel plate groove milling machine.Box column assembly machine.Box column welding machine.Box column electroslag welding.Box beam shot blasting machine.Box beam end Face Milling Machine etc. 3)Welding Rotator: Portable pipe rotator.Conventional rotator.Self-aligned welding rotator.Wind tower productions line etc.Anti-creeping welding rotato etc. 4)Welding Manipulator: Column and Boom.Platform welding manipulator 5)Welding Positioner: Tilting positioner.L type welding positioner.Head and tail stock welding positioner etc.
