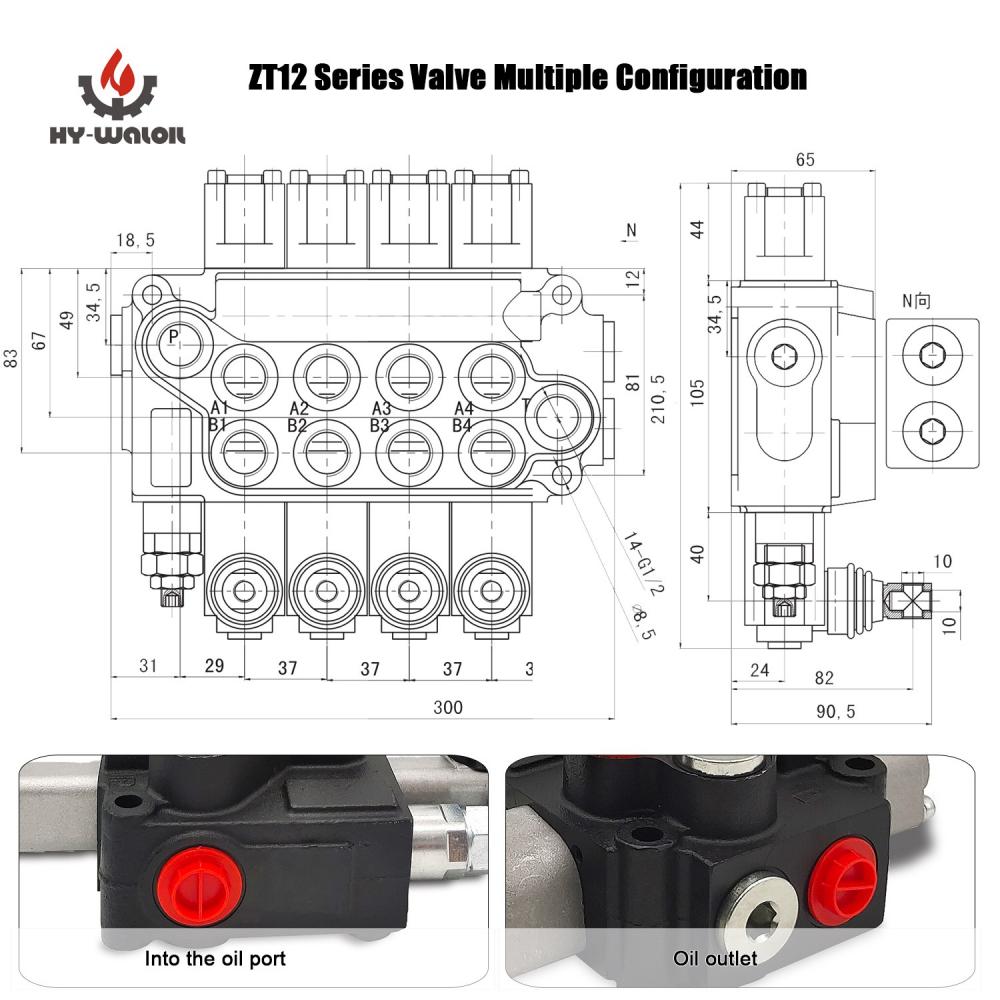

4DCV40 Forklift Tractor Interchangeable Hydraulic Hand Valve Description:
* Monoblock types with 1 to 8 working sections
* Dcv40/ Zt-L12-Ot Hydraulic Control Valve Nominal pressure 45 l/min, max 50 l/minute with pressure 160bar, 200bar, max pressure up to 315bar

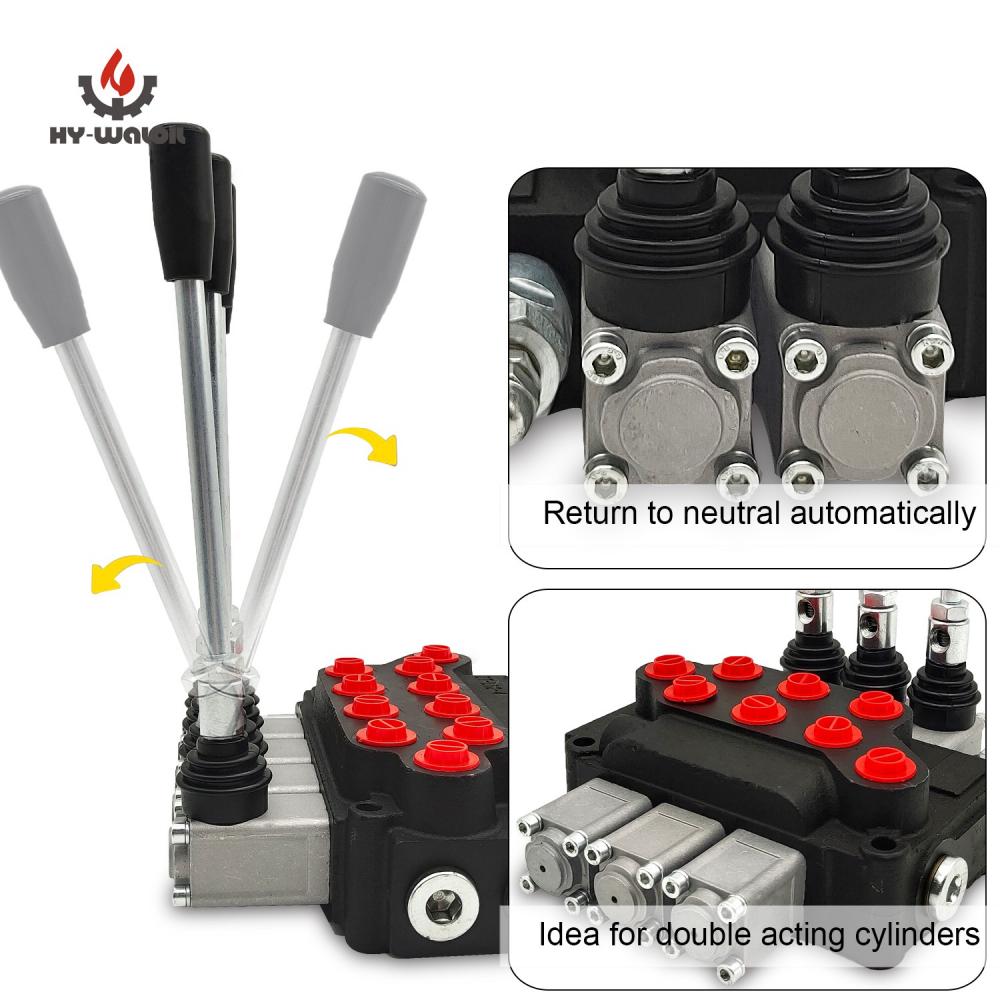

* Spring side control options: T (spring return) and W (detent control);
* Hydraulic Manual Shut Off Valve Joining port: L (screw connection)
* Parallel circuit
* Operated Manual Directional Valve 4 Spool function: O, P. Y, A
P40 series monoblock construction valves for medium high pressure with European technology.
The check valve in the valve housing must ensure the hydraulic oil is not returned.

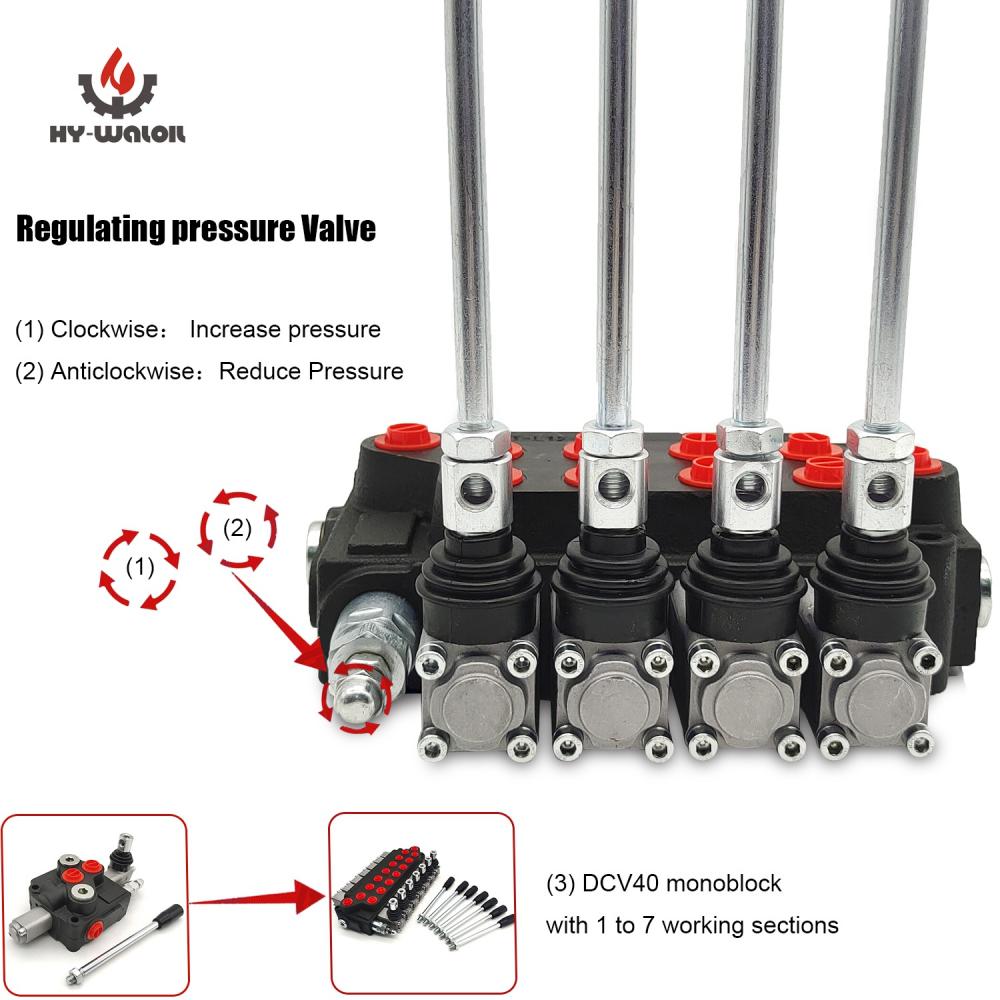

The pressure relief valve housing can adjust the working pressure of the hydraulic system.
The hydraulic lock can be attached to the connections A and B. What's more, available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control etc.
|
Ambient temperature |
-40C...+60C |
|
Viscosity |
12 ...800 mm2/s |
|
Fluid temperature |
-15C...+80C |
|
Filtration |
10 to NAS 1638 |
|
Max operating pressure |
315 bar |
|
Back pressure |
50 bar |
|
Nominal flow |
45 l/min |
|
Leakage(A,B-T) |
15cm3/min at 120bar |
|
Spool stroke |
6 mm |
|
Modification/ Spools |
with 1 to 8 |
 |
 |
Maximum operating pressure:
P = 3600 psi (250 bar);
T = 150 psi (10 bar); ON,
B = 4300 psi (300 bar).
Rated flow rate: 40 l/min
Pressure valve: adjustable.
Central system: open.
A, B connectors: 3/8" BSPP.
Connector P, T, N: 1/2" BSPP
Screw pole range: 10 - 400 mm2/s
Filter accuracy: ≤ 10μm.
Oil road: parallel circuit, power via option
Operation: manual operation, pneumatic operation, hydraulic and electric control for selection.
1-7 lever. Pool function: O, Y, P, A.
If you are interested in the product, contact 2bvideo.com for more information for more information
