Switch Sampling Valve for Beer System

2 year ago
42 0
Product details

Sampling Valve0102

Application: sanitary design, straight aliber, no rubber inside, Taper seal, It is mainly used for the collection of material samples in container equ ipment and pipelines, and can also be installd at the lowest point of tank equipment to drain residual liquid. Suitable for sampling of beer, beverage, container equipment.

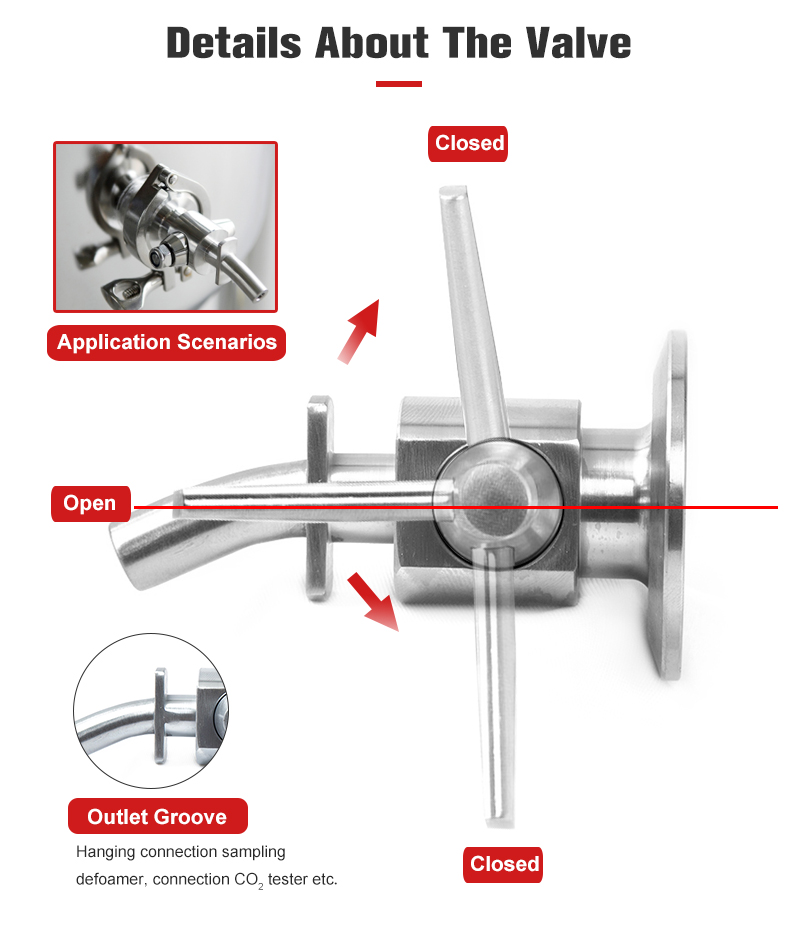

Switch principle: The handle is closed up and down, and the central position of sampling port is open. At this time, when the valve is sampled, the handle is opened to the center of the sampling port, and the internal diameter is straight through. When the valke is up and down, the valve is closed.
Outlet groove use: hanging connection sampling defoamer, connection CO2 tester etc.
Besides,our factory produces foam eliminator, fitting and pipes and safety valves, including regulating valve, breathing valve, adjusting relief valve and so on.

03

Product Name

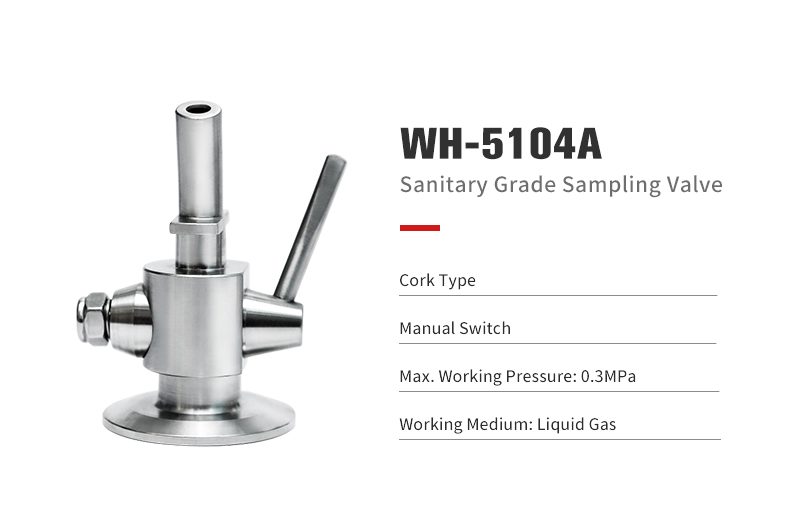

Stainless Steel Beer Sampling Valve
Model No.
WH-5104A
Power
Manual
Media
Liquid/Gas
Standard
DIN/SMS/ISO
Material
SS304 / SS316L
Working Temperature
-30°C ~150°C
Pressure
0.2Mpa
Connection Mode
Clamp (Available: weld, thread)
Customized Support
OEM, ODM

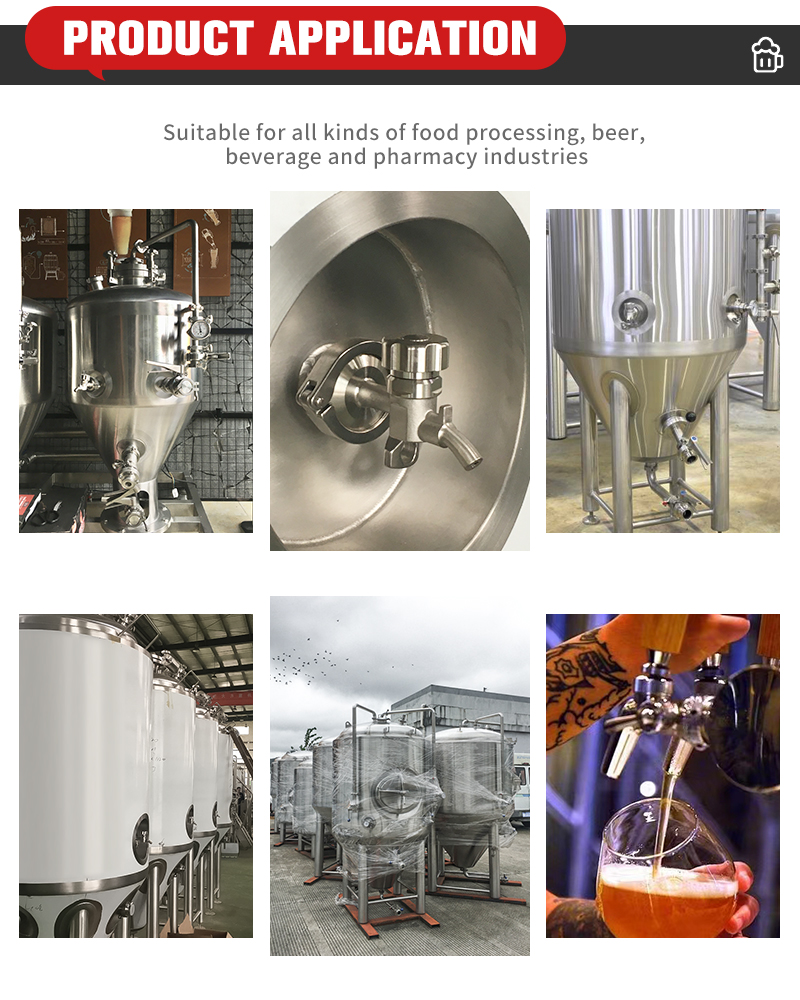

Application
Food & Beer &Beverage & Pharmaceutical
05Sampling ValveSampling ValveSampling ValveSampling Valve09101112
