Selected 304 stainless steel material, product is sturdy and has a long service life
Spherical shape, unique shape, beautiful and generous
Applicable industries: food, industry, medicine, alcohol, beverages, mineral water, bioengineering, etc
Selection of fermentation tank breathing valve:
1. The requirements for installation location and temperature range, such as the selection of all-weather breathing valves (fermentation tank breathing valves) in cold areas, and the selection of pipeline type breathing valves for installation in pipelines.
2. The control pressure of the mechanical breathing valve should be adapted to the relevant pressure bearing capacity.
3. The specifications (flange diameter) of the mechanical breathing valve (fermentation tank breathing valve) should meet the maximum inlet and outlet breathing gas flow requirements of the oil tank.
Our company main products: safety valve, sampling valve, foam eliminator, carbon dioxide guage, center valve, manway, pressure gauge, thermometer, fitting and pipes, cleaning ball, butterfly valve,check valve, ball valve, screen gasket, valve products.
|

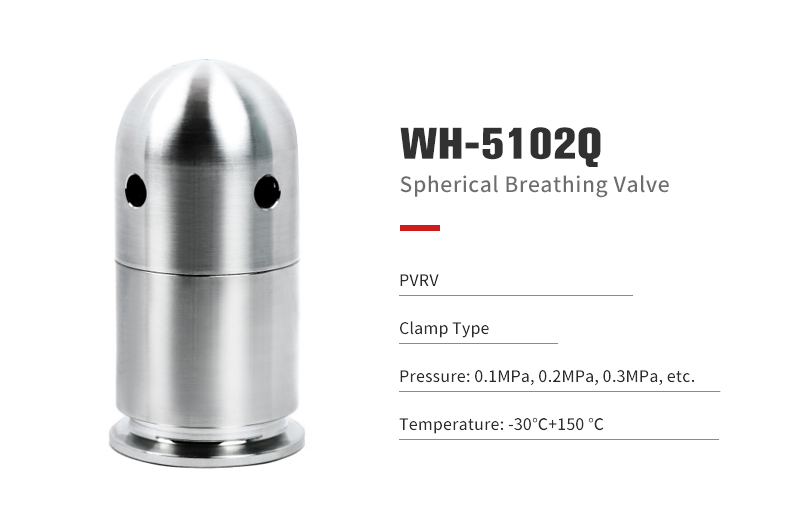

Product Name
|
Breather Valve
|
|
Model No.
|
WH-5102Q
|
|
Power
|
Manual
|
|
Media
|
Gas
|
|
Standard
|
DIN/SMS/ISO
|
|
Material
|
SS304 / SS316L
|
|
Seal
|
EPDM
|
|
Pressure
|
0.1 Bar, 0.2 Bar, 0.3 Bar etc.
|
|
Working Temperature
|
-30 to +150°C
|
|
Size
|
1.5"(Available: 1.5", 2")
|
|
Connection Mode
|
Clamp (Available: weld, thread)
|
|
Customized Support
|
OEM, ODM
|
|

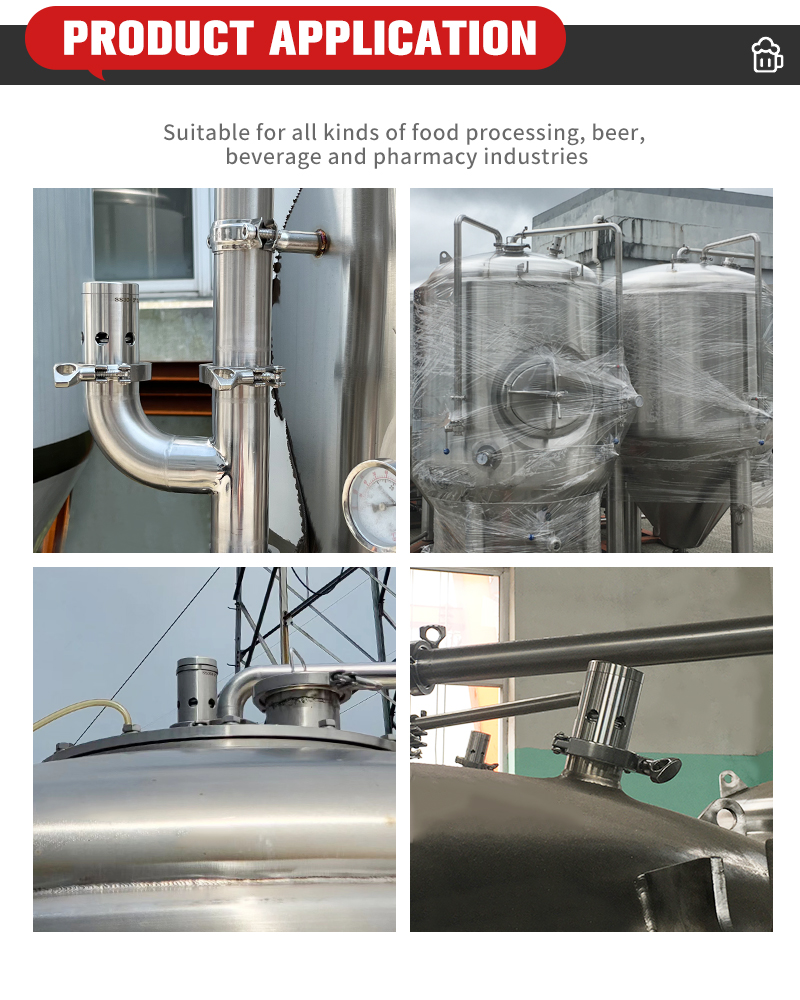

Application
|
Food & Beer &Beverage & Pharmaceutical
|
