Portable Energy Storage power mp1000 lifepo4 ups apc lifepo4 ups replacement lifepo4 ups diy using on Home emergency power supply, travel, Emergency relief, outdoor working Portable power station Portable generator Energy storage system solution LiFePO4 battery Portable Energy Storage Lithium Iron Phosphate battery and Portable Battery Bank for Iphone etc.
This product is a portable energy storage product, suitable for home emergency power backup, outdoor travel, emergency disaster relief, field work and other applications. This product has AC (110V/220V: 500W), USB (QC3.0, Type-C: PD60W), DC (DC5525: 14V/8A, cigarette lighter: 14V/8A) voltage output of different ports, and built-in 3W LED Lighting lamp and SOS alarm function, support 10W wireless charging function; the system is equipped with standard AC adapter 25V/4A to charge the system. You can also choose DC photovoltaic 18V/60-150W charging or DC car charger can also be used to charge the system.

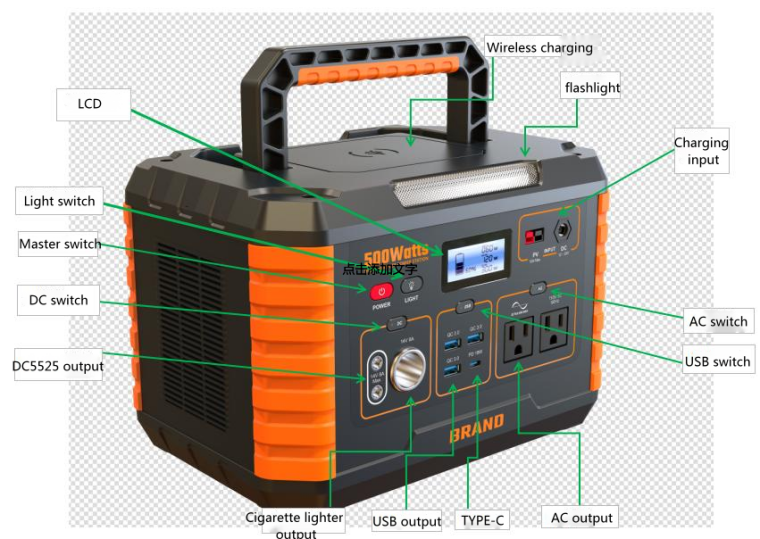

2. Front panel control and digital display instructions
2.1 Switch function
Master switch: the master switch that controls each function of the product (except the lighting function). After the switch is pressed, the power display lights up and the wireless charging function is turned on.
DC key switch: control 14V DC5525, cigarette lighter, the key indicator lights up when the switch is turned on, and goes out after turning off.
USB key switch: control USB A and Type-c, the key indicator lights up when the switch is turned on, and turns off when the switch is turned off.
AC key switch: control reverse AC output, the key indicator lights up when the switch is turned on, and turns off when the switch is turned off.
Lighting key switch: control LED lighting, SOS warning light.
2.2 LCD display information
LCD display information: battery power, input power, output power (DC, USB, AC power)
1) After the charger is plugged into the DC charging port, the battery marquee will be displayed on the left side of the screen and the battery will be displayed, the screen "INPUT" will light up and the charging power will be displayed.
2) After the DC circuit is turned on, the "DC ON" of the digital tube lights up and displays the output power.
3) After the USB circuit is turned on, the "USB ON" of the digital tube lights up and displays the output power.
4) After the AC circuit is turned on, the "AC ON" of the digital tube lights up and displays the output power.
3.Portable energy storage power supply parameters
DC IN Input port parameters
|
Item |
Min. |
STD. |
Max. |
Remarks |
|
Standard input voltage range |
12Vdc |
25Vdc |
26Vdc |
Standard 25V/4A adapter. |
|
Input charging current |
--- |
4A |
6A |
Max. :120W |
|
PV input |
--- |
18V |
--- |
Max. Current: 6A |
|
Input polarity reverse protection |
--- |
Support |
--- |
Cannot charge when the input is reversed, and the display does not display. |
