Definition: A garbage compactor truck, also known as a waste compactor truck or garbage truck, is a specialized vehicle designed to collect and transport solid waste. It is equipped with a hydraulic compactor mechanism that compresses the waste to maximize the truck's carrying capacity.
Application: It is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.
1. With sufficient garbage collection and transportation volume;with larger compression ratio;
2. Imported hydraulic and electronic components to ensure high quality,high efficiency and low failure rate;
3. Modular design of the whole vehicle is available for strong substitutability, convenient operation and convenient maintenance;
4. The garbage tank is all made of high-quality low-alloy steel or high-strength weathering steel with high-quality genuine national standard profiles,to make sure the structure is firm and reliable;
5. Designed and manufactured large-capacity sewage tank, clean water tank and self-unloading contact surface seal to avoid secondary pollution of sewage and garbage during operation;
6. Beautiful appearance, easy operation and good performance.

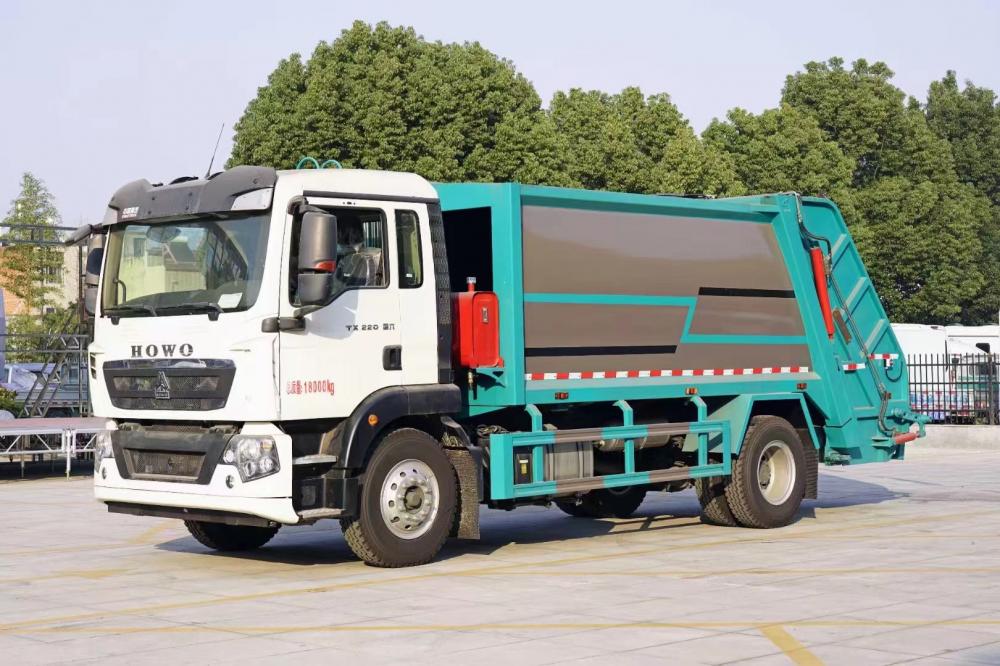

Truck Specification
|
Truck name |
12CBM HOWO 4x2 garbage truck |
Truck model |
CLW5180ZYS6SL
|
|
|
Weight(kgs) |
Gross weight(kgs) |
18000 |
Overall dimension(mm) |
10030x2550x3450 |
|
Rated loading weight(kgs) |
6600 |
Tank volume(cbm) |
12 |
|
|
Curb weight(kgs) |
11400 |
Wheelbase(mm) |
4200 |
|
|
Engine |
Model |
WP7.270E61 |
Emission standards |
Diesel EURO 6 |
|
Engine parameters |
Power/displacement (kw/ml) |
199/7470 |
Manufacturer |
Weichai Power Co., Ltd |
|
Tire |
11.00R20 16PR |
Tire number |
10+1 |
|
Garbage tanker specification
|
Truck body structure
|
Volume |
12m³ |
|
Body shape |
Curved box |
|
|
Body material and thickness |
Material: Q345 manganese steel Thickness of side plate: 3mm Thickness of bottom plate: 4mm |
|
|
Dozer |
Material:Q345manganese steel |
|
|
Filler |
Material:Q345manganese steel |
|
|
Front sewage tank |
Material:Q235 carton steel volumb:160L |
|
|
Flip frame |
Material:Q345 manganese steel |
|
|
Climb the ladder |
One side of the car body, material: Q235 carbon steel |
|
|
Compression parameters
|
Garbage density after compression |
0.5-0.8t/m3 |
|
Loading time once |
Less than30S |
|
|
Unloading operation time |
Less than40s |
|
|
Compression ratio |
1:2.5 or more |

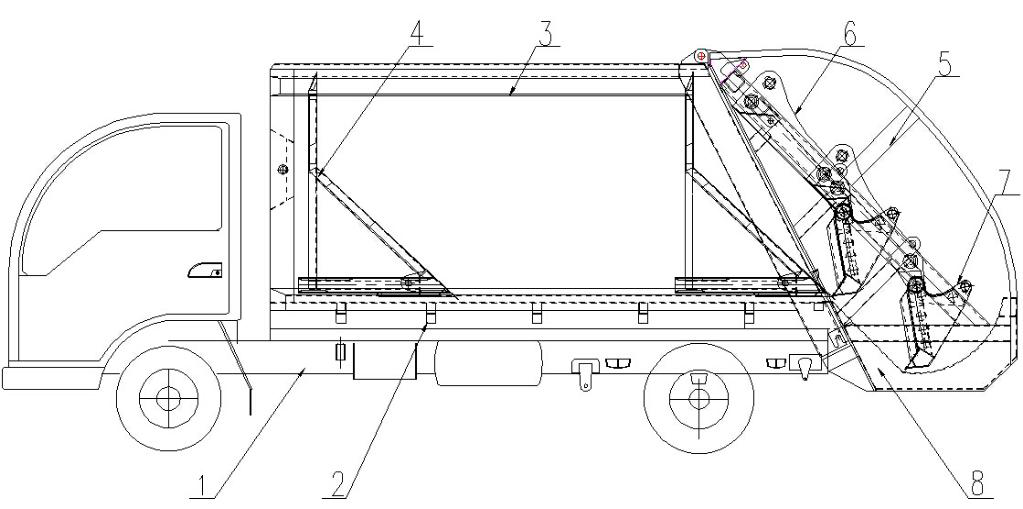

1. Chassis 2. Upper and lower frame 3. Trash box body 4. Push shovel 5. Hopper 6. Slide 7. Scraper 8. Sewage tank
