| Line speed | 0-220m/min adjustable | |||
| Paperboard thickness | 210-600gsm | |||
| Box forming | Single side gluing or both side gluing and pre-folding | |||
| Way of folding | First, second and fourth lines fold 180°,third line fold 135° | |||
| Paperboard feeding | Continuous automatic | |||
| Glue type | Cold glue | |||
| Power |
ZH-800A 380V, 3KW |
ZH-880A 380V, 3KW |
ZH-1000A 380V, 4KW |
|
| Weight | 1600KG | 1700KG | 1900KG | |
| Machine Dimension | 7.5*1.2*1.3M | 7.5*1.35*1.3M | 9.2*1.5*1.3M | |
| Packin size | 8cbm 1750kg | 9cbm 1800kg | 10cbm 2100kg | |

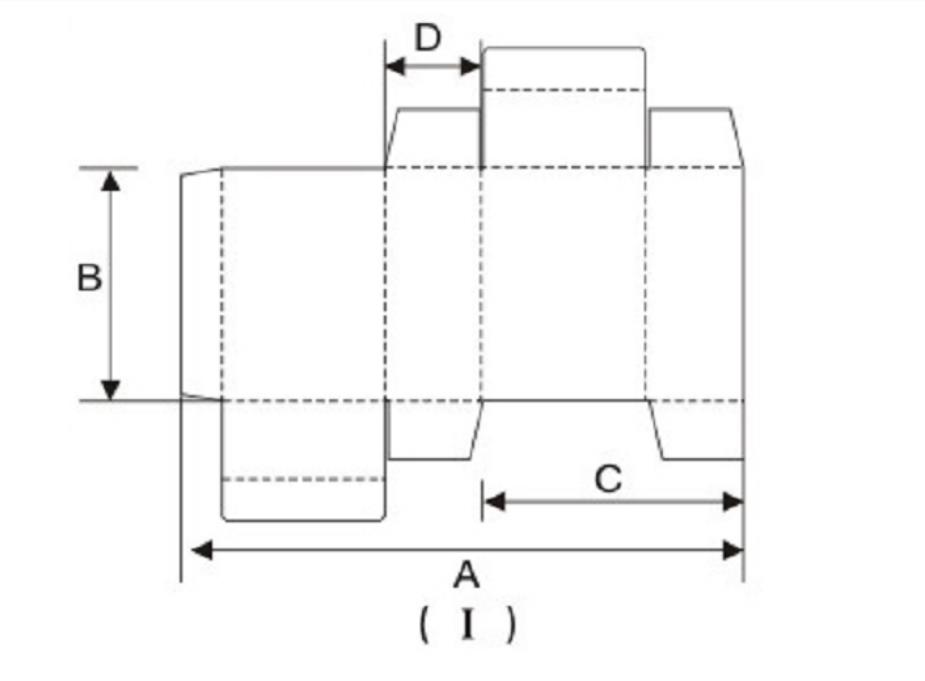

| Model | Box type | A | B | C min | D min |
| ZH-800A | Straight-line box(I) | 110-600 | 60-500 | 50 | 10 |
| Pre-folding box(I) | 170-600 | 60-500 | 80 | 10 | |
| ZH-880A | Straight-line box(I) | 110-700 | 60-500 | 50 | 10 |
| Pre-folding box(I) | 170-700 | 60-500 | 80 | 10 | |
|
ZH-1000A |
Straight-line box(I) | 130-800 | 60-700 | 60 | 10 |
| Pre-folding box(I) | 200-800 | 60-700 | 100 | 10 |
