Product details

Competitive Price Bonding Machine for Powder Coating

1. Application:

Bonding machine is widely used in producing special powder coating, like copper powder, siliver powder.

2. Main characteristic:
1.Built-in water tank, water pump and heating exchanger,tank body can be cooled down rapidly.

2.Cooling water passage in bonding blades and shaft

3.Equipped with N2 generator
3. Main Technical Parameter:

Model

BDH-15

BDH-100/200

BDH-200/500

BDH-500/1000

Main parameter

Hot mixing tank

Hot mixing tank

Cool mixing tank

Hot mixing tank

Cool mixing tank

Hot mixing tank

Cool mixing tank

Volume(L)

15

100

200

200

500

500

1000

Effective volume(L)

8

75

160

150

320

375

640

Motor power(kw)

5.5

22

7.5

42

11

75

15

Mixing blade speed(rpm)

100~760

100~760

130

100~760

99

100~760

50

Temperature control system

PID control, accuracy±1°C

Cooling system

Water cooling

Discharge system

Pneumatic

Overall dimension(mm)

945*614*1142

3780*1870*2250

4580*2240*2470

4850*3000*4050

Weight(kg)

300

3200

3400

7800

Power supply

380V/220V 3Phase 500Hz

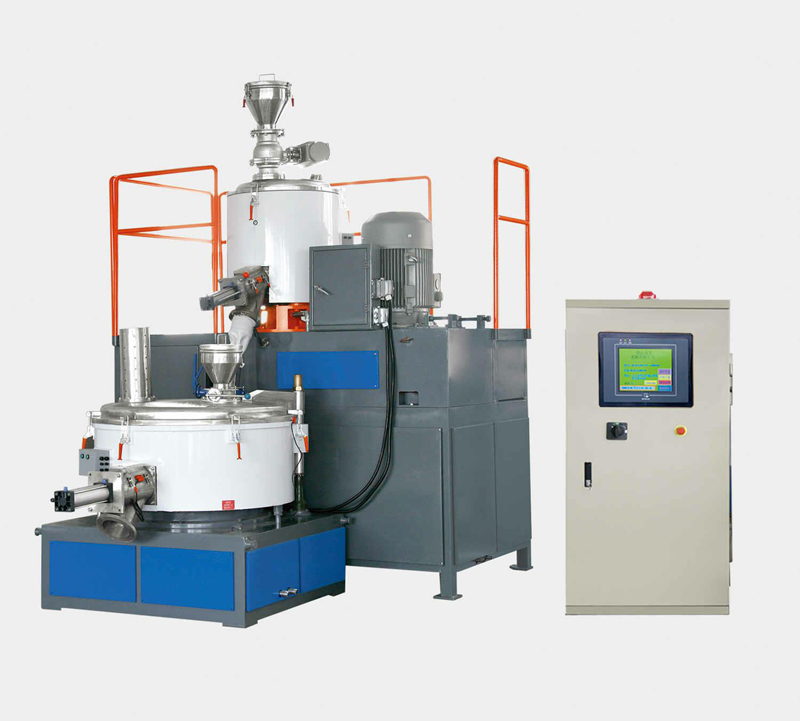

4. Machine Pic:
Powder Coating Bonding Mixer

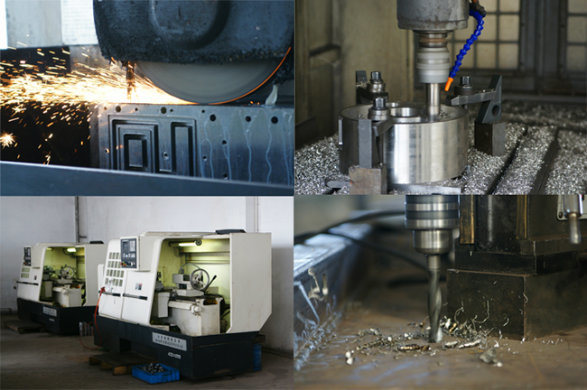

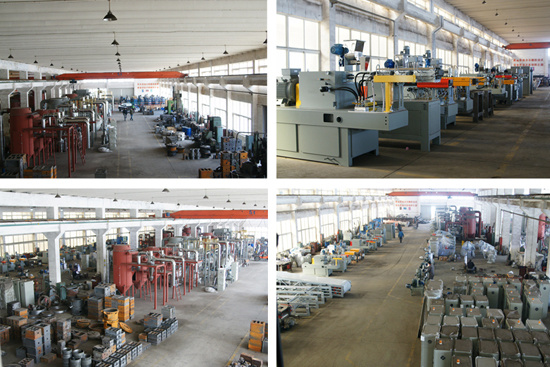

5. Workshop View:

We make powder coating machinery(blender for powder coating, twin screw extrusion machine, powder coating cooling conveyor, grinding equipment) part in our own factory to control the quality of the machine parts to make sure the machine's quality.

Powder Coating Extruder Manufacturer

6. Working Process

Powder Coating Machine

7. Our Advantage & Service:

-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.
-Formulation Provided (our advantage):
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.

We can supply all powder coating raw materials( polyester resin, epoxy resin, barium sulfate, gloss agent and so on) in the formulation.

8. Coating Show

Powder Coating Equipment


We sincerely welcome customers from all over the world come to visit and negotiation with us!
