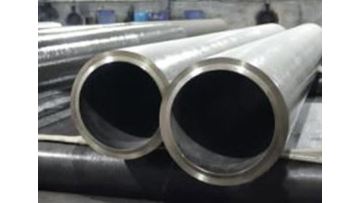

API GR.B seamless steel pipe

2 year ago

56 0

Hydrogrand Steel Pipe Co.,ltd

 2 year year

Product details

GR.B is one of the commonly used grades specified in API 5L. It has a minimum yield strength of 35,000 psi (240 MPa) and a minimum tensile strength of 60,000 psi (415 MPa). Grade B pipes are suitable for applications where the focus is primarily on mechanical properties and general-purpose fluid transportation.

API 5L GR.B seamless steel pipe undergo stringent quality control measures during manufacturing to ensure compliance with the specified API 5L requirements. This includes testing for dimensions, mechanical properties, chemical composition, non-destructive testing, and visual inspection.

API 5L Grade B seamless carbon steel pipe is a common grade pipe for oil and gas pipeline transmissions. It also called L245 Pipe refer ISO 3183, named by minimum yield strength 245 Mpa (355,000 Psi). Equivalent material ASTM A106 B or ASTM A53 B, which have similar value on chemical composition, mechanical properties, and applications.

STANDARD OF API 5L GR.B seamless pipe

Standard	Grade	Chemical Composition(%)				Tensile STrength(min)	Yield Strength(min)
Standard	Grade	C Mn P S				Mpa	Mpa
API 5L PSL1	A	0.22	0.90	0.030	0.030	335	210
	B	0.28	1.20	0.030	0.030	415	245
	X42	0.28	1.30	0.030	0.030	415	290
	X46	0.28	1.40	0.030	0.030	435	320
	X52	0.28	1. 40	0.030	0.030	460	360
	X56	0.28	1.40	0.030	0.030	490	390
	X60	0.28	1.40	0.030	0.030	520	415
	X65	0.28	1.40	0.030	0.030	535	450
	X70	0.28	1.40	0.030	0.030	570	485
Standard	Grade	Chemical Composition(%)				Tensile STrength	Yield Strength
Standard	Grade	C Mn P S				Mpa	Mpa
API 5L PSL2	B	0.24	1.20	0.025	0.015	415-655	245-450
	X42	0.24	1.30	0.025	0.015	415-655	290-495
	X46	0.24	1.40	0.025	0.015	435-655	320-525
	X52	0.24	1. 40	0.025	0.015	460-760	360-530
	X56	0.24	1. 40	0.025	0.015	490-760	390-545
	X60	0.24	1. 40	0.025	0.015	520-760	415-565
	X65	0.24	1.40	0.025	0.015	535-760	450-600
	X70	0.24	1.40	0.025	0.015	570-760	485-635
	X80	0.24	1. 40	0.025	0.015	625-825	555-705

DIMENSION TOLERANCES OF API 5L GR.B carbon seamless steel pipe

Types	Types		Uses
Hot rolled	OD	<50	±0.50mm
	OD	≥50	±1%
	WT	<4	±12. 5%
		≥4~20	+15%, - 12. 5%
		>20	±12. 5%
Cold drawn	OD	6~10	±0. 20mm
		10~30	±0. 40mm
		30~50	±0. 45
		>50	±1%
	WT	≤1	±0. 15mm
		>1~3	+15%, - 10%
		>3	+12.5%, - 10%
