Our company:
Ningbo Langsun Tungsten Carbide Co. Ltd is an industry and trade integrated company, with its factory located in the center of inland mountainous areas, facilitating the transportation of raw materials. Thus minimizing transportation costs. Most importantly, the requirements for the service life of mechanical equipment in various industries have greatly increased. And it is troublesome to replace the entire equipment or its components, which can reduce work efficiency. The technical department of our factory has hired experts who have studied tungsten carbide for decades. With their efficient guidance and the advantages of tungsten carbide itself, the quality is superior to other materials from any perspective. Moreover, if customers have any special requirements for the product, we will convey them, and they will carefully consider the composition ratio to ensure that customers are satisfied with the performance of the product.
Material composition:
Tungsten carbide material specification
|
Grade |
Binder (Wt %)Cobalt |
Density (g/cm3) |
Hardness (HRA) |
TRS (>N/mm²) |
Grain Size(μm) |
|
YG6 |
5.8-6.3 |
14.6-15.0 |
89.5-91 |
1800 |
0.8-2.0 |
|
YG6X |
5.8-6.3 |
14.4-14.7 |
90.5-91.5 |
1650 |
0.6-1.0 |
|
YG8 |
7.5-8.2 |
14.4-14.7 |
89.0-90.5 |
2200 |
1.0-1.5 |
|
YG11 |
11.0-11.5 |
14.2-14.4 |
87.0-88.5 |
2800 |
1.0-2.0 |
|
YG11C |
11.0-11.5 |
14.2-14.4 |
86.0-88.0 |
3000 |
1.0-2.5 |
|
YG15 |
14.5-15 |
13.9-14.0 |
86.0-88.0 |
3300 |
1.0-2.0 |
|
YG20 |
20.0-20.5 |
13.2-13.5 |
84.0-85.0 |
3400 |
1.0-2.0 |
|
YG20C |
20.0-20.5 |
13.2-13.5 |
83.0-85.0 |
3600 |
1.0-2.5 |
|
K05VF |
4.5-5.0 |
14.6-15.0 |
92.5-93.0 |
1500 |
0.6-1.0 |
|
K10VF |
5.5-6.2 |
14.5-14.7 |
91.5-92.5 |
1550 |
0.6-1.0 |
|
K20VF |
7.5-8.0 |
14.5-14.7 |
90.5-91.5 |
1800 |
0.6-1.0 |

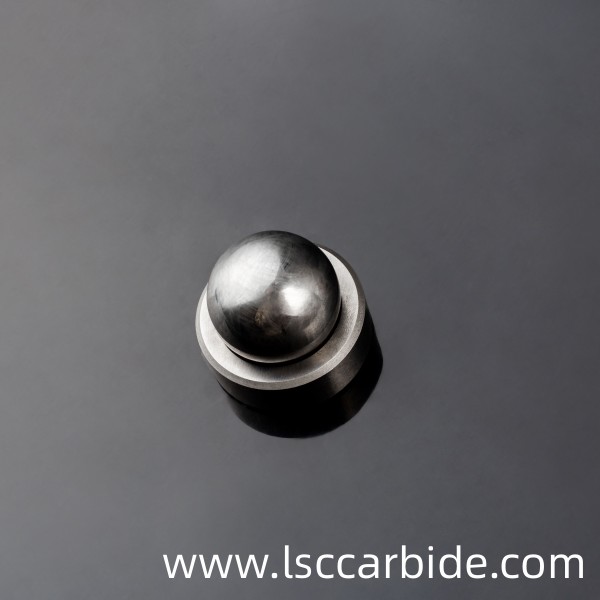

As we all know, tungsten carbide materials have excellent hardness and wear resistance, but if tungsten carbide is processed using brazing technology, the sealing performance of Carbide Brazed Parts will greatly improve. As an important component for controlling flow, Brazing Tungsten Carbide Valves have very strict standards for air tightness. Carbide Brazed valve has excellent sealing effects and is an ideal material in the eyes of many customers. In addition, Brazing Valves are widely used in corrosive liquid containers due to their excellent corrosion resistance.
Highlights:
1. Outstanding chemical stability
2. Ultra-toughness and hardness
3. Good corrosion resistance
4. Timely delivery
Advantages:
In addition to the above, the heat resistance of Carbide Brazed Parts goes without saying. Brazing technology itself requires operating at extremely high temperatures, and the final product's heat resistance is more resistant to high temperatures than ordinary processed products. Many high-temperature parts of automobiles and water pumps require the use of brazed valves to increase their service life.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
ORIFICE RINGS AND BOTTOM SLEEVES,
TUNGSTEN CARBIDE SEAL RINGS,
TUNGSTEN CARBIDE VALVE AND SEAT ,
TUNGSTEN CARBIDE NOZZLE,
CARBIDE CENTRIFUGE TILES,
CARBIDE WEAR PARTS
