Our company:
Ningbo Langsun Tungsten Carbide Co., Ltd. produces high-performance carbide tools. Our factory's tungsten carbide manufacturing experts have an average of over ten years of work experience in this manufacturing industry, and they have strong control capabilities for powder ratios of different quality specifications, capable of making the best products possible.
Material composition:
Tungsten carbide material specification
|
Grade |
Binder (Wt %)Cobalt |
Density (g/cm3) |
Hardness (HRA) |
TRS (>N/mm²) |
Grain Size(μm) |
|
YG6 |
5.8-6.3 |
14.6-15.0 |
89.5-91 |
1800 |
0.8-2.0 |
|
YG6X |
5.8-6.3 |
14.4-14.7 |
90.5-91.5 |
1650 |
0.6-1.0 |
|
YG8 |
7.5-8.2 |
14.4-14.7 |
89.0-90.5 |
2200 |
1.0-1.5 |
|
YG11 |
11.0-11.5 |
14.2-14.4 |
87.0-88.5 |
2800 |
1.0-2.0 |
|
YG11C |
11.0-11.5 |
14.2-14.4 |
86.0-88.0 |
3000 |
1.0-2.5 |
|
YG15 |
14.5-15 |
13.9-14.0 |
86.0-88.0 |
3300 |
1.0-2.0 |
|
YG20 |
20.0-20.5 |
13.2-13.5 |
84.0-85.0 |
3400 |
1.0-2.0 |
|
YG20C |
20.0-20.5 |
13.2-13.5 |
83.0-85.0 |
3600 |
1.0-2.5 |
|
K05VF |
4.5-5.0 |
14.6-15.0 |
92.5-93.0 |
1500 |
0.6-1.0 |
|
K10VF |
5.5-6.2 |
14.5-14.7 |
91.5-92.5 |
1550 |
0.6-1.0 |
|
K20VF |
7.5-8.0 |
14.5-14.7 |
90.5-91.5 |
1800 |
0.6-1.0 |
Value:

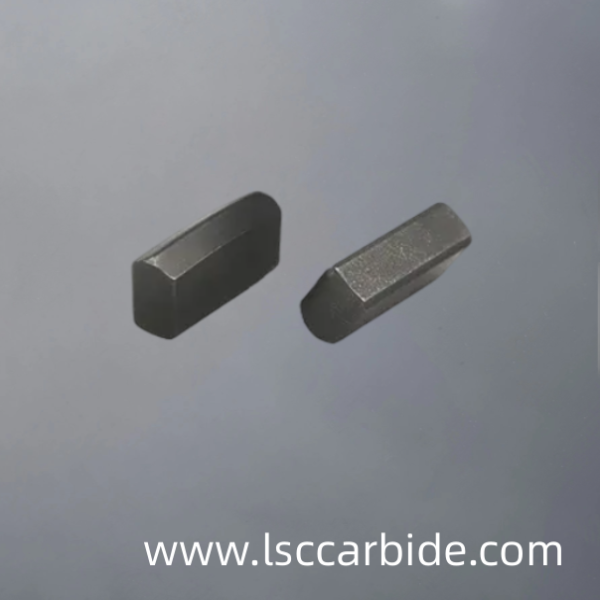

Brazing Tungsten Carbide finds extensive use in the metalworking industry, particularly in turning, milling, and drilling operations. Their exceptional hardness and wear resistance deliver superior cutting performance and prolonged tool life. Carbide Brazed can effectively machine a wide range of materials, including steel, cast iron, stainless steel, and high-temperature alloys.
Highlights:
1. Superior solidity and durability inside the tools
2. Strict control on quality inspections and supply chain
3. Exceeding temperature and compressive resistance
4. Offered tailored service to all items
Advantages:
Carbide Brazed Parts ability to withstand high cutting forces, retain sharp edges, and resist heat ensures consistent and efficient metal removal, resulting in improved productivity and reduced tool replacement costs.
