JYD Blade Paddle Dryer

JYD Blade Paddle Dryer

2 year ago

63 0

Jiangsu Stord Works Ltd.

 2 year year

Product details

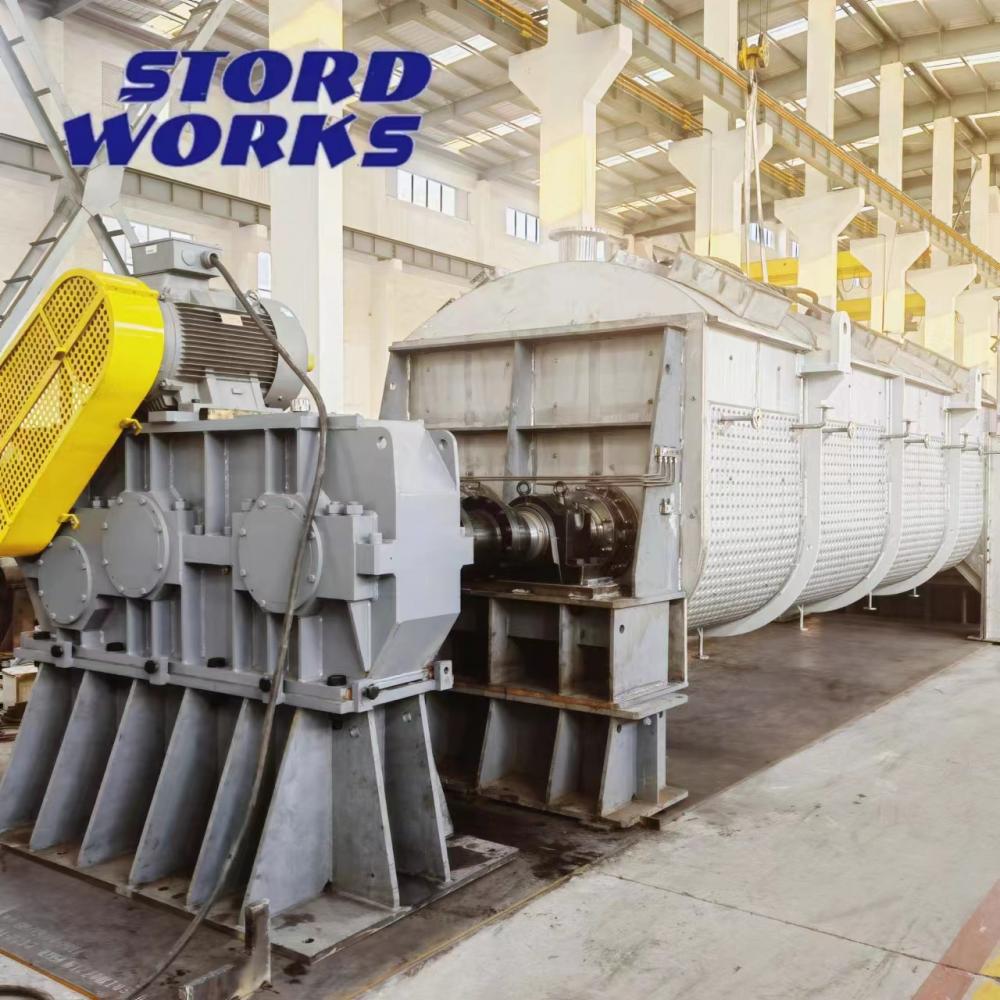

Indirect steam heating blade paddle dryer for sludge

Product description

JYD blade paddle dryer can heat not only by the shell but also by the internal rotor, greatly increasing the drying area, improving the thermal efficiency and ensuring the complete drying of materials. There are two or more mutually inlaid rotors inside the shell with a jacket, and each rotor is equipped with multiple fan-shaped hollow blades for heating. The heating medium enters a hollow drive shaft and a blade through the rotary joint installed at the end of the hollow drive shaft. After heat transfer and drying, condensate is discharged out of the machine through the rotary joint. The equipment has the following characteristics:

1.Low energy consumption:Heat istaken away without carrying a large amount of air due to indirect heating, jackets and insulation layers are arranged at the external wall of the dryer, and for slurry material, evaporating 1kg of water only needs1.1-1.3kg of saturated steam.

2.Lowcost: multiple shaft are inlaid mutually, transfer area is large, and the equipment is smaller in size.

3.Wide range of drying materials: different thermal media can be used to dry heat-sensitive materials and materials requiring high temperature treatment. Commonly used media: saturated steam, conduction oil, hot water, etc. It can be operated continuously or intermitiently, finding applications in many fifields.

4.Low operation cost: simple structure and low maintenance cost.

5.The equipment is featured with fewer wearing parts and stable operation.

Model	Area(m2)	Capacity(t/h)	Total power(kw)	Conduction oil &steam(ºC)	Dimmension(mm)			Total weight of equipment(t)
Model	Area(m2)	Capacity(t/h)	Total power(kw)	Conduction oil &steam(ºC)	L	W	H	Total weight of equipment(t)
JYD-5	20	5	7	0~200	4800	900	900	2.5
JYD-10	40	10	11	0~200	6000	1300	1300	5.2
JYD-15	60	15	23	0~200	6800	1500	1500	9
JYD-20	80	20	30	0~200	6900	1600	1600	11
JYD-25	100	25	44	0~200	7500	1700	1700	13
JYD-40	160	40	70	0~200	8900	2200	2400	18
JYD-50	200	50	90	0~200	9200	2300	2500	22
JYD-60	250	60	150	0~200	11000	2800	2800	32

Paddle Dryer 2
