Product details

Product Description

Electrostatic Precipitator for Commercial Kitchen is ideal for the removal of grease and smoke from cooking applications. Its three-stage ESP electrostatic technology and unique patented dual high pressure package design to enhance overall purification performance and service life. This product can be matched with PDP deodorizer, automatic cleaning machine according to the actual needs from customers. It is one of the best quality and ideal fume purification solutions for most commercial catering restaurants.

Product's Name	Electrostatic Precipitator	Model No.	KH-4000	Power Supply	220V/50HZ
Max.Power	0.4KW	Air Volume	4000M³/H	Purifying Rate	95%
N.W./KGS	65KGS	Standby Power	Less than 10W	Product Size	725X550X640MM
Size of Electric Field	600X480X340MM	Wind Resistance	Less than 180Pa	Flange Size	470X510MM

Main Features of LIVEWELL ELECTROSTATIC PRECIPITATORS :

1. High efficiency: 95% of purification efficiency, suitable for low-altitude smoke discharge and odour removal

2. Safe: power supply overloading protection, power-off on opening, with Radiator Fan

3. Durable: good steel with thickness 1.5mm

4. Convenient: block-based design , easy to install and maintenance.

5. Elegant: humanization desigh

Electrostatic Smoke Precipitator/Kitchen Exhaust

Specifications:

Item NO.	KHH-4000	KHH-8000	KHS-8000
Product size （mm）	675×725×590	675×1325×590	1450×880×640
Electric field size （mm）	380×600×480X1PCS	380×600×480X2PCS	380×600×480X2PCS
Flange size （mm）	580×525	1110×525	1110×525
volume （m3/h）	4000	8000	8000
Air speed （m/s）	4	4	4
Purifier rate	95%	95%	95%
Power supply	220VAC 50/60HZ	220VAC 50/60HZ	220VAC 50/60HZ
Rated power （W）	200	200	200
actual power （W）	77	154	154
Resistance (Pa)	≤180	≤180	≤180
Operating temperature (℃)
Equipment weight (KG)	65	120	180
Electric field materia	Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm
Filter	S-type honeycomb pre-filter, activated carbon post-filter (optional)
Security configuration	Open the door and power off, radiator

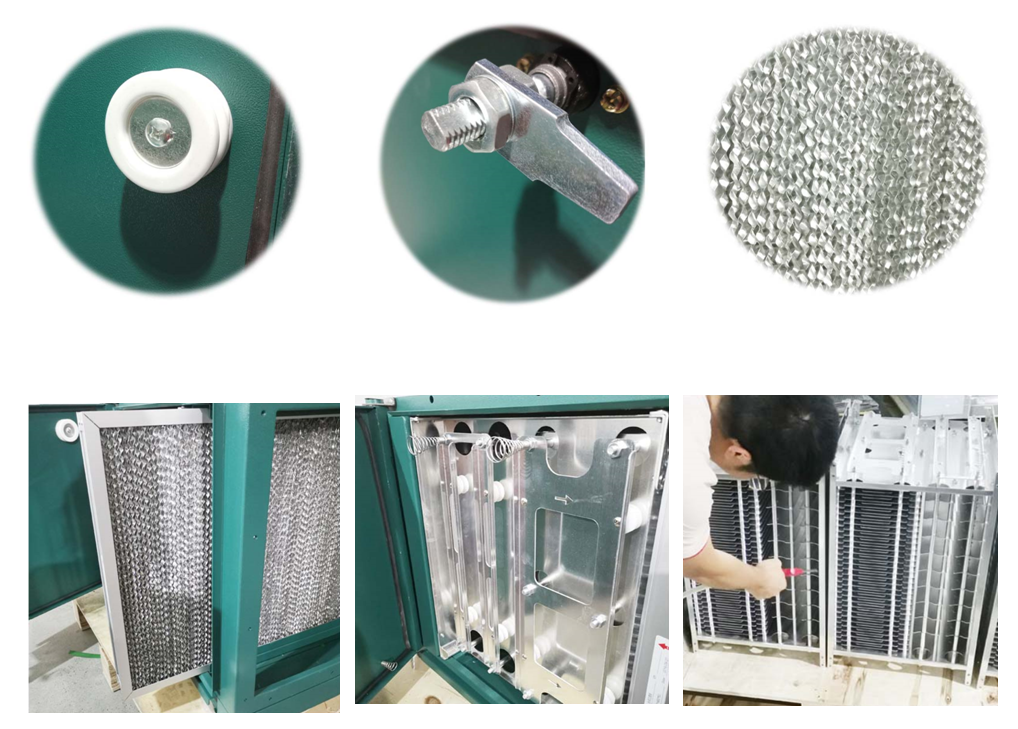

More Pictures of ElectroStatic

Latest Electrostatic Catering Smoke Filter In Restaurant Kitchen3

Commercial Kitchen Electrostatic Precipitator Fume Cleaning System

Complete Five Stages:

1. PDP25 Intelligent Odour Elimination (VOCs oxidation )

2. 3-stages of ESP purification (12000V Needle Ionizers, 12000V Plasma Discharge , 6000V ESP dust collection )

3. Intelligent Auto Wash (bio-enzyme treatment), in order to protect ESP filter working perfectly.

4. Smart Monitor for Real-time monitoring and smart warning.

5. Blue Eye Platform for sharing cloud data.
