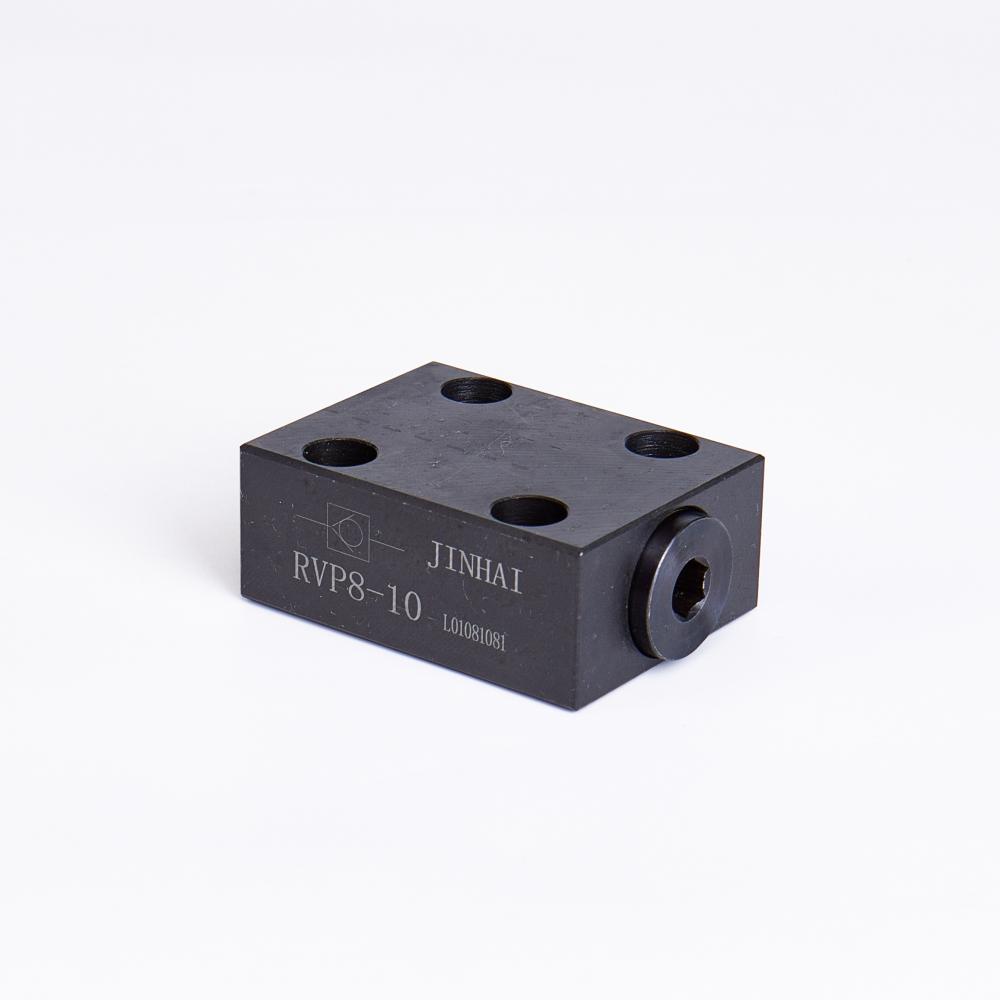

RVP8-10 is a model plate type check valve belong to Rexroth,it is belong to RVP Series Directional Valves below is relevant specic introduction:
Technique parameter:
According to the data from Chemical instrument Network, the maximum operating pressure of the RVP8-10 check valve can reach 31.5MPa, the opening pressure is 0.05Mpa, and the rated flow rate is 50L/min.
Usage scenarios:
Widely used in hydraulic system, such us the exit of hydraulic pump, in case high pressure of lead that oil return to damage hydraulic pump;Can also be used to isolate unnecessary connections in the oil circuit, use its good sealing performance to achieve pressure retention function, etc. It can also be used as a composite valve with other components, such as one-way throttle valve, one-way sequence valve.
Jinhai is professional manufacturer of Various types of Directional Valves, Flow Valves, Pressure Valves and Accessories, Should you have any questions please feel free to come back to us.
1. Valve body
2. Taper valve core
3. Spring
4. Spring seat
5. Plug screw
6. O ring
7. Bonded washer
