Size (NG) 6-22 pressure to 31.5MPa flow to 360L/min
- Connection dimensions according to DIN 24340
- One or two working oil ports can be sealed without leakage, optional
-suitable for vertical stacking
Jinhai is professional manufacturer of Various types of Directional Valves, Flow Valves, Pressure Valves and Accessories, Should you have any questions please feel free to come back to us.

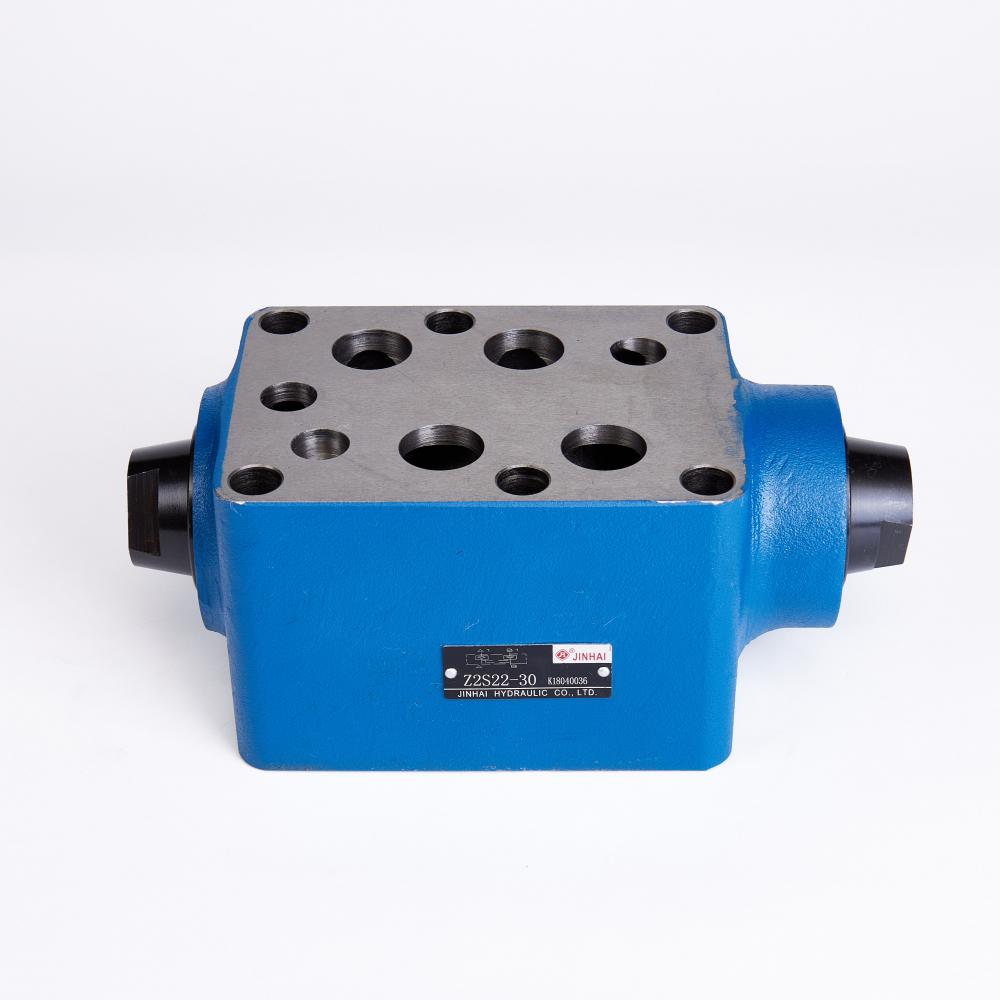

Z2S type check valve is a superimposed hydraulic control check valve, it can be used to close one or two working oil ports, no leakage for a long time, good stability, free flow of oil from A to A1 or B to B1, Reverse is blocked. If the oil flow through the valve, eg from A to the pressure oil acts on the valve core (1), the valve moves to the right and pushes the ball (2) off the valve seat. A1, when the one-way valve (3) is opened by the controlled oil, the oil can flow from B1 to B. The pressure is unloaded in the B1 cavity, and the one-way valve (3) is fully opened.
In order to ensure that the two one-way valves can be closed reliably when the reversing valve is in the neutral position, the A and B ports of the valve are connected to the oil return line.
1- Valve core
2- Steel ball
3- Check Valve
Symbol
