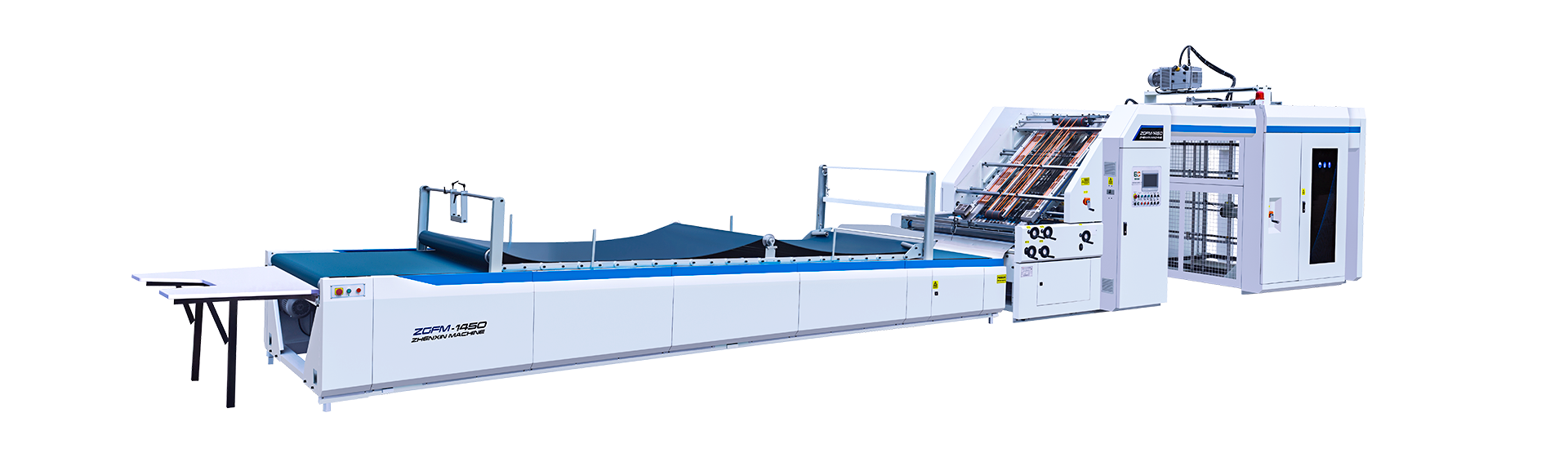

Automatic High Speed Flute Laminator
1.3 Principles:
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.
1.4 applicable materials:
Paste paper --- 120 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
Structural features:
Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.
Computerized high-speed fitting, up to 150m/min.
Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.
Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker
Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.
Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.
Parameters:
|
Model |
ZGFM1450 |
ZGFM1650 |
ZGFM1900 |
ZGFM-2200 |
|
Max size |
1500*15000mm |
1700*1700mm |
1900*1900mm |
2200*2100mm |
|
Min size |
360*380mm |
380*400mm |
450*450mm |
500*500mm |
|
Top Paper |
120-800g |
120-800g |
120-800g |
120-800g |
|
Bottom paper |
300gsm-10mm Corrugated board and cardboard |
300gsm-10mm Corrugated board and cardboard |
300gsm-10mm Corrugated board and cardboard |
300gsm-10mm Corrugated board and cardboard |
|
Max speed |
150m/min |
150m/min |
150m/min |
150m/min |
|
Power |
22kw |
25kw |
27KW |
30KW |
|
Stick accuracy |
±1.0mm |
±1.0mm |
±1.0mm |
±1.0mm |
BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

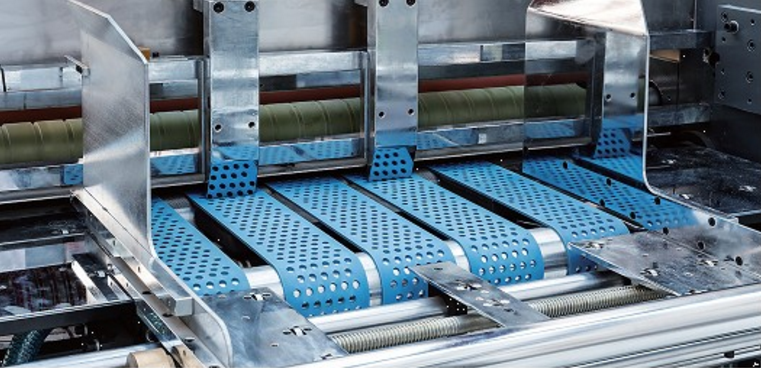

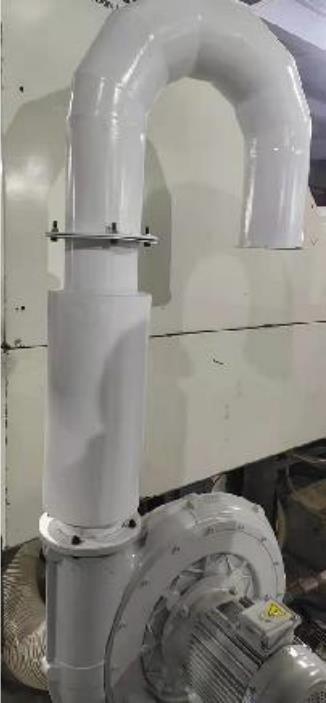

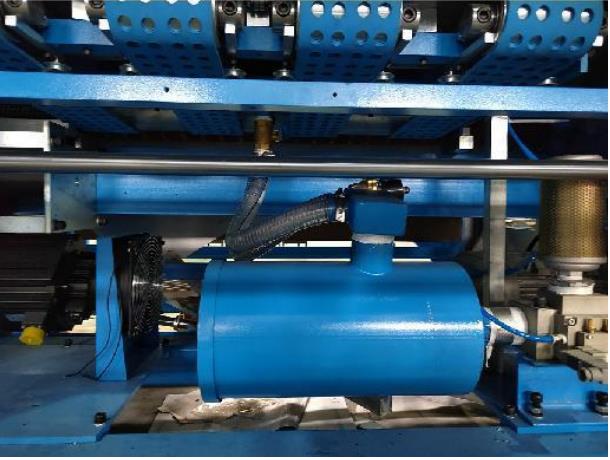

Use imported Servo motor electric controlling system, with Japan NITTA suction
belt to make suction power inverter, and belt cleaned by water roller; Patented
technology to ensure corrugate and cardboard goes out smoothly and simple operation.

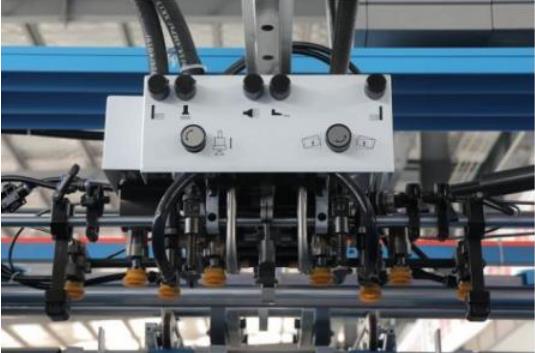

2. TOP SHEET FEEDING MECHANISM

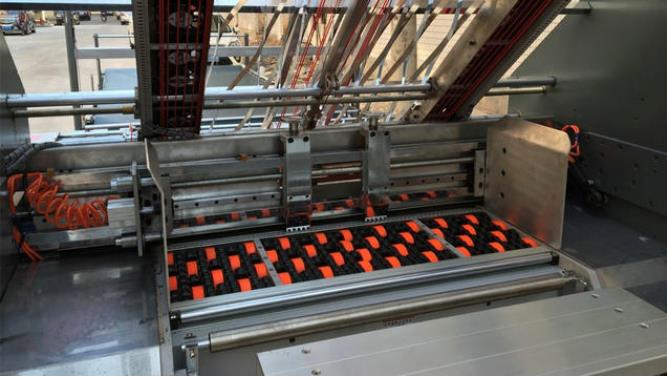

Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.

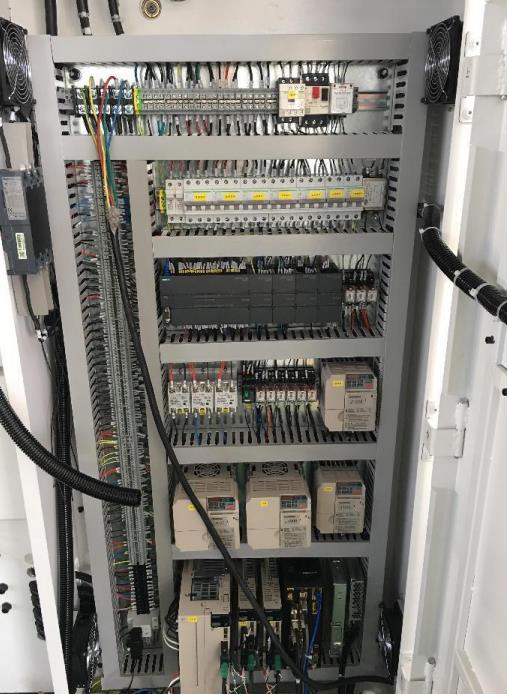

3. ELECTRICAL SYSTEM
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

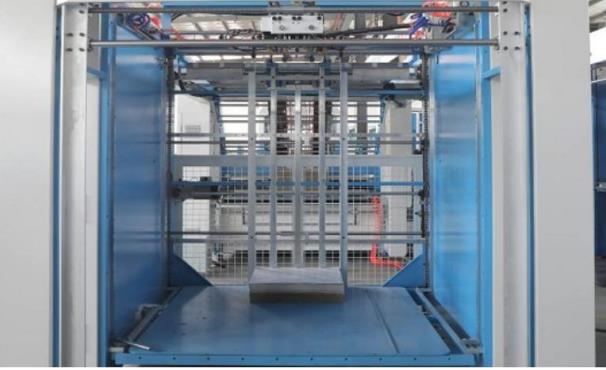

4. PRE-STACK PART
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.

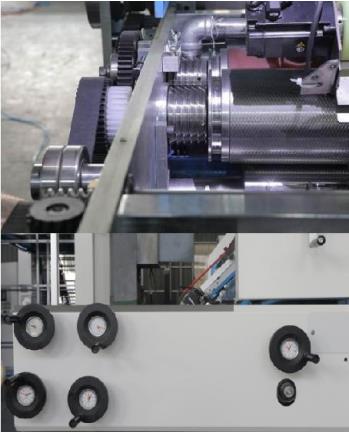

5. TRANSMISSION

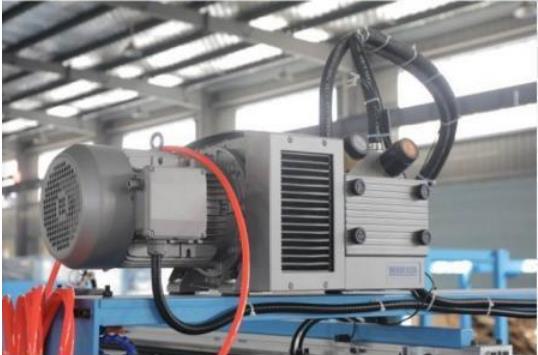

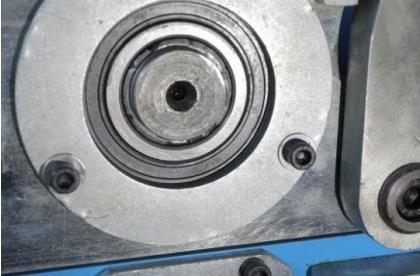

Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.

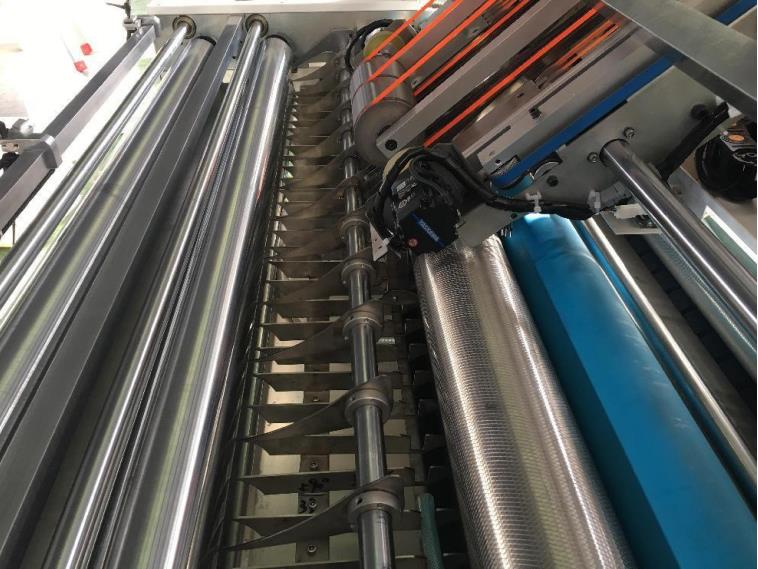

6. POSITIONING SYSTEM & GLUE ROLLER

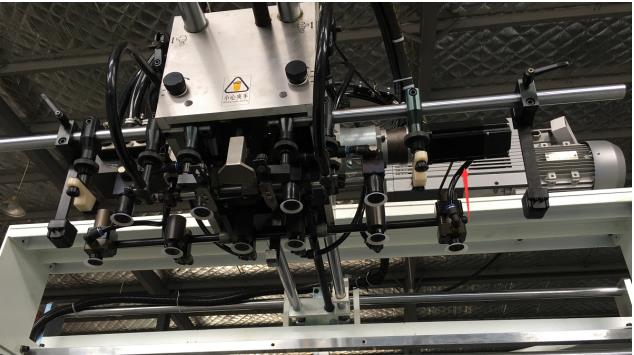

The use of multiple sets of photoelectric sensor at bottom sheets relative position,
control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

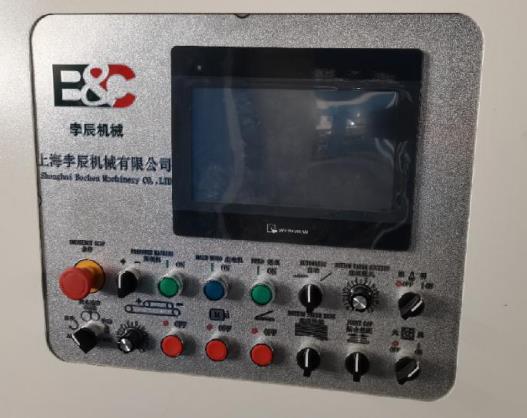

7. TOUCH SCREEN OPERATION SYSTEM
It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot

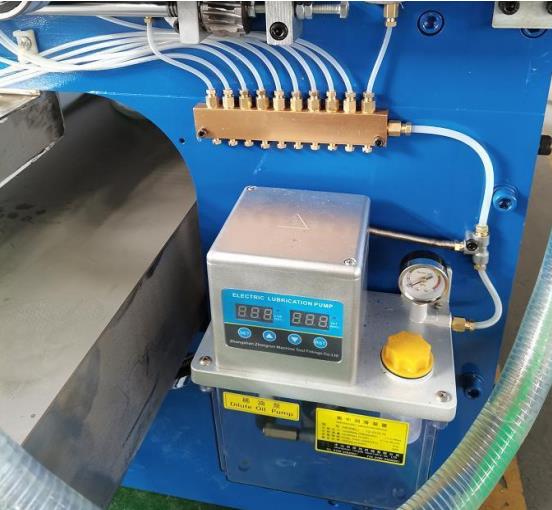

9. Automatic lubrication system.
This system can protect the bearing, and extend the life of the part.
10. SHAFTLESS SERVO FEEDER(OPTIONAL)
This system is for option, more suitable for long size top sheets.
11. LEADING EDGE FEEDING SYSTEM(OPTION)
This system is for option,more suitable for large size and thick bottom sheets.
If you are interested in the product, contact 2bvideo.com for more information for more information
