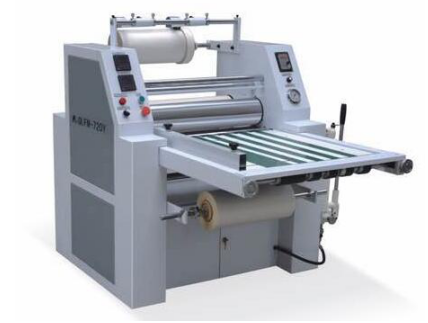

ZXFM-720/900/1000/1200
Hydraulic film laminating Machine (With slitting)
Usage:
This machine covers a small area, is operated conveniently, runs fast. It is equipped with automatic temperature-control and speed-regulation, automatic feeding. The machine could do the lamination both single side and double sides. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.
The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of widow packing paper boxes. Various books maps, pictures, certificates, holographic cellphone etc. After the above products are laminated, they have the feathers of water-resistance, clear graphic arts and strong three-dimensional sense.
Main Technical Parameter
|
Model |
ZXFM-720Y |
ZXMF-900Y |
|
Max. Laminating width |
650mm |
850mm |
|
Laminating speed |
0-20m/min |
0-20m/min |
|
Laminating temperature |
60-130°C |
60-130°C |
|
Motor power |
0.55kw |
0.75kw |
|
Power of electric heater |
2.4kw |
3.6kw |
|
Voltage |
380V |
380V |
|
Dimensions(L*W*H) |
1150*1100*1400mm |
1350*1100*1400mm |
|
Weight |
380KG |
500KG |
|
Pressure |
0-4Mpa |
0-5Mpa |
|
Model |
ZXFM1000Y |
ZXFM-1200Y |
|
Max. Laminating width |
980mm |
1150mm |
|
Laminating speed |
0-20m/min |
0-20m/min |
|
Laminating temperature |
60-130°C |
60-130°C |
|
Motor power |
0.75kw |
1.1kw |
|
Power of electric heater |
4.8kw |
5.4kw |
|
Voltage |
380V |
380V |
|
Dimensions(L*W*H) |
1550-1250*1450 |
1750*1250*1450mm |
|
Weight |
580KG |
650KG |
|
Pressure |
0-10Mpa |
0-10Mpa |
Packaging & Shipping
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Services
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
Company Information
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
FAQ
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
