Product details

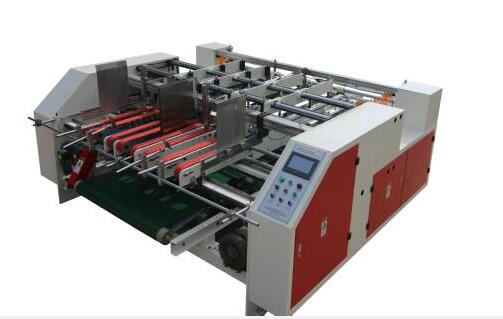

PX-2100 Semi automatic corrugated board folder gluer







Machine overview:

Semi-automatic corrugated box gluing machine is the most advanced equipment to fill the domestic manufacturers of corrugated box labor costs rising trend, the equipment has high efficiency, flexible operation, low maintenance costs, production efficiency and the traditional manual increase more than ten times. The advantages of this device is automatic feeding, dispensing, bonding. To meet the variety, mass production requirements, to adapt to food, cotton and other product packaging needs, is the ideal carton equipment, corrugated box industry, is the essential equipment for this scope.



Features:

This series of products made of mechanical plate, all using a large processing center to complete a processing to ensure the accuracy of the various stations to ensure that the equipment is more stable operation.



1. Feeding section: friction feeder, equipped with two separate motor independent drive, side panel width can be fine-tuned, with 3 adjustable Feeding knife and 3 small Feeding knife, there are 8 rubber tape which contains 4 suction belt, two separate control, retractable rear support can be used for longer box type, to ensure smooth paper delivery fast.

2. Glue part: to match the glue itself, the use of three groups of plastic system to ensure that the finished product qualified rate of 100%, double-slot flow of plastic road, to ensure the loss of glue invalid, improve costs, easy to disassemble, easy to clean.

3. Conveying part: Using of whole process close to the synchronization technology to ensure that the paper in the fast transport process does not run away.

4. Paper part: the use of photoelectric automatic sensor system, high sensitivity, to ensure that the machine speed block.

5. Pressed part: the use of three groups of cylinders and photoelectric automatic sensor system to ensure consistency and smooth.

6. Operating system: the human touch screen for the operation center and PLC connection will be warning, detection of fault, abnormal conditions and operating speed and other information displayed on the screen, at a glance, and can detect maintenance, work records, online real-time view of timely processing, truly reflect the efficiency.

7. Electrical system: the use of well-known brands at home and abroad, in accordance with the European CE standard design, careful manufacturing, to ensure that the whole stable, high efficiency, low failure.



Parameter:



Model

PX-2100

Max. finished size(expanded)

2100*1100mm

Min. finished size(expanded)

500*700mm

Number of workers

Two workers

Air pressure

0.4-0.6MPA

Power supply

380V AC 4P

Power

6.5KW

Max line speed

9200m/hour

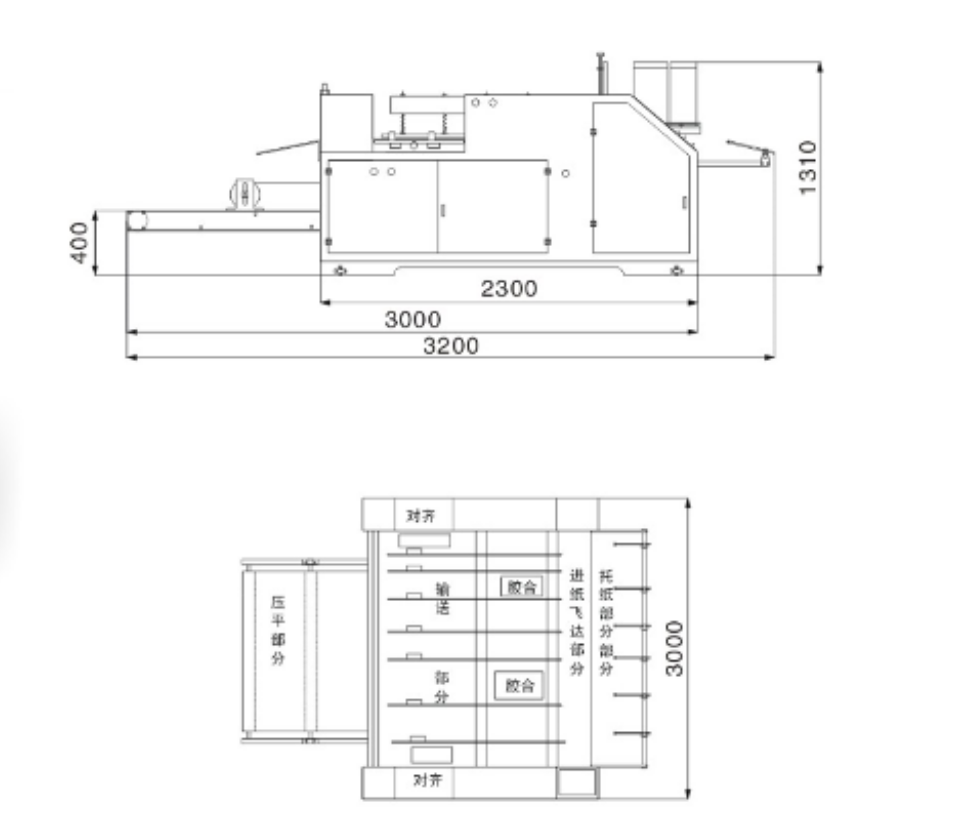

Overall dimension

3100*2900*1500mm

N.W.

2000KG



1



Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.



Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
