ULR11 1-3KVA 110VAC Rack Online UPS

2 year ago

58 0

Shenzhen Unitronic Power System Co., Ltd

 2 year year

Product details

Advantages of ULR Series Rack Online UPS:
1. Simple installation, convenient expansion, saving investment.
2. The rack-mounted UPS power supply enables the power supply system to adapt to demand, reducing the initial purchase cost of users.
3. Parallel redundancy, stable operation and high reliability.

It uses advanced PFC technology, including power 1KVA/1KW, 2KVA/2KW, 3KVA/3KW.

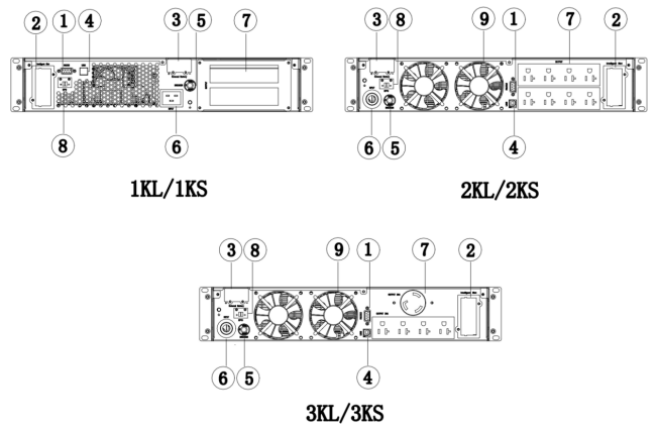

Rack online UPS

① RS232 ⑥ AC input

② Smart slot ⑦ Output socket

③ External battery connection port ⑧ EOP

④ USB ⑨ Fan

⑤ Input over current breaker

Model	ULR1101KS	ULR1101KL	ULR1102KS	ULR1102KL	ULR1103KS	ULR1103KL
Capacity	1kVA/1kW		2kVA/2kW		3kVA/3kW
Input
Nominal Voltage	100/ 110/115/120/127Vac, L+N+PE
Voltage Range	55~150Vac
Frequency Range	40~70Hz
Power Factor	≥0.99
THDi	≤4% (linear load); ≤5% (non-linear load)
Output
Nominal Voltage	100/ 110/115/120/127Vac, L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz ± 0.1%
THDu Hamonic Distrotion	≤2% (linear load)；≤5% (non-linear load)
Transfer Time	Zero
Waveform	Pure sine wave
Overload Capacity (Line Mode)	102%~110% load, 10min; 110%~130% load, 1min; 130%~150% load, 10s; >150% load, 200ms
Overload Capacity (Battery Mode)	102%~110% load, 1min; 110%~130% load, 10s; 130%~150% load, 3s; >150% load, 200ms
Crest Factor	3:1
Efficiency
Line Mode	93.5%		94.5%		94.5%
Battery Mode	89.5%	90.5%	92.5%	93.5%	93.5%	92.5%
ECO Mode	98%
Battery
Battery Voltage	24Vdc	36Vdc	48Vdc	72Vdc	72Vdc	96Vdc
Battery Number	9Ah*2pcs	External	9Ah*4pcs	External	9Ah*6pcs	External
Charging Current	1A	1-12A settable	1A	1-12A settable	1A	1-12A settable
Communication
Interface	RS232 /USB/ SNMP card (optional) /Dry contact card (optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%(non-condensing)
Noise	≤50dB @ 1 meter away
Altitude	Up to 1000 meters without derating
Physics
Dimensions (WDH)mm	44042586	44042586	44058886	44047086	44073386	44047086
Weight (kg)	9	4.5	19	10	25	11
