Product details

Operation principle:
The closed cooling tower cools down fluid with the principle of water evaporation absorbing heat. Spray water is started at the bottom of the cooling tower and working fluid circulates in the radiator coil of the closed cooling tower. Spray water distribution system and spray nozzle with spray system pump,where some water is evaporated and heat is absorbed, so the temperature of working fluid in pipe is reduced. Water in hot air and unevaporated water is stopped by a manger and flows through PVC heat exchange layer where the water is cooled down by flowed water and falls in water pond at the bottom.Then the water is recyclingd to the water distribution system with the water pump and returns to spray on coil pipes.Circulating cooling is conducted repeated in such way.

Product features:

Apply combined flow type cooling way with high-efficiency dewaterer and low drift water rate.

Cooling medium circulates closely with no impurities entering,ensuring the pureness of the medium.

The circulating water applies soft water,which won't scale or block pipeline.

Spray the outerwall of the condenser wet completely with spray water,avoiding forming scale at dry points and improving the system effiency to the highest degree.

Cover a little area and can be moved and laid according to the requirement,maintenance cost is low.

Composite flow type cooling tower is energy-saving type cooling tower of which the water in the condenser can flow back to the water tank to ensure the equiment won't be freezen off when the equipment doesn't operate in lower temperature in northern area.

Automatic digital vision temperature control,saving energy and protecting environment.

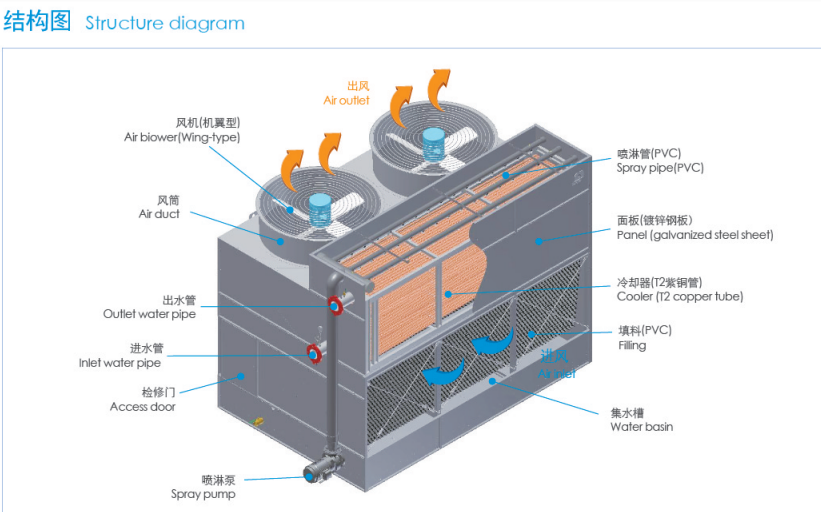

FBF dan jiegou

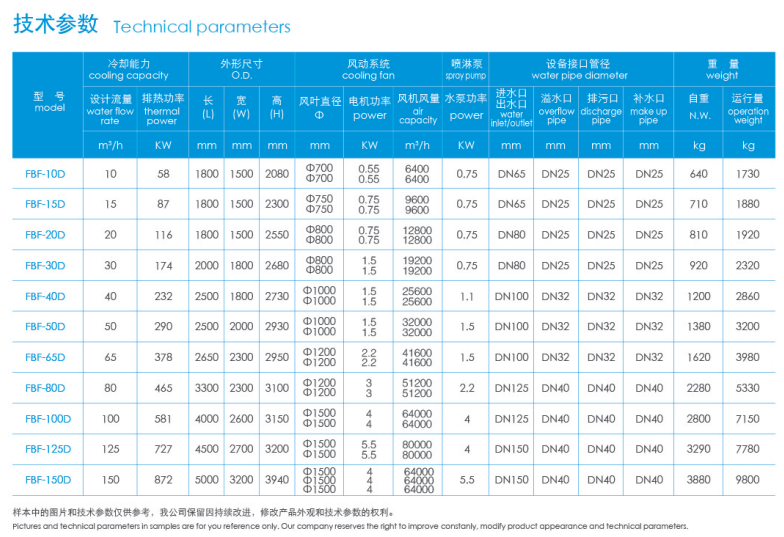

canshu
