Product details

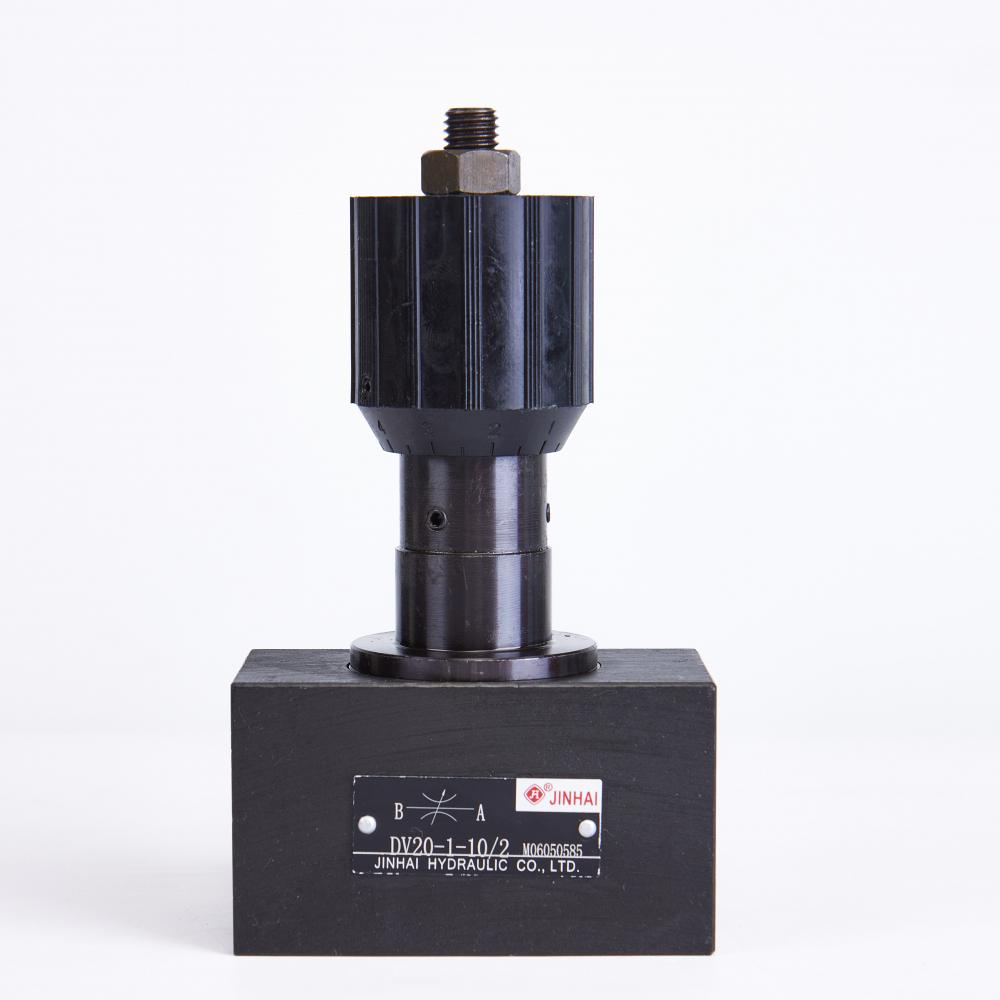

DV20-1-10/2 is a type one-way throttle valve, it is a valve which is used to control flow fluid, below is relevant introductions:

Working principle:

Control fluid flow by changing the throttle section or throttle lenth. When the fuid flows forward, it is throttled through the throttle valve; when it flows reversely, the check valve opens and no throttling occurs.

Instruction composed

It includes main body 、valve seat、 and conical cylindrical valve core.The valve body is equipped with a throttling port and a conducting port;Valve seat is inside the valve,it has valve cavity, the valve seat and the valve body are connected by a necked seal, and the waist of the valve seat is provided with a plurality of through holes;the valve core is installed in the valve seat cavity, and is used to slide back and forth along the valve seat cavity to block or stay away from the through holes, and has a valve core head and a throttling hole running through the valve core.

Jinhai is professional manufacturer of Various types of Directional Valves, Flow Valves, Pressure Valves and Accessories, Should you have any questions please feel free to come back to us.

Details

Dv20 Throttle Valve 1 Part Number Selection List Structure Technical Specification
