Dyehome manufactures a wide range of durable, rugged and highly reliable stretch wrapping machines to help you protect your valuable product. Let us help you determine the best machine for your application and budget. Depending on your product and pallet wrapping needs, Dyehome offers semi and fully automatic models in turntable, rotary tower and orbital configurations.
Dyehome specializes in manufacturing automatic stretch wrappers and semi-automatic pallet wrapping machines. With over 14 years of experience, you can count on the stretch film machinery from Dyehome. If you`re looking for durable equipment to meet your industry needs, look to Dyehome. The rugged and effective stretch film machinery is manufactured to help you protect each of your products. Taking the risk out of shipping, every product you produce will remain secure and safe for customer satisfaction. When you choose our automated wrapping machine and pallet wrapping machinery, you get durability and reliability with every use.
Luggage & Carton Wrapping Machine ,Horizontal Wrapping Machine,Reel Wrapping Machine,Mini Carton Wrapping Machine,Vertical Ring Wrapping Machine,Rotary-arm Stretch Wrapping Machine,Mechanical Coil upender,Hydraulic Coil upender

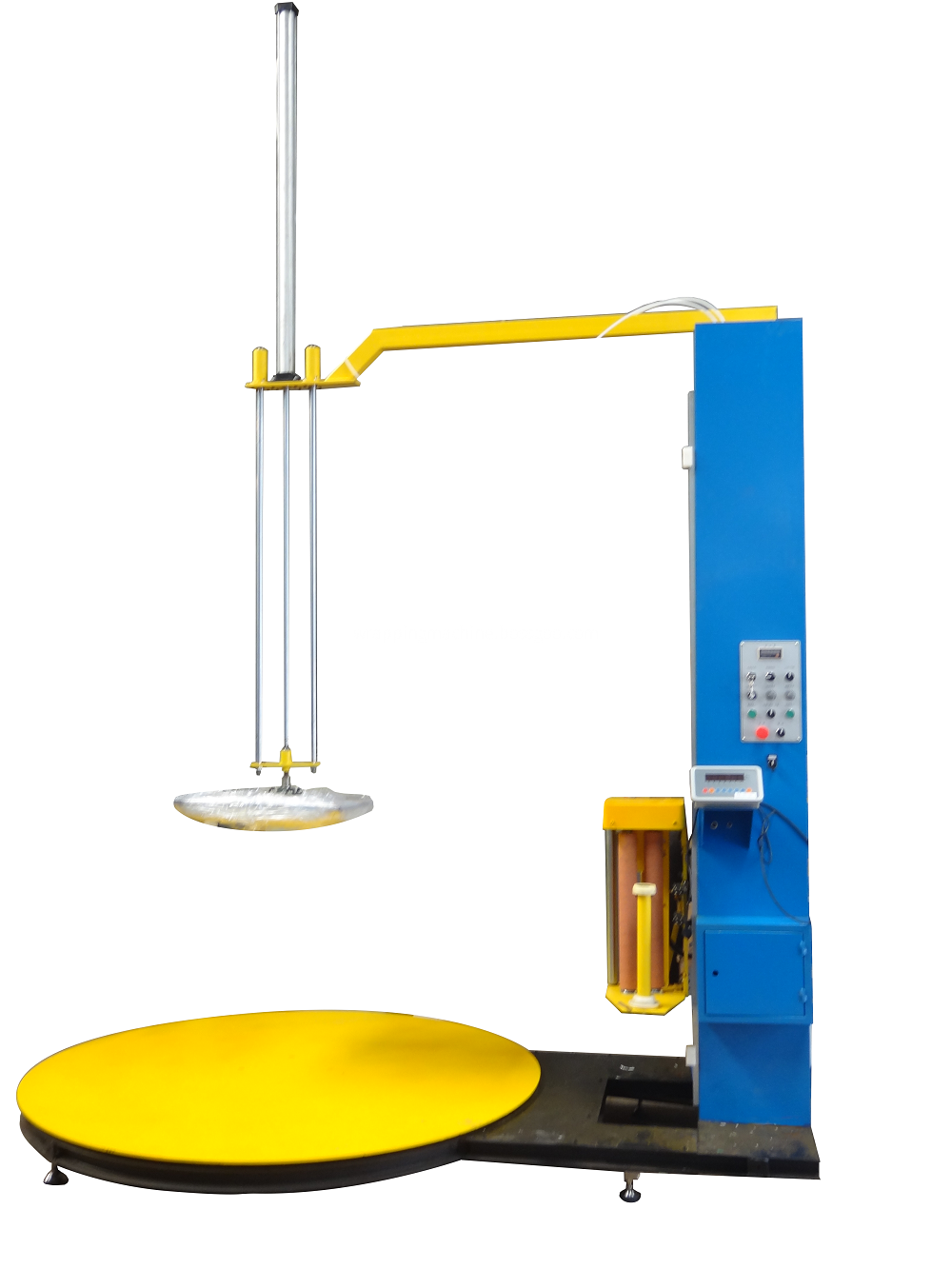

Electrical type top Plate Pallet Wrapper
With top plate,it can ensure the light pallet loads wrapping steady.The top plate control by the motor.Also the machine can control by the pneumatic.
Check the picture in the below:
Performance and features
Manual operation
Packing height control with limiting switch
Adjustable Mechanical brake film carriage
Manual carriage up/down,turntable start buttons
Base front & rear forklift slots allow forklift truck to move the machine safely and easily
Turntable soft start /soft stop
Turntable heavy duty chain drive
Minimum maintenance
Electric or pneumatic top plate(20kg/adjustable)
Optional parts
♦Ramp
♦Electromagnetic clutch
♦Turntable diameter1500mm/1800mm/2000mm
♦Turntable capacity2500kg/3000kg
Technical parameter
|
T1650SB Manual pallet wrapper |
|
|
Size of the product to be wrapped |
|
|
Min.load size |
L500mm*W500mm*H500 mm |
|
Max.load size |
L1200mm*W1200 mm |
|
Max.load height |
2400mm (Option: 2800mm, 3000mm) |
|
Max.weight |
2400kgs (Option: 2500kgs, 3000kgs) |
|
Film Carriage |
|
|
Carriage |
Mechanical brake film carriage |
|
Machine Specification |
|
|
Turntable rotation speed |
3-12 rpm adjustable |
|
Turntable diameter |
1650mm |
|
Turntable height |
78mm |
|
Carriage Up/down speed |
Adjustable |
|
Voltage |
220 V 1 Ph |
|
Power |
1.2KW 50HZ |
|
Packing efficiency |
20-40 loads/hour |
|
Forklifting |
Front & Rear |
|
Machine size |
L2745mm*W1650mm*H2860mm(Standard) |
|
Machine weight |
550kg |
|
Stretch Film Roll detail |
|
|
Max.external diameter |
230 mm |
|
Internal diameter |
76 mm |
|
Film roll height |
500 mm |
|
Film thickness |
17-35 µm |
|
Option
|
|
|
Ramp |
|
Machine video on Youtube:
https://www.youtube.com/watch?v=Tu1bmp09XdY
