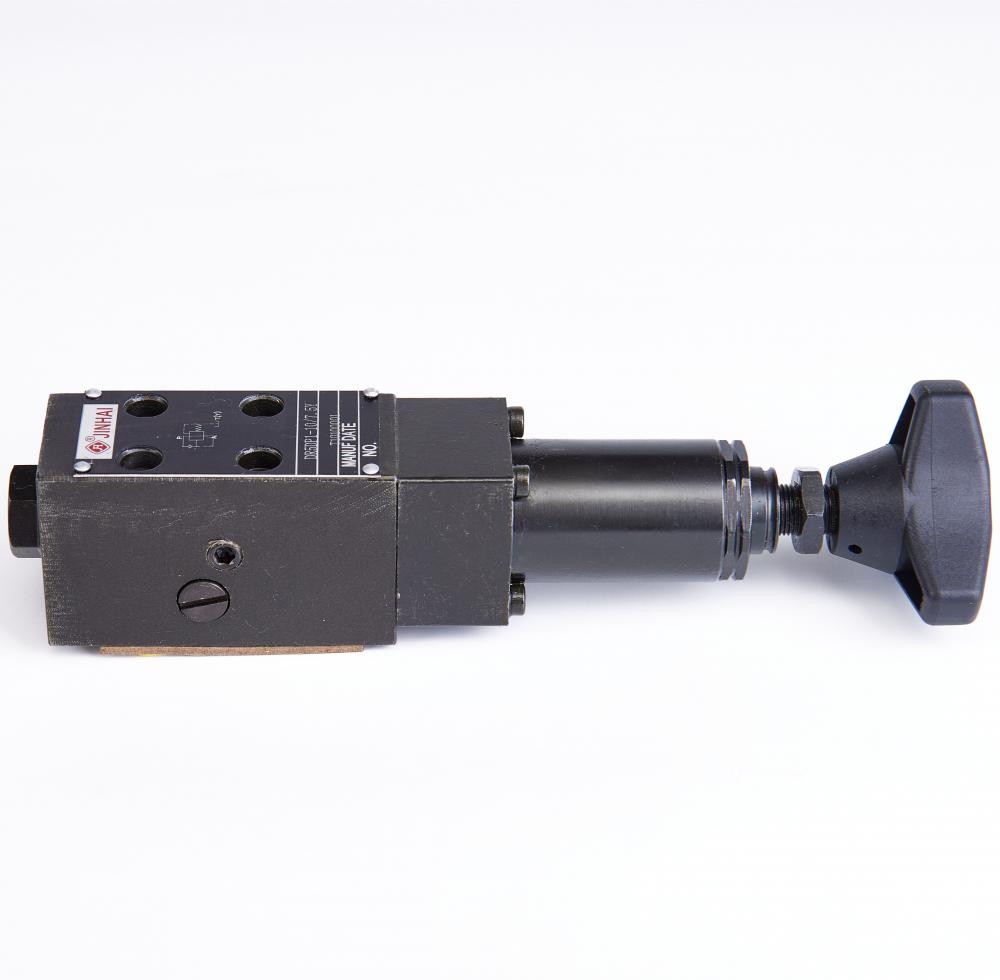

The DR5DP valve is a three-way direct-acting pressure reducing valve, which has an overflow function on the pressure reducing side to ensure the stability of the secondary pressure. It is used for circuit decompression.
Direct acting structure pressure control valve
Mounting surface complies with DIN24340A type and ISO4401

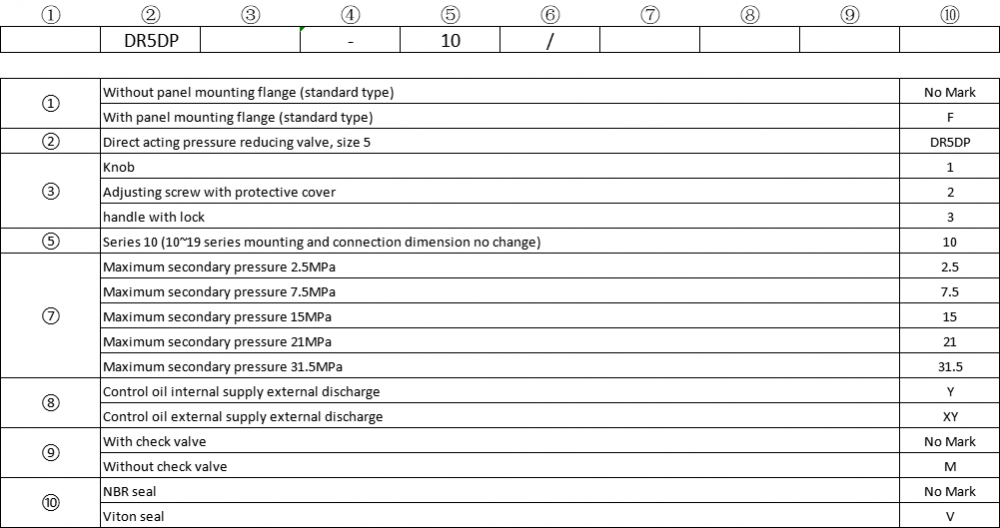

5 pressure ranges

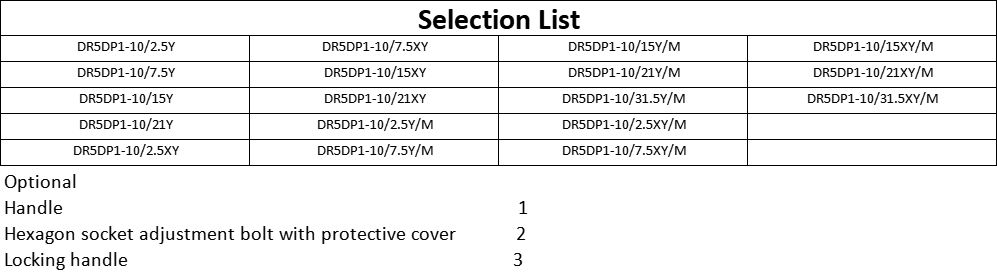

3 joint styles: Knob, Adjusting screw with protective cover, Handle with lock
Optional check valve
Jinhai is professional manufacturer of Various types of Directional Control Valves, Flow Control Valves, Pressure Control Valves and Accessories, Should you have any questions please feel free to come back to us.

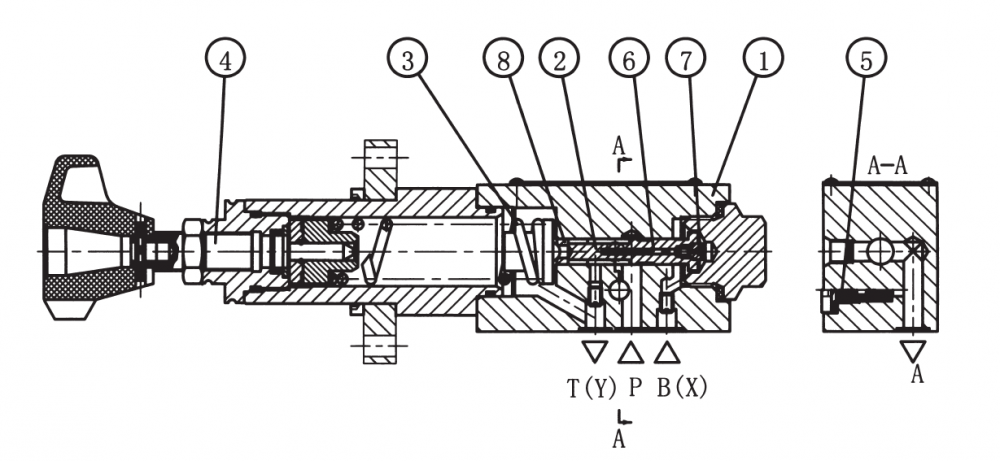

The pressure is set by the pressure regulating element (4).
In the static position, the valve is normally open and oil can flow freely from port P to port A. The pressure of oil port A acts on the end surface of the spool of the compression spring (3) through the control oil circuit (6) and nozzle (7). When the pressure of oil port A reaches the set value of the spring (3), the control spool (2) Move to the control position and keep the pressure at port A constant. The internally supplied control oil is taken from oil port A. Control oil can also be supplied externally via port X. If the pressure of oil port A continues to rise due to external force, the control spool (2) continues to move toward the compression spring (3), which makes the shoulder (8) on the control spool (2) open, redundant The oil flows back to the tank to prevent further pressure rise. The control oil in the spring chamber is returned to the oil tank outside through oil port Y. An optional check valve (5) allows free flow of oil from port A to port P.
