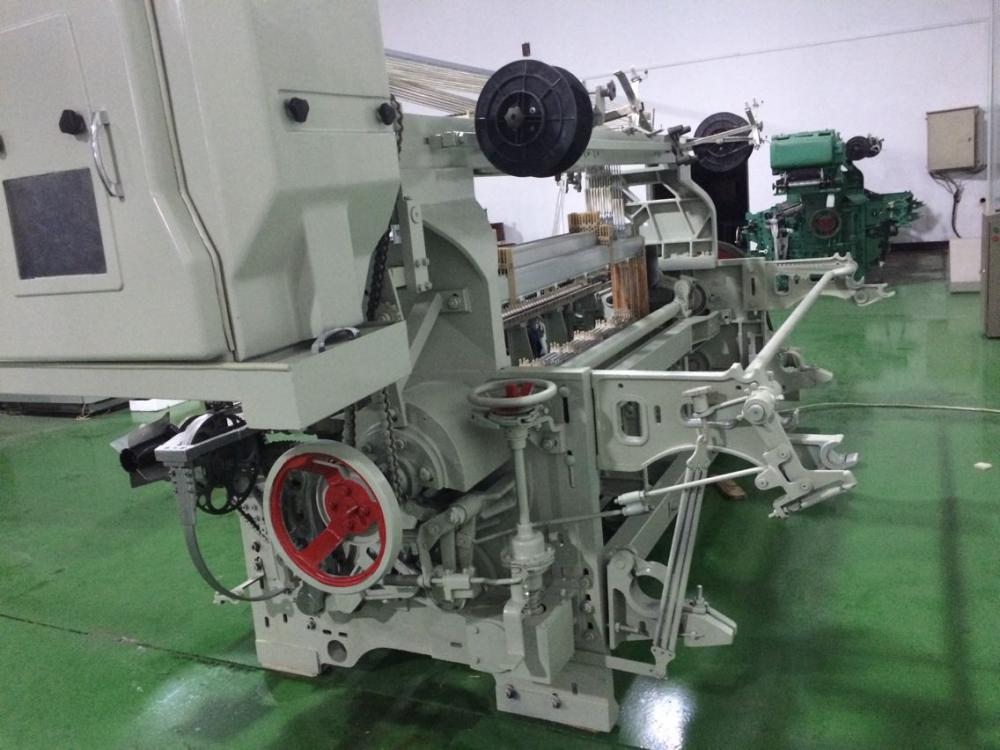

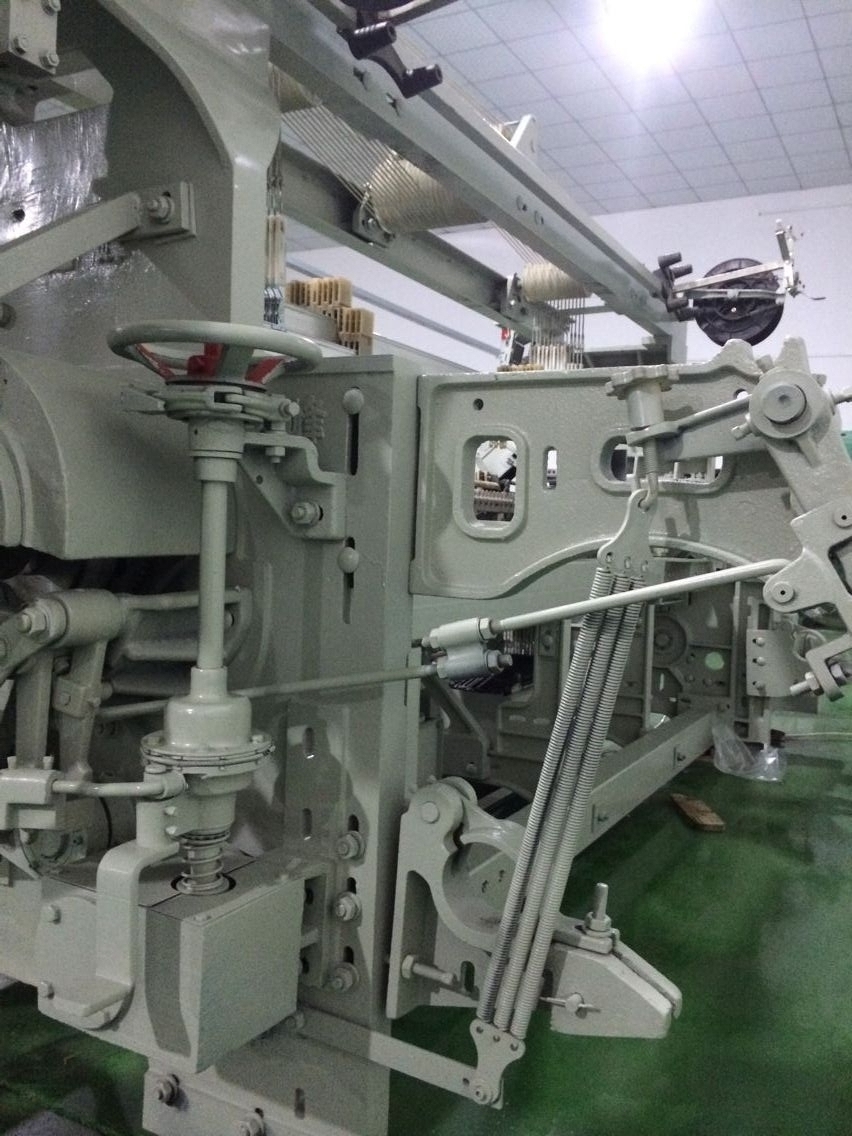

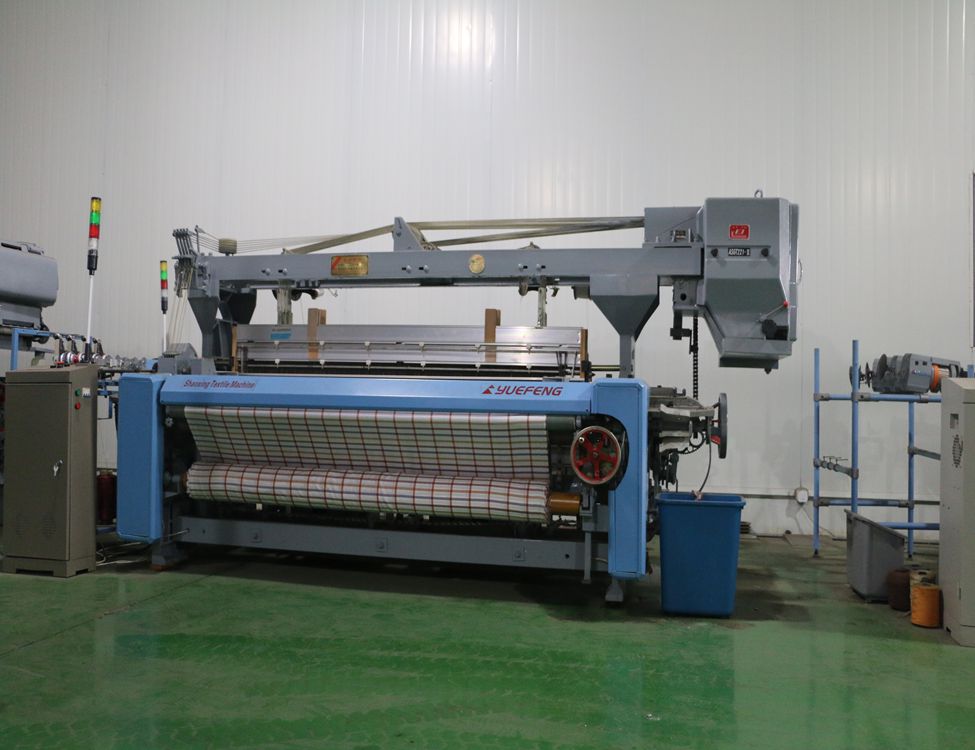

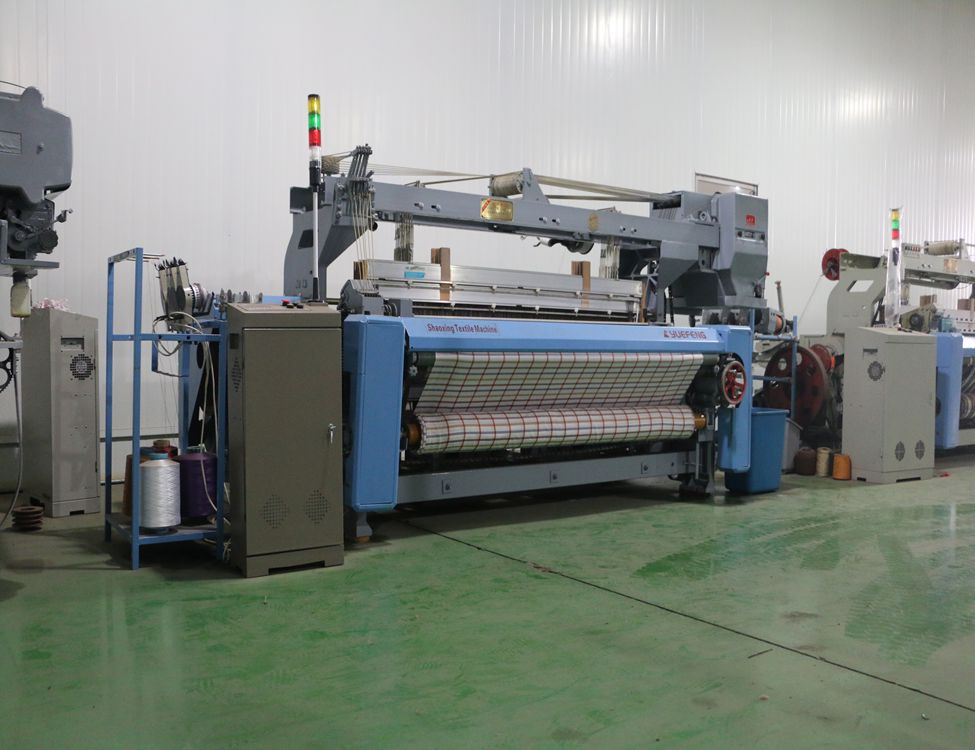

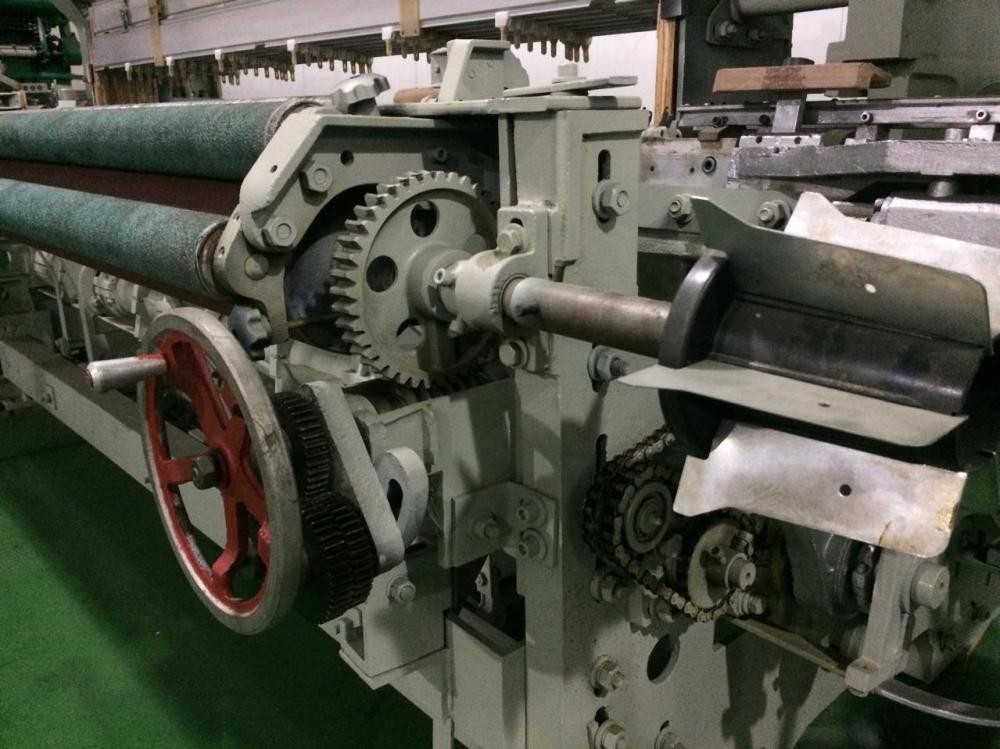

SJ736B SHUTTLESS LOOM MACHINE DOBBY RAPIER LOOM
Registered With A-Tuf Subsidy Scheme in India Textile Department
Features
1, let-off institutions by independent worm gear box, make sure the drive torque.
2, large capacity Takedown device, double the length of drop cloth.
3,Short rocker arm movement, can improve the speed of 25%.
4, plus a large warp beam disc fiber by the amount increased by 30%.
5,Takedown continuous take-up to improve the flatness of the canvas.
6,Short hand linkage beating, to ensure that the beating force.
7, dual pressure cloth roller coiling coiling smooth, uniform tension.
8, bearing shaft standoff, sent by the amount of uniform.
9, Sat link weft ensure the sword so adjusted weft pick weft reliable.
Configuration options:
1. Let off and take up: mechanical/electronic/servo
2. Pick up finding
3. Beam flange: 600mm/680mm/800mm
Parameters
| Shedding device | Upper mechanical dobby with spring forced heald return |
| Beating motion | 4 levers and short levers |
| Let-off motion | Oil bath active let-off mechanism |
| Warp broken stop | Automatic stop by 6-row warp broken sensor |
| Weft broken stop | Automatic stop by weft broken sensor |
| Clolr selection | Dobby/ electronic control , 6 colors |
| Selvage devic | Leno device |
| Loom operation | By control buttons on both sides of loom |
| Electric control | By micro-computer controlled electromagnet clutch and brake |
\
