Gold ore rock Moble diesel engine jaw stone crasher machine

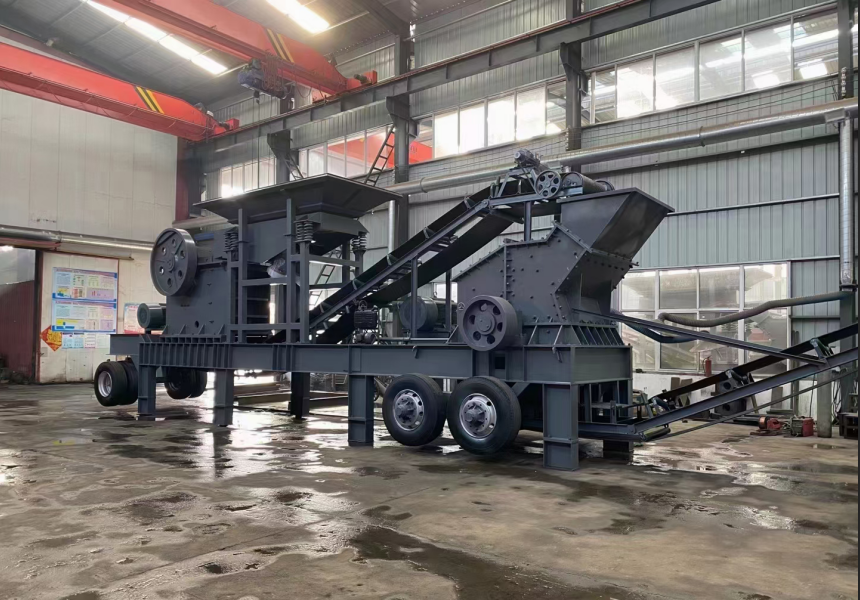

Mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
Mobile crushing plant applications
Mobile crushing plant can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. Can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.
Technical Parameters
|
Model |
Max. Feeding size |
Discharge size |
Capacity |
Motor power |
Weight |
Dimension |
|
Pe150*250 |
125 |
10-40 |
1-3 |
5.5 |
0.7 |
1000*870*990 |
|
Pe250*400 |
210 |
20-60 |
5-20 |
15 |
2.8 |
1300*1090*1270 |
|
Pe400*600 |
340 |
40-100 |
16-60 |
30 |
7 |
1730*1730*1630 |
|
Pe400*900 |
340 |
40-100 |
40-110 |
55 |
7.5 |
1905*2030*1658 |
|
Pe500*750 |
425 |
50-100 |
40-110 |
55 |
12 |
1980*2080*1870 |
|
Pe600*900 |
500 |
65-160 |
50-180 |
75 |
17 |
2190*2206*2300 |
|
Pe750*1060 |
630 |
80-140 |
110-320 |
90 |
31 |
2660*2430*2800 |
|
Pe900*1200 |
750 |
95-165 |
220-450 |
160 |
52 |
3380*2870*3330 |
|
Pe1000*1200 |
850 |
195-265 |
315-500 |
160 |
55 |
3480*2876*3330 |
|
Pex150*750 |
120 |
18-48 |
8-25 |
15 |
3.8 |
1200*1530*1060 |
|
Pex250*750 |
210 |
15-60 |
13-35 |
30 |
6.5 |
1380*1750*1540 |
|
Pex250*1000 |
210 |
15-60 |
16-52 |
37 |
7 |
1560*1950*1390 |
|
Pex250*1200 |
210 |
15-60 |
20-61 |
45 |
9.7 |
2140*2096*1500 |
Working Principle of Jaw Rock Crusher
When a jaw crusher works, the motor starts the belt wheel to drive the centrifugal shaft to rotate. The movable jaw blade suspension shaft gets to and away the fixed shaft periodically, which causes a press, rubbing and grinding, etc. to the raw materials. Crushed stone falls down gradually and are discharged out of the jaw crusher when the particle size meets the requirements.
Delivery of Jaw Rock Crusher
If you are interested in the product, contact 2bvideo.com for more information for more information
