Product details

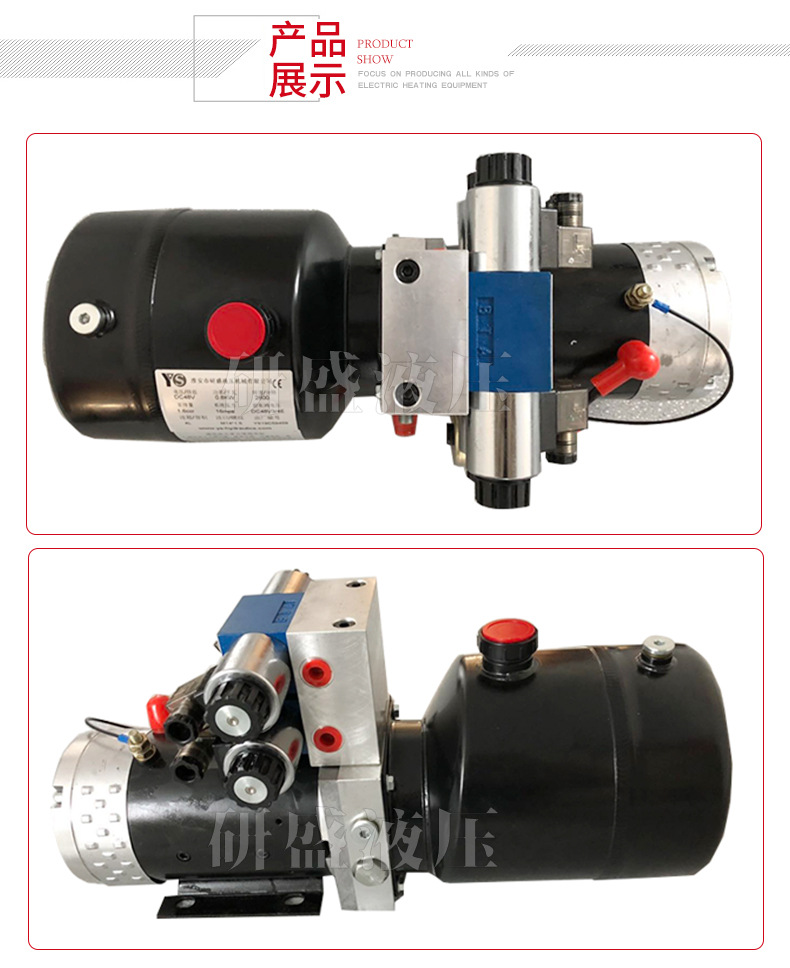

The DC 2 group double-acting DC48V hydraulic power unit is the 1 hydraulic power unit that uses DC power supply. It has two hydraulic circuits, which can realize two-way hydraulic power output.
DC48V means that the input voltage of the hydraulic power unit is 48V DC. The DC power source may be a battery pack, a solar battery pack, a DC grid, etc.
The hydraulic power unit draws the hydraulic oil from the hydraulic oil tank through the electric pump, and controls the flow direction and pressure of the hydraulic oil through the hydraulic valve. The hydraulic oil passes through the hydraulic cylinder or hydraulic motor and other executive components to generate force or torque, so as to realize the drive of the mechanical device.
Double-acting hydraulic circuit means that the hydraulic power unit can realize the extension of the hydraulic cylinder and the retraction of the hydraulic cylinder. In the hydraulic power unit, the flow direction of the hydraulic oil can be controlled by the hydraulic valve, so that the two chambers of the hydraulic cylinder are respectively connected with the hydraulic oil tank or the oil circuit, so as to realize the extension and retraction of the hydraulic cylinder.
The DC48V hydraulic power unit is widely used in engineering machinery, agricultural machinery, ships, aerospace and other fields. It is used to drive hydraulic cylinders, hydraulic motors and other actuators to realize the movement and control of mechanical devices.
(More hydraulic accessories)(More hydraulic power unit)
Welcome to consult and visit our company
Huaian Yansheng Hydraulic Co., Ltd.

Power Voltage	AC110, AC220, AC380, DC12V, DC24V or customized
Moter Power	0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw or customized
Pump Displacement	0.45ml/r, 0.75ml/r, 1.0ml/r, 1.6ml/r, 2.0ml/r, 2.5ml/r, 3.3ml/r, 4.2ml/r,5.8 ml/r or customized
Solenoid Valve Voltage	DC12V, DC24V, AC24V, AC110V, AC220V, manual valve
Mounting Way	Horizontal, Vertical
Mounting position	Valve block, bracket, oil tank, electric motor
System Pressure	10mpa, 16mpa, 20mpa, 25mpa
Capacity of tank	1.7L, 2.8L, 3.6L, 5.0L, 6.0L, 8.0L, 10.0L, 12.0L or customized
Circuit	01-20
Port	3/8" (BSPP/NPT) or customized
Working	Continute working, short time working
Frequency	50HZ, 60HZ

Advantages of our DC Hydraulic Power Unit

1、Easy to operate
It has the characteristics of convenient installation, simple operation and stable operation.

2、valve block
High precision valve block, No burr,large flow discharge oil.

3、Careful selection of materials
Selection of shaft sleeve, internal high-strength gear

Double Acting DC Hydraulic Power Unit Application display

Suitable for electric forklifts, electric stackers, dump trucks, electric sanitation vehicles, lifts,

motorcycle lifts,car tailgates, electric pallet trucks, lifting platforms, aerial work platforms,

electric basketball stands, boarding bridges, etc.
