Razor barbed wire is a widely used security material with sharp razor barbs that is often installed at the top of fences or walls to prevent intruders from climbing, or it can be placed freestanding to form a barrier that is difficult to cross.
Material：High tensile strength iron wire, or stainless steel wire
Wire Diamtere：2.5 mm
Common Blade Type: BTO-22, CBT-65
Coil diamater: 450 - 960mm
Coil Type: sigle coil type, cross coil type
| Blade Types & Specification | ||||||
|
Blade Type |
Blade Style | Blade Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-12 |
|
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 |
|
0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 |
|
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 |
|
0.5+0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 |
|
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 |
|
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |
|
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Concertina Coil Diameter & Specification
Coil Diameter
Coil quantity
Covering length (m)
Razor Wire Types
Coil Types
450 mm
33
7-8
CBT-60,CBT-65
single coil
500 mm
56
12-13
CBT-60,CBT-65
single coil
700 mm
56
13-14
CBT-60,CBT-65
single coil
960 mm
56
14-15
CBT-60,CBT-65
single coil
450 mm
56
8-9 (3 clips)
BTO-10.12.18.22.28.30
crossed type
500 mm
56
9-10 (3 clips)
BTO-10.12.18.22.28.30
crossed type
600 mm
56
10-11 (3 clips)
BTO-10.12.18.22.28.30
crossed type
600 mm
56
8-10(5 clips)
BTO-10.12.18.22.28.30
crossed type
700 mm
56
8-10(5 clips)
BTO-10.12.18.22.28.30
crossed type
800 mm
56
11-13 (5 clips)
BTO-10.12.18.22.28.30
crossed type
900 mm
56
12-14 (5 clips)
BTO-10.12.18.22.28.30
crossed type
960 mm
56
13-15 (5 clips)
BTO-10,12.18,22,28.30
crossed type

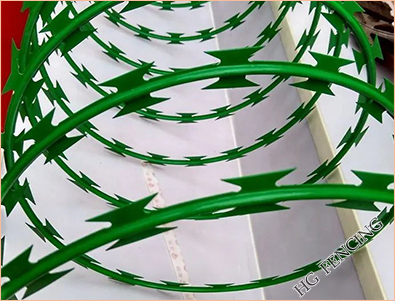

1. According to the different surface treatment, Razor Barbed Wire can be divided into galvanised razor barbed wire and plastic coated razor barbed wire.

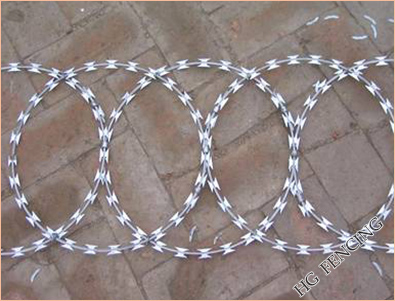

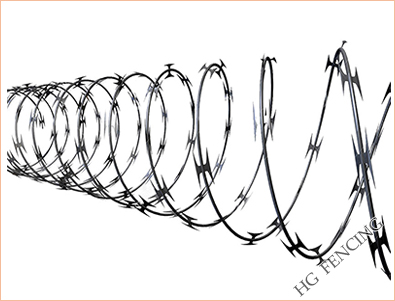

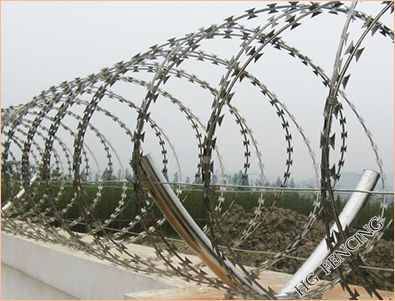

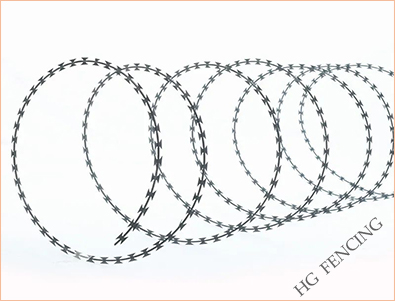

2. According to the different structure, Razor Barbed Wire can be divided into single coil concertina wire and crossed type concertina wire.

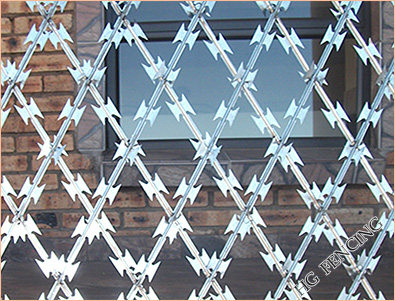

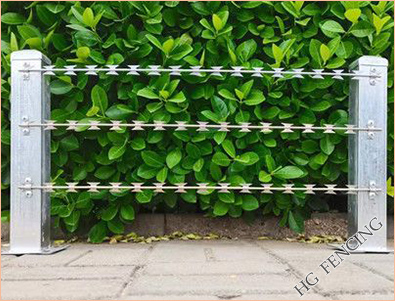

3. Other types of Razor Barbed Wire, including flat razor wire, straight razor wire, razor wire fence etc.

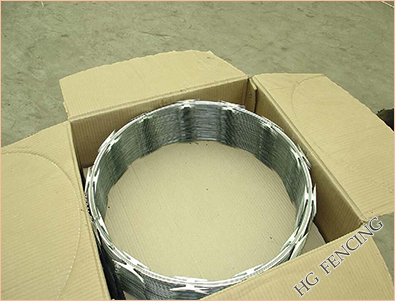

There are two ways to pack the razor barbed wire, one way is to pack it in a woven bag and finally pack it with iron bundling tape. The other way is to put the razor barbed wire in a cardboard box.

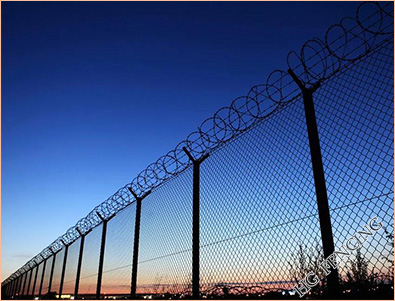

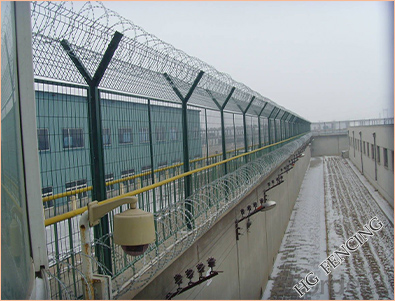

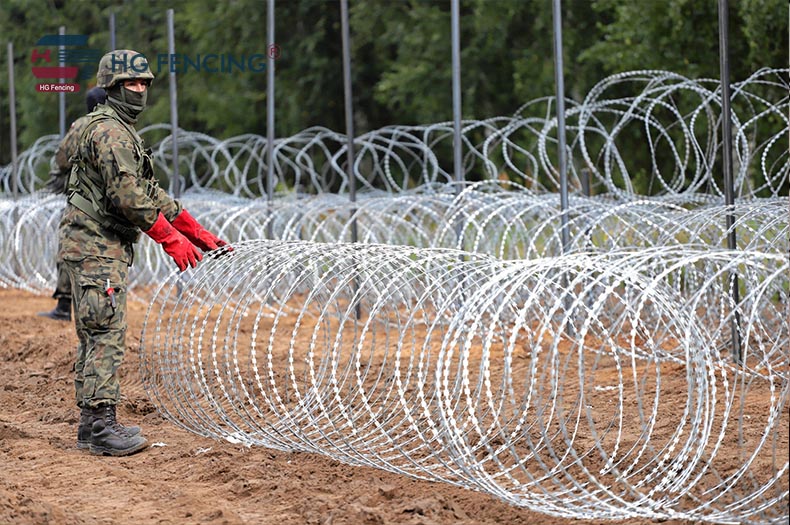

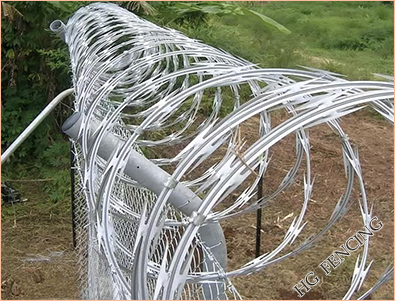

Razor barbed wire is widely used in airports, prisons, military bases, battlefields and other high-security protection places due to its unique structure. It can also be used for perimeter protection of residences and factories.
If you are interested in the product, contact 2bvideo.com for more information for more information
