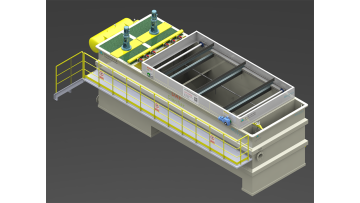

HIGH EFFICIENCY DISSOLVED AIR FLOTATION
High efficiency,small footprint,small bubbles,good effluent,less mud production,fully automatic operation
PRODUCT ADVANTAGES
Small bubbles:Bubble size less than 10um,compared to about 50um for conventional air flotation
High efficiency:Dissolving and outgassing efficiency is over 95%,compared to about 80%for conventional air flotation.
Less mud production:The solids content of floating slag is greater than 2%,compared to about 0.5%in traditional air flotation,reducing mud production by more than 4times.
Good effluent:the suspended solids content of the effluent can be less than 20mg/L ventional air
Saving in land area:the surface hydraulic load can reach 10㎥/(㎡·h),compared with less than 5㎥(㎡·h)for traditional air floatation,which can save more than twice the land area.
One-touch start-up,unattended,allows for cloud-based digital services flotation.
The pressure-bearing body of the equipment is made by the overall laser cutting,stamping and bending process.
High strength.
Good rigidity.
No dead space on the surface of the panels.Easy to use for corrosion protection and other advantages.
DEVICE PARAMETERS
|
Model |
Capacity(㎥H) |
Tank size(mm) |
Empty weight(T) |
Full weight(T) |
Return pump(kW) |
Air compressor(kw) |
Slag discharger(kW) |
Mixer1(kW) |
Mixer2(kW) |
Installed power(kW) |
|
FYY-DAF5 |
5 |
2800*1000*2200 |
3.50 |
8.00 |
3.00 |
0.55 |
0.10 |
0.55 |
0.55 |
4.75 |
|
FYY-DAF10 |
10 |
3200*1200*2200 |
4.00 |
12.50 |
3.00 |
0.55 |
0.10 |
0.55 |
0.55 |
4.75 |
|
FYY-DAF25 |
25 |
5000*1500*2500 |
5.50 |
21.00 |
3.70 |
0.75 |
0.10 |
0.55 |
0.55 |
5.65 |
|
FYY-DAF50 |
50 |
6500*2000*2500 |
7.00 |
36.50 |
5.50 |
1.50 |
0.20 |
0.75 |
0.55 |
8.50 |
|
FYY-DAF80 |
80 |
7600*2600*2600 |
9.00 |
55.00 |
7.50 |
1.50 |
0.20 |
0.75 |
0.55 |
8.50 |
|
FYY-DAF100 |
100 |
8300*3000*2600 |
12.50 |
70.00 |
11.00 |
2.20 |
0.40 |
1.50 |
1.10 |
16.20 |
|
FYY-DAF150 |
150 |
10000*3600*2850 |
16.00 |
110.00 |
15.00 |
3.00 |
0.40 |
1.50 |
1.10 |
21.00 |
|
FYY-DAF200 |
200 |
16800*3000*3100 |
26.00 |
160.00 |
18.50 |
4.00 |
0.80 |
1.50 |
1.10 |
25.90 |
|
FYY-DAF300 |
300 |
17600*3800*3100 |
30.00 |
220.00 |
30.00 |
4.00 |
0.80 |
2.20 |
1.50 |
38.50 |
PRODUCT DETAILS

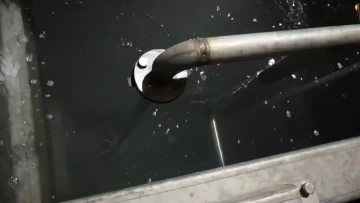

DISSOLVED AIR SYSTEM
AIR COMPRESSOR
FILTRATION SYSTEM
MULTI-INDUSTRY APPLICATION
Petrochemical industry Biological fermentation industry Food
Pharmaceutical industry Electronic industry Power plants
Chemical fiber industry Breeding industry Kitchen waste treatment
PRODUCT SYSTEM SCHEMATIC

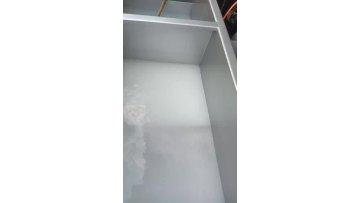

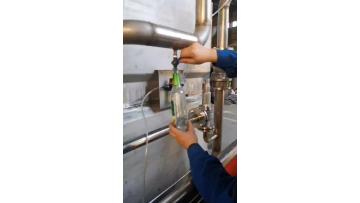

Product real shot display
Products real shot
ADVANTAGES OF THE ENTERPRISE
Focus on design,development,and manufacture of water/wastewater treatment equipment
Professional technical team Patented technologies Customized design
Quality-certified manufacturing base Reassuring after-sales service Excellent management
ENGINEERING CASE
AUTHORIZED CERTIFICATION
MAKE BETTER PRODUCTS WITH A RESPONSIBLE ATTITUDE
COOPERATIVE ENTERPRISES AND RESEARCH INSTITUTIONS
LOGISTICS TRANSPORTATION
FAQ
Q1How contact and purchase?
A:Please provide the source,characteristic,and flow rate of the target water/wastewater,as well as the area.
Q2How to pay?
A:Both TT and L/C are acceptable,and TT is the priority.The deposit is 30%and the rest 70%before TT loading.
Q3What is the delivery time?
A:It depends on the order size,generally between 4to 6weeks.
Q4What is the manner of packing?
A:Standard packaging is normally adopted.We will satisfy the special packing requirements as you required,yet the extra cost will be on your side.
Q5How to protect equipment from corrosion?
A:The anti-corrosion coating process was used with the standard process.
Q6How to manufacture equipment?
A:Manufacturing processes include laser/plasma cutting,automatic welding,NC cutting,and bending.
Q7How to install the equipment?
A:A specification with illustrations will be provided with the equipment.
Field installation service is available,yet the cost of visa fees,tickets,accommodation,and wages will be paid by the buyer.
